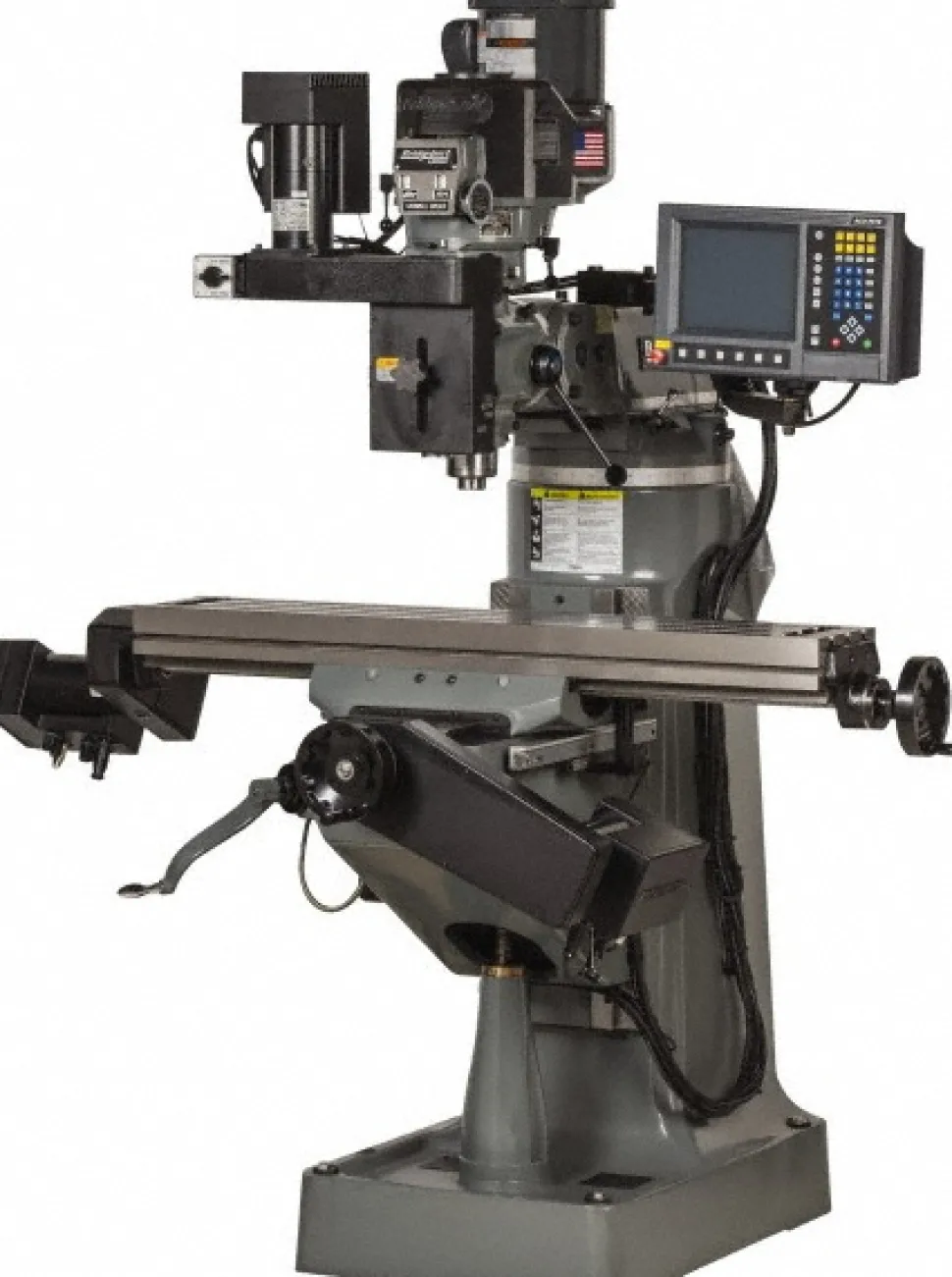

9″ x 49″ CNC Milling Machine: Bridgeport Millpower, 220V & 440V
122,99 $
Specifications
| CNC Controller Brand: Bridgeport | CNC Controller Model: Millpower |
| Spindle Speed Control: Variable Speed Pulley | Table Length (Inch): 49 |
| Table Width (Inch): 9 | Phase: Three |
| Longitudinal Travel (Inch): 36 | Longitudinal Travel (Decimal Inch): 36.0000 |
| Cross Travel (Decimal Inch): 12.0000 | Knee Travel (Inch): 16 |
| Maximum Spindle Speed (RPM): 4200.00 | Spindle Travel Length (Decimal Inch): 5.0000 |
| Spindle Travel Length (Inch): 5 | Spindle Taper Size: R8 |
| Quill Diameter (Inch): 3-3/8 | Maximum Spindle to Table Distance (Inch): 18-1/4 |
| Number Of T-slots: 3 | Left-Hand Head Tilt (Degrees): 90.00 |
| Right-Hand Head Tilt (Degrees): 90.00 | Backward Head Tilt (Degrees): 40.00 |
| Forward Head Tilt (Degrees): 45.00 | Ram Travel Length (Decimal Inch): 12.0000 |
| Ram Travel Length (Inch): 12 | Positioning Accuracy (Decimal Inch): 0.0008 |
| Positioning Repeatability (Decimal Inch): 0.0005 | Voltage: 220V; 440V |
| Horsepower: 3.00 | Overall Height (Inch): 81-5/8 |
| UNSPSC Code: 23241500 | Includes: Acu-Rite MILLPWR G2 Controller (MSC 92499730) |
| Spindle Power Feed Rate Per Minute (mm): 100 (Z-Axis) (Max) | Table Load Capacity (Lb.): 750.00 |
| Country of Origin: VARIOUS | |
| CNC Controller Brand: Bridgeport | |
| CNC Controller Model: Millpower | |
| Spindle Speed Control: Variable Speed Pulley | |
| Table Length (Inch): 49 | |
| Table Width (Inch): 9 | |
| Phase: Three | |
| Longitudinal Travel (Inch): 36 | |
| Longitudinal Travel (Decimal Inch): 36.0000 | |
| Cross Travel (Decimal Inch): 12.0000 | |
| Knee Travel (Inch): 16 | |
| Maximum Spindle Speed (RPM): 4200.00 | |
| Spindle Travel Length (Decimal Inch): 5.0000 | |
| Spindle Travel Length (Inch): 5 | |
| Spindle Taper Size: R8 | |
| Quill Diameter (Inch): 3-3/8 | |
| Maximum Spindle to Table Distance (Inch): 18-1/4 | |
| Number Of T-slots: 3 | |
| Left-Hand Head Tilt (Degrees): 90.00 | |
| Right-Hand Head Tilt (Degrees): 90.00 | |
| Backward Head Tilt (Degrees): 40.00 | |
| Forward Head Tilt (Degrees): 45.00 | |
| Ram Travel Length (Decimal Inch): 12.0000 | |
| Ram Travel Length (Inch): 12 | |
| Positioning Accuracy (Decimal Inch): 0.0008 | |
| Positioning Repeatability (Decimal Inch): 0.0005 | |
| Voltage: 220V; 440V | |
| Horsepower: 3.00 | |
| Overall Height (Inch): 81-5/8 | |
| UNSPSC Code: 23241500 | |
| Includes: Acu-Rite MILLPWR G2 Controller (MSC 92499730) | |
| Spindle Power Feed Rate Per Minute (mm): 100 (Z-Axis) (Max) | |
| Table Load Capacity (Lb.): 750.00 | |
| Country of Origin: VARIOUS |
| MSC# | 07116171 |
| Mfr# | 948BPT3AXMILPWR |
| Big Book# | 1527 |
