Sale!

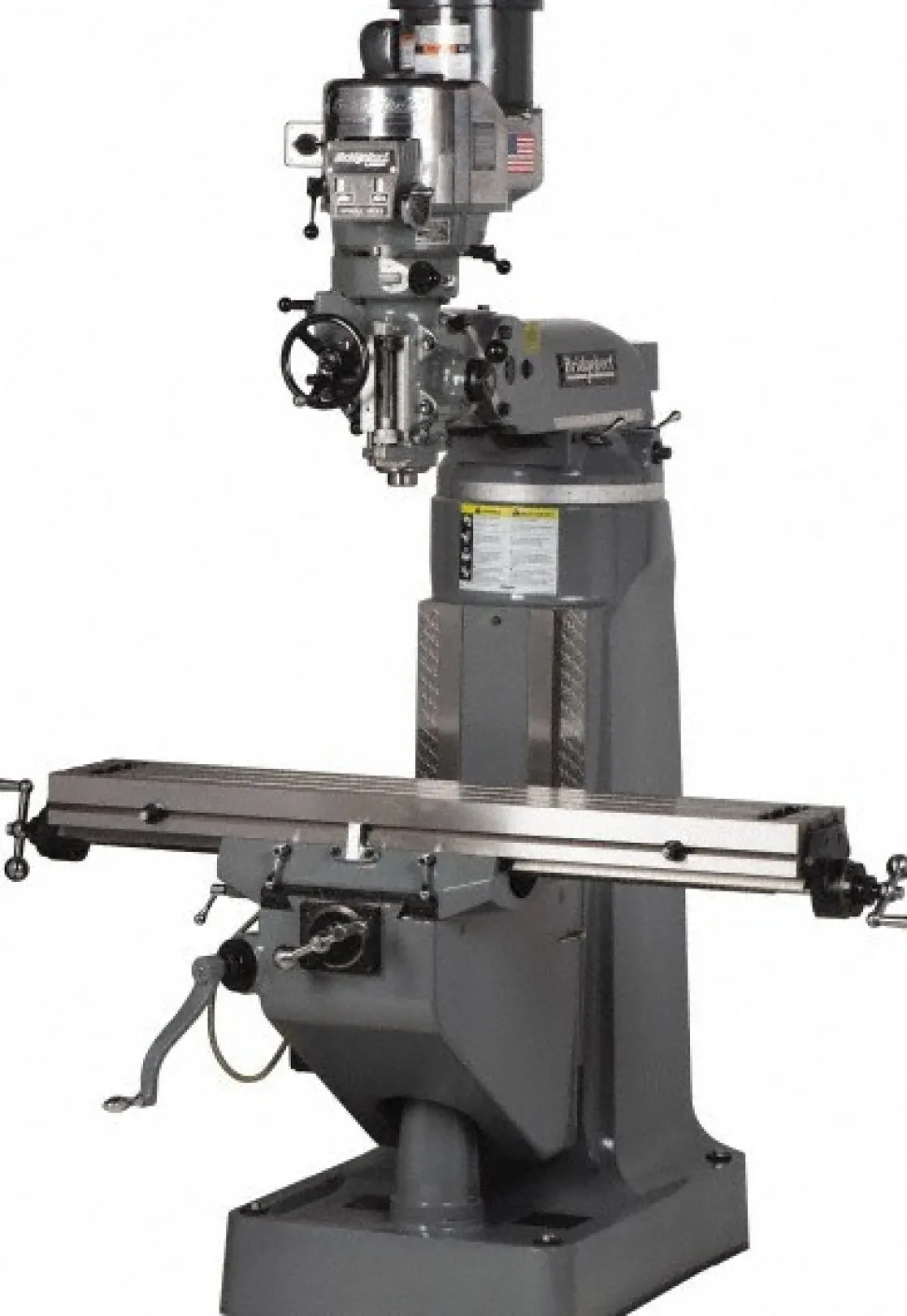

9 x 49″ Knee Milling Machine: 2.00 hp, Variable Speed Pulley, Three Phase

Original price was: 27 028,00 $.Current price is: 122,89 $.

SKU: SKU08rtGsIpTB Categories: Machinery, Milling Machines, Shop All Products Tag: Bridgeport Brand: Bridgeport

Description
Reviews (0)

Specifications

Minimum Spindle to Column Distance (Decimal Inch): 6.7500	Minimum Spindle to Column Distance (Inch): 6-3/4
Minimum Spindle to Column Distance (mm): 64.00	Minimum Spindle to Table Distance (Decimal Inch): 3.0000
Minimum Spindle to Table Distance (Inch): 3	Maximum Spindle to Table Distance (mm): 463.55
Maximum Spindle to Table Distance (Decimal Inch): 18.2500	Table Length (Inch): 49
Minimum Spindle Speed: 60	Table Width (Inch): 9
Maximum Spindle Speed (RPM): 4200	Forward Head Tilt (Degrees): 45.00
Phase: Three	Backward Head Tilt (Degrees): 45.00
Left-Hand Head Tilt (Degrees): 90.00	Left-hand Head Tilt: 90
Right-Hand Head Tilt (Degrees): 90.00	Right-hand Head Tilt: 90
Cross Travel (Decimal Inch): 12.0000	Cross Travel: 12 in
Longitudinal Travel: 36 in	Longitudinal Travel (Decimal Inch): 36.0000
Knee Travel (Decimal Inch): 16.0000	Knee Travel: 16 in
Quill Diameter (Inch): 3-3/8	Quill Diameter (mm): 85.73
Quill Diameter (Decimal Inch): 3.3750	Horsepower: 2.00
Voltage: 460V; 208V	Table Load Capacity (kg): 340.19
Table Load Capacity (Lb.): 750.00	Ram Travel Length (Decimal Inch): 12.0000
Ram Travel Length (mm): 304.80	Ram Travel Length (Inch): 12
Spindle Speed Control: Variable Speed Pulley	Spindle Taper Size: R8
Spindle Travel Length (mm): 127.00	Spindle Travel Length (Decimal Inch): 5.0000
Spindle Travel Length (Inch): 5	Number Of T-slots: 3
Overall Height (Decimal Inch): 86.0000	Overall Height (Inch): 86
Overall Length (Inch): 60	Overall Length (Decimal Inch): 60.0000
UNSPSC Code: 23242503	Overall Depth (Inch): 61
Overall Depth (Decimal Inch): 61.0000	Maximum Spindle To Column Distance (Inch): 18-3/4
Country of Origin: UNITED STATES
Minimum Spindle to Column Distance (Decimal Inch): 6.7500
Minimum Spindle to Column Distance (Inch): 6-3/4
Minimum Spindle to Column Distance (mm): 64.00
Minimum Spindle to Table Distance (Decimal Inch): 3.0000
Minimum Spindle to Table Distance (Inch): 3
Maximum Spindle to Table Distance (mm): 463.55
Maximum Spindle to Table Distance (Decimal Inch): 18.2500
Table Length (Inch): 49
Minimum Spindle Speed: 60
Table Width (Inch): 9
Maximum Spindle Speed (RPM): 4200
Forward Head Tilt (Degrees): 45.00
Phase: Three
Backward Head Tilt (Degrees): 45.00
Left-Hand Head Tilt (Degrees): 90.00
Left-hand Head Tilt: 90
Right-Hand Head Tilt (Degrees): 90.00
Right-hand Head Tilt: 90
Cross Travel (Decimal Inch): 12.0000
Cross Travel: 12 in
Longitudinal Travel: 36 in
Longitudinal Travel (Decimal Inch): 36.0000
Knee Travel (Decimal Inch): 16.0000
Knee Travel: 16 in
Quill Diameter (Inch): 3-3/8
Quill Diameter (mm): 85.73
Quill Diameter (Decimal Inch): 3.3750
Horsepower: 2.00
Voltage: 460V; 208V
Table Load Capacity (kg): 340.19
Table Load Capacity (Lb.): 750.00
Ram Travel Length (Decimal Inch): 12.0000
Ram Travel Length (mm): 304.80
Ram Travel Length (Inch): 12
Spindle Speed Control: Variable Speed Pulley
Spindle Taper Size: R8
Spindle Travel Length (mm): 127.00
Spindle Travel Length (Decimal Inch): 5.0000
Spindle Travel Length (Inch): 5
Number Of T-slots: 3
Overall Height (Decimal Inch): 86.0000
Overall Height (Inch): 86
Overall Length (Inch): 60
Overall Length (Decimal Inch): 60.0000
UNSPSC Code: 23242503
Overall Depth (Inch): 61
Overall Depth (Decimal Inch): 61.0000
Maximum Spindle To Column Distance (Inch): 18-3/4
Country of Origin: UNITED STATES
