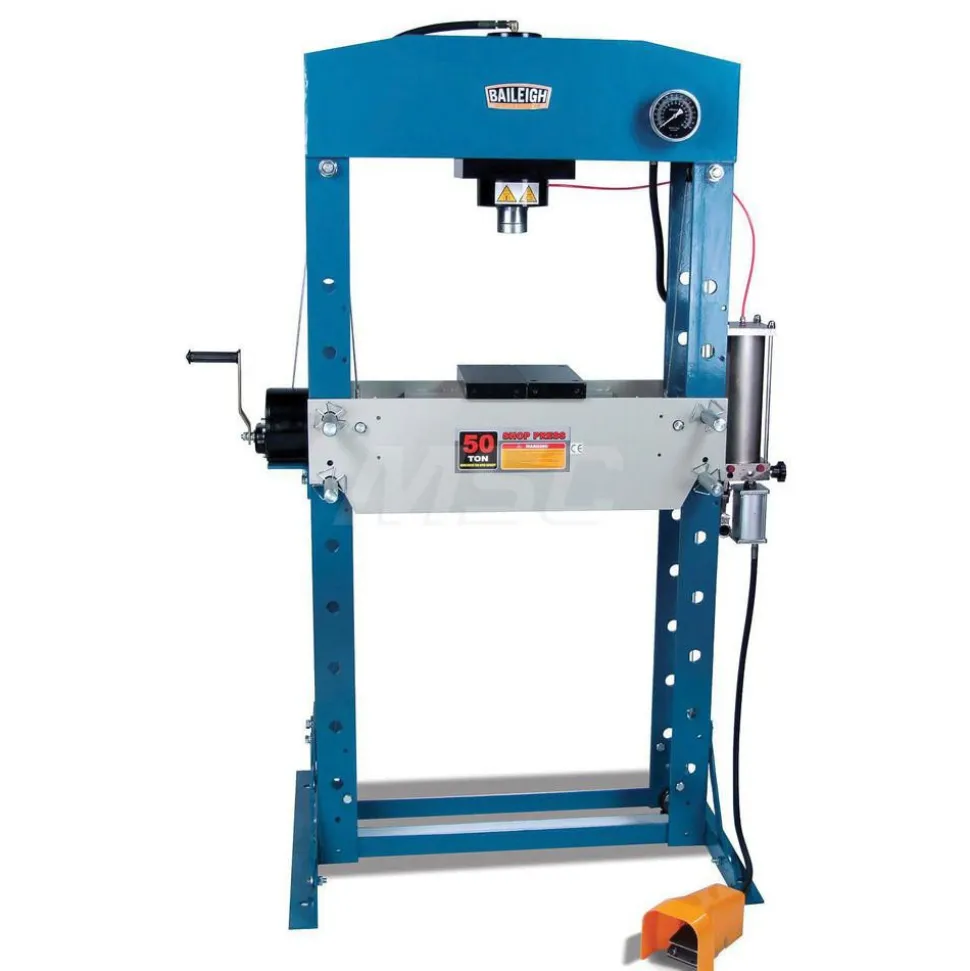

Air/Hand Shop Press: 7.8″ Stroke

122,99 $

SKU: SKUiFq163PU4r Categories: Machinery, Metal Forming & Cutting Machines, Shop All Products Tag: Baileigh Brand: Baileigh

Description
Reviews (0)

Specifications

Power Type: Manual; Air	Pressure (Ton): 50
Stroke (Decimal Inch): 7.8000	Minimum Ram to Table (Inch): 2-5/8
Maximum Ram to Table (Inch): 31-1/4	Ram Return Operation: Control Lever
Distance Between Uprights (Inch): 28-3/4	Base Length (Inch): 31-1/2
Ram Size: 2.0000 in	Ram Size (Inch): 2
Table Length (Decimal Inch): 10.1250	Screw Travel (Inch): 5-7/8
Table Depth (Inch): 35-13/16	Table Length (Inch): 10-1/8
Cylinder Type: Single Acting	Hydraulic Oil Included: Yes
Overall Height: 73.8600 in	Overall Height (Inch): 73-7/8
Overall Length (Inch): 84	Overall Length: 84.0000 in
Features: Comes Standard With A Set Of V-Blocks	Standards: California Proposition 66
Style: H-Frame	Base Width/Diameter (Inch): 40-3/4
Overall Depth (Inch): 84	UNSPSC Code: 23251500
Country of Origin: China
Power Type: Manual; Air
Pressure (Ton): 50
Stroke (Decimal Inch): 7.8000
Minimum Ram to Table (Inch): 2-5/8
Maximum Ram to Table (Inch): 31-1/4
Ram Return Operation: Control Lever
Distance Between Uprights (Inch): 28-3/4
Base Length (Inch): 31-1/2
Ram Size: 2.0000 in
Ram Size (Inch): 2
Table Length (Decimal Inch): 10.1250
Screw Travel (Inch): 5-7/8
Table Depth (Inch): 35-13/16
Table Length (Inch): 10-1/8
Cylinder Type: Single Acting
Hydraulic Oil Included: Yes
Overall Height: 73.8600 in
Overall Height (Inch): 73-7/8
Overall Length (Inch): 84
Overall Length: 84.0000 in
Features: Comes Standard With A Set Of V-Blocks
Standards: California Proposition 66
Style: H-Frame
Base Width/Diameter (Inch): 40-3/4
Overall Depth (Inch): 84
UNSPSC Code: 23251500
Country of Origin: China
