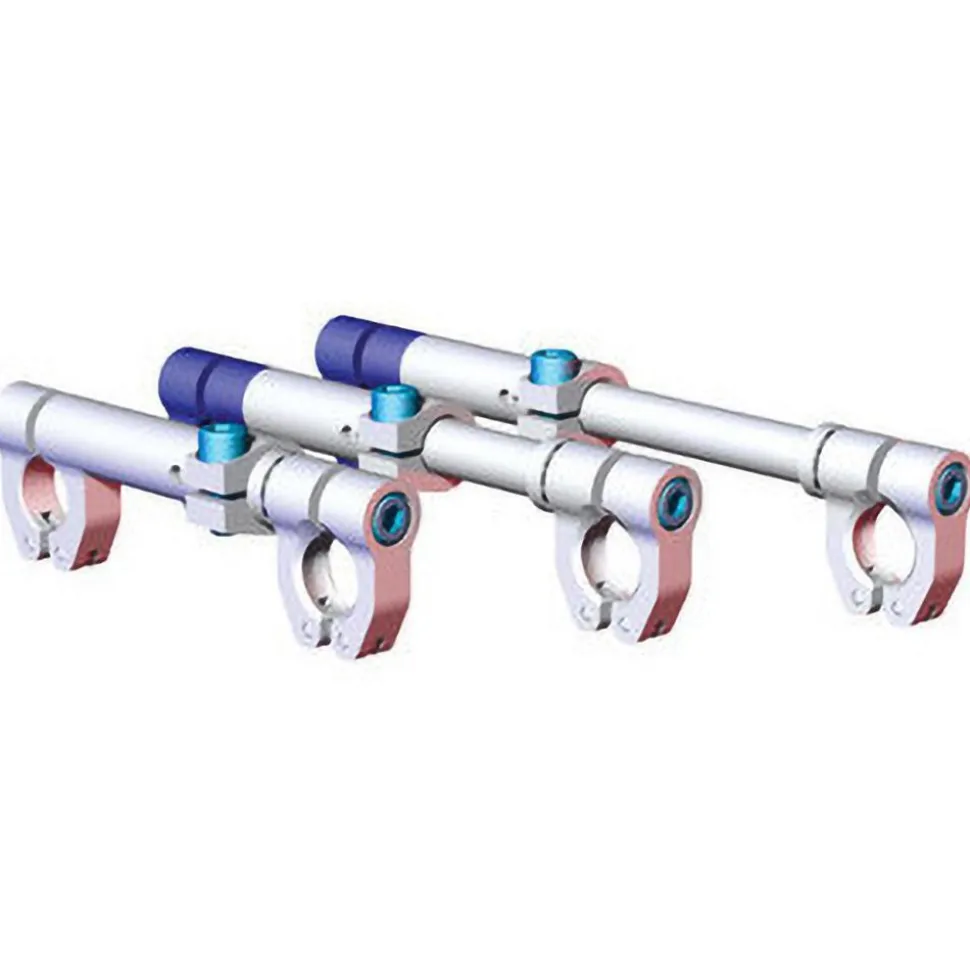

Aluminum Fixed Arm Round Tooling Swivel Arm
125,99 $
Specifications
| Round Tooling Product Type: Swivel Arm | Swivel Arm Type: Fixed |
| System Of Measurement: Metric; Imperial | Compatible Tube Diameter (mm): 40 |
| Component Material: Cast Aluminum | Overall Length (mm): 194-3/10 |
| Overall Length (Decimal Inch): 7.6500 | Overall Height (Inch): 3-43/100 |
| Overall Height (mm): 87-1/10 | Overall Width (mm): 25-2/5 |
| Linear Extension (Decimal Inch): 5.9700 | Linear Extension (mm): 151-16/25 |
| Maximum Clamp Load (Ft/Lb): 200 | Maximum Clamp Load (N/m): 271 |
| Component Weight (kg): 11/25 | Component Weight (Lb.): 97/100 |
| Finish: Silver | Nominal Inside Diameter (mm): 40 |
| Centerline to Centerline (Decimal Inch): 5-3/4 | Centerline to Centerline (mm): 146 |
| Overall Length (Inch): 7-13/20 | Overall Width (Inch): 1 |
| Transition Diameter 2 (Decimal Inch): 3/4 | Compatible Tube Diameter (Decimal Inch): 1-1/2 |
| Transition Diameter 1 (Decimal Inch): 1-1/2 | Nominal Inside Diameter: 1-1/2 |
| Type: Standard Swivel Arm | Special Item Information: 360° of Rotational Adjustments; 3 Axis |
| UNSPSC Code: 20121429 | |
| Round Tooling Product Type: Swivel Arm | |
| Swivel Arm Type: Fixed | |
| System Of Measurement: Metric; Imperial | |
| Compatible Tube Diameter (mm): 40 | |
| Component Material: Cast Aluminum | |
| Overall Length (mm): 194-3/10 | |
| Overall Length (Decimal Inch): 7.6500 | |
| Overall Height (Inch): 3-43/100 | |
| Overall Height (mm): 87-1/10 | |
| Overall Width (mm): 25-2/5 | |
| Linear Extension (Decimal Inch): 5.9700 | |
| Linear Extension (mm): 151-16/25 | |
| Maximum Clamp Load (Ft/Lb): 200 | |
| Maximum Clamp Load (N/m): 271 | |
| Component Weight (kg): 11/25 | |
| Component Weight (Lb.): 97/100 | |
| Finish: Silver | |
| Nominal Inside Diameter (mm): 40 | |
| Centerline to Centerline (Decimal Inch): 5-3/4 | |
| Centerline to Centerline (mm): 146 | |
| Overall Length (Inch): 7-13/20 | |
| Overall Width (Inch): 1 | |
| Transition Diameter 2 (Decimal Inch): 3/4 | |
| Compatible Tube Diameter (Decimal Inch): 1-1/2 | |
| Transition Diameter 1 (Decimal Inch): 1-1/2 | |
| Nominal Inside Diameter: 1-1/2 | |
| Type: Standard Swivel Arm | |
| Special Item Information: 360° of Rotational Adjustments; 3 Axis | |
| UNSPSC Code: 20121429 |
| MSC# | 50134121 |
| Mfr# | CPI-600-15-SA |
