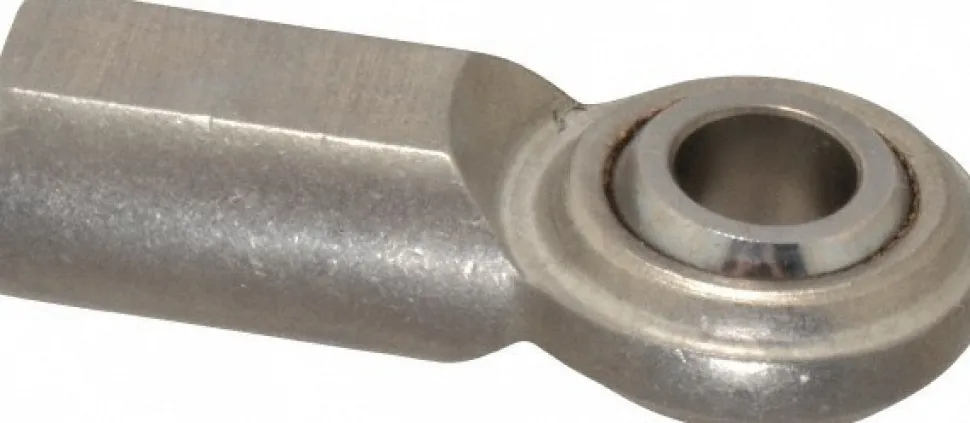

Ball Joint Linkage Spherical Rod End: 1/2-20″ Shank Thread, 1/2″ Rod ID, 1-5/16″ Rod OD, 0.875″ Shank Dia, 1.062″ Shank Length, 4,720 lb Static Load Capacity
28,89 $
Specifications
| Rod End Type: Ball Joint Linkage | Style: Plain Female Rod End |
| Maximum Outside Diameter (Inch): 1-5/16 | Maximum Static Load Capacity: 4720.0 |
| Width (Inch): 5/8 | Shank Diameter (Decimal Inch): 0.8750 |
| Thread Size: 1/2-20 | Shank Diameter: 0.2362 |
| Shank Length (Decimal Inch): 1.0620 | Housing Material: Stainless Steel |
| Gender: Female | Thread Direction: Right Hand |
| Bore Diameter (Inch): 1/2 | Bore Diameter (Decimal Inch): 0.5000 |
| Static Load Capacity: 4720.00 | Raceway Material: Stainless Steel |
| Ball Material: Stainless Steel | Maximum Ball Swivel: 20 |
| Thread Length (Decimal Inch): 1.0620 | Overall Thickness (Decimal Inch): 0.7500 |
| Lubricant Type: PTFE | UNSPSC Code: 31171508 |
| Rod End Type: Ball Joint Linkage | |
| Style: Plain Female Rod End | |
| Maximum Outside Diameter (Inch): 1-5/16 | |
| Maximum Static Load Capacity: 4720.0 | |
| Width (Inch): 5/8 | |
| Shank Diameter (Decimal Inch): 0.8750 | |
| Thread Size: 1/2-20 | |
| Shank Diameter: 0.2362 | |
| Shank Length (Decimal Inch): 1.0620 | |
| Housing Material: Stainless Steel | |
| Gender: Female | |
| Thread Direction: Right Hand | |
| Bore Diameter (Inch): 1/2 | |
| Bore Diameter (Decimal Inch): 0.5000 | |
| Static Load Capacity: 4720.00 | |
| Raceway Material: Stainless Steel | |
| Ball Material: Stainless Steel | |
| Maximum Ball Swivel: 20 | |
| Thread Length (Decimal Inch): 1.0620 | |
| Overall Thickness (Decimal Inch): 0.7500 | |
| Lubricant Type: PTFE | |
| UNSPSC Code: 31171508 |
| MSC# | 35398429 |
| Mfr# | CF 8TX |
| Big Book# | 3813 |
