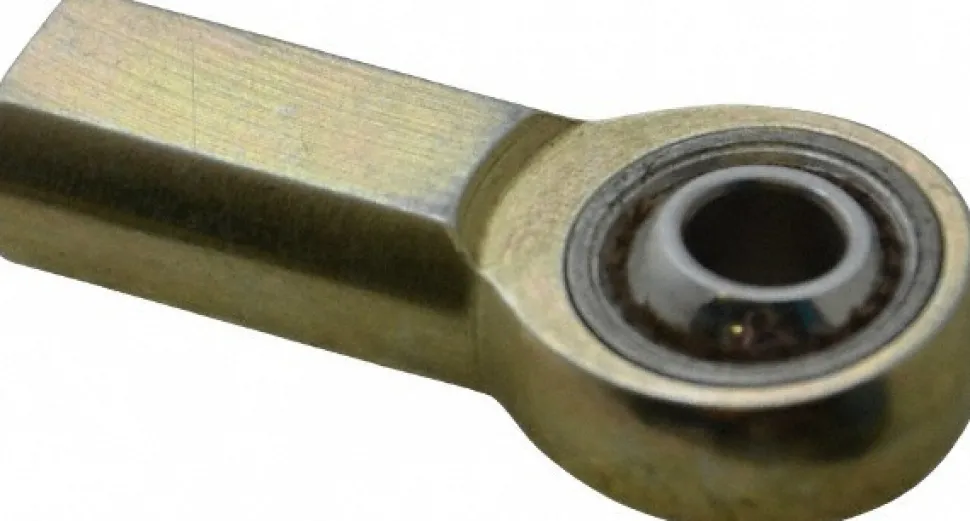

Ball Joint Linkage Spherical Rod End: 1/4-28″ Shank Thread, 1/4″ Rod ID, 3/4″ Rod OD, 0.469″ Shank Dia, 3/4″ Shank Length, 6,195 lb Static Load Capacity
22,99 $
Specifications
| Rod End Type: Ball Joint Linkage | Style: Plain Female Rod End |
| Maximum Outside Diameter (Inch): 3/4 | Maximum Static Load Capacity: 6195.0 |
| Width (Inch): 3/8 | Shank Diameter (Decimal Inch): 0.4690 |
| Thread Size: 1/4-28 | Shank Diameter: 0.5512 |
| Shank Length (Inch): 3/4 | Shank Length (Decimal Inch): 0.7500 |
| Housing Material: Alloy Steel | Gender: Female |
| Thread Direction: Right Hand | Bore Diameter (Inch): 1/4 |
| Bore Diameter (Decimal Inch): 0.2500 | Static Load Capacity: 6195.00 |
| Raceway Material: Steel | Ball Material: Steel |
| Maximum Ball Swivel: 16 | Thread Length (Decimal Inch): 0.7500 |
| Thread Length (Inch): 3/4 | Overall Thickness (Decimal Inch): 0.3750 |
| Lubricant Type: PTFE | Coating/Finish: Zinc |
| UNSPSC Code: 31171508 | Country of Origin: UNITED STATES |
| Rod End Type: Ball Joint Linkage | |
| Style: Plain Female Rod End | |
| Maximum Outside Diameter (Inch): 3/4 | |
| Maximum Static Load Capacity: 6195.0 | |
| Width (Inch): 3/8 | |
| Shank Diameter (Decimal Inch): 0.4690 | |
| Thread Size: 1/4-28 | |
| Shank Diameter: 0.5512 | |
| Shank Length (Inch): 3/4 | |
| Shank Length (Decimal Inch): 0.7500 | |
| Housing Material: Alloy Steel | |
| Gender: Female | |
| Thread Direction: Right Hand | |
| Bore Diameter (Inch): 1/4 | |
| Bore Diameter (Decimal Inch): 0.2500 | |
| Static Load Capacity: 6195.00 | |
| Raceway Material: Steel | |
| Ball Material: Steel | |
| Maximum Ball Swivel: 16 | |
| Thread Length (Decimal Inch): 0.7500 | |
| Thread Length (Inch): 3/4 | |
| Overall Thickness (Decimal Inch): 0.3750 | |
| Lubricant Type: PTFE | |
| Coating/Finish: Zinc | |
| UNSPSC Code: 31171508 | |
| Country of Origin: UNITED STATES |
| MSC# | 35398668 |
| Mfr# | JFX4T |
| Big Book# | 3813 |
