Sale!

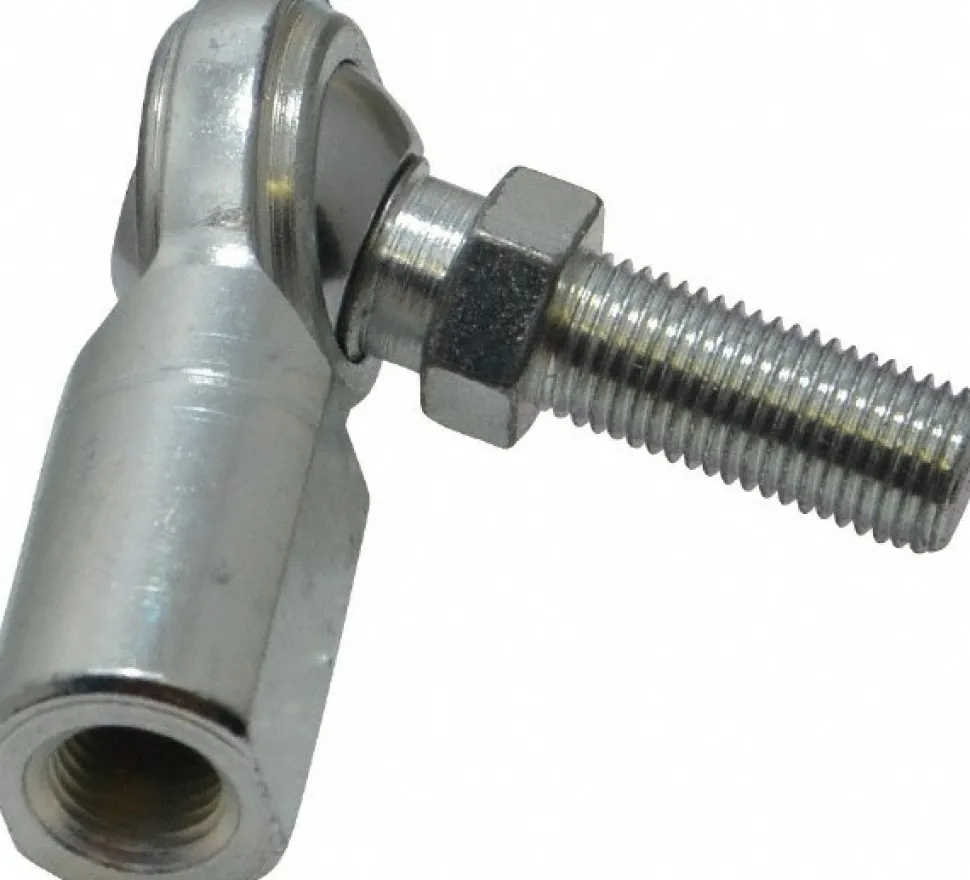

Ball Joint Linkage Spherical Rod End: 3/8-24″ Shank Thread, 3/8″ Rod ID, 1″ Rod OD, 0.687″ Shank Dia, 0.812″ Shank Length, 5,100 lb Static Load Capacity
Original price was: 14,00 $.10,99 $Current price is: 10,99 $.
Specifications
| Rod End Type: Ball Joint Linkage | Style: Female Rod End with Stud |
| Maximum Outside Diameter (Inch): 1 | Maximum Static Load Capacity: 5100.0 |
| Width (Inch): 1/2 | Shank Diameter (Decimal Inch): 0.6870 |
| Thread Size: 3/8-24 | Shank Diameter: 0.3937 |
| Shank Length (Decimal Inch): 0.8120 | Housing Material: Carbon Steel |
| Gender: Female | With Stud: Yes |
| Thread Direction: Right Hand | Bore Diameter (Inch): 3/8 |
| Bore Diameter (Decimal Inch): 0.3750 | Static Load Capacity: 5100.00 |
| Raceway Material: Steel | Ball Material: Steel |
| Maximum Ball Swivel: 22 | Thread Length (Decimal Inch): 0.8120 |
| Overall Thickness (Decimal Inch): 0.5620 | Coating/Finish: Zinc |
| UNSPSC Code: 31171508 | |
| Rod End Type: Ball Joint Linkage | |
| Style: Female Rod End with Stud | |
| Maximum Outside Diameter (Inch): 1 | |
| Maximum Static Load Capacity: 5100.0 | |
| Width (Inch): 1/2 | |
| Shank Diameter (Decimal Inch): 0.6870 | |
| Thread Size: 3/8-24 | |
| Shank Diameter: 0.3937 | |
| Shank Length (Decimal Inch): 0.8120 | |
| Housing Material: Carbon Steel | |
| Gender: Female | |
| With Stud: Yes | |
| Thread Direction: Right Hand | |
| Bore Diameter (Inch): 3/8 | |
| Bore Diameter (Decimal Inch): 0.3750 | |
| Static Load Capacity: 5100.00 | |
| Raceway Material: Steel | |
| Ball Material: Steel | |
| Maximum Ball Swivel: 22 | |
| Thread Length (Decimal Inch): 0.8120 | |
| Overall Thickness (Decimal Inch): 0.5620 | |
| Coating/Finish: Zinc | |
| UNSPSC Code: 31171508 |
| MSC# | 35397926 |
| Mfr# | CF 6S |
| Big Book# | 3813 |
Be the first to review “Ball Joint Linkage Spherical Rod End: 3/8-24″ Shank Thread, 3/8″ Rod ID, 1″ Rod OD, 0.687″ Shank Dia, 0.812″ Shank Length, 5,100 lb Static Load Capacity”
