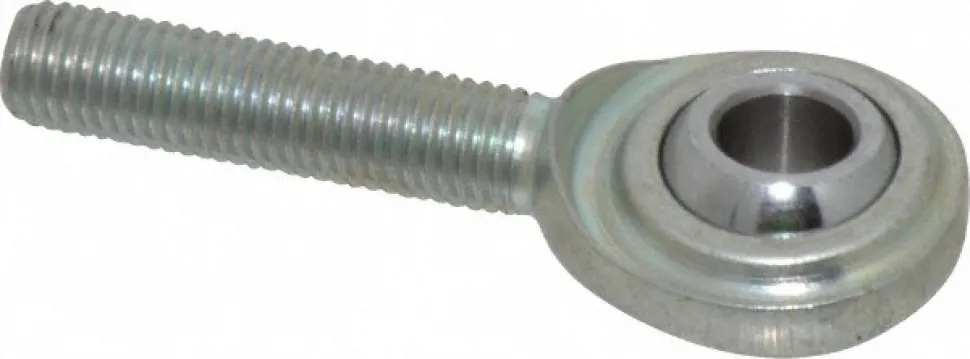

Ball Joint Linkage Spherical Rod End: 5/16-24″ Shank Thread, 5/16″ Rod ID, 7/8″ Rod OD, 1-1/4″ Shank Length, 3,600 lb Static Load Capacity
6,89 $
Specifications
| Rod End Type: Ball Joint Linkage | Style: Plain Male Rod End |
| Maximum Outside Diameter (Inch): 7/8 | Maximum Static Load Capacity: 3600.0 |
| Width (Inch): 7/16 | Thread Size: 5/16-24 |
| Shank Length (Inch): 1-1/4 | Shank Length (Decimal Inch): 1.2500 |
| Housing Material: Carbon Steel | Gender: Male |
| Thread Direction: Right Hand | Bore Diameter (Inch): 5/16 |
| Bore Diameter (Decimal Inch): 0.3125 | Static Load Capacity: 3600.00 |
| Raceway Material: Steel | Ball Material: Steel |
| Maximum Ball Swivel: 22 | Thread Length (Decimal Inch): 1.2500 |
| Thread Length (Inch): 1-1/4 | Coating/Finish: Zinc |
| UNSPSC Code: 31171508 | |
| Rod End Type: Ball Joint Linkage | |
| Style: Plain Male Rod End | |
| Maximum Outside Diameter (Inch): 7/8 | |
| Maximum Static Load Capacity: 3600.0 | |
| Width (Inch): 7/16 | |
| Thread Size: 5/16-24 | |
| Shank Length (Inch): 1-1/4 | |
| Shank Length (Decimal Inch): 1.2500 | |
| Housing Material: Carbon Steel | |
| Gender: Male | |
| Thread Direction: Right Hand | |
| Bore Diameter (Inch): 5/16 | |
| Bore Diameter (Decimal Inch): 0.3125 | |
| Static Load Capacity: 3600.00 | |
| Raceway Material: Steel | |
| Ball Material: Steel | |
| Maximum Ball Swivel: 22 | |
| Thread Length (Decimal Inch): 1.2500 | |
| Thread Length (Inch): 1-1/4 | |
| Coating/Finish: Zinc | |
| UNSPSC Code: 31171508 |
| MSC# | 35397678 |
| Mfr# | CM 5 |
| Big Book# | 3813 |
