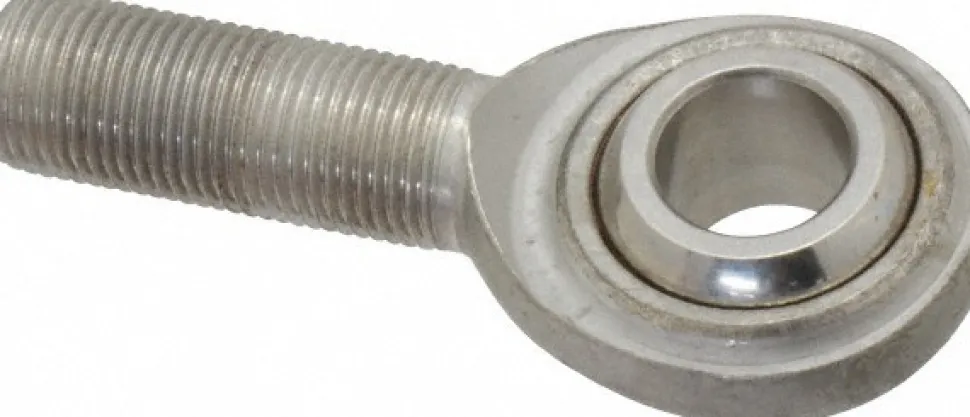

Ball Joint Linkage Spherical Rod End: 5/8-18″ Shank Thread, 5/8″ Rod ID, 1-1/2″ Rod OD, 1-5/8″ Shank Length, 5,860 lb Static Load Capacity
Original price was: 47,00 $.32,99 $Current price is: 32,99 $.
Specifications
| Rod End Type: Ball Joint Linkage | Style: Plain Male Rod End |
| Maximum Outside Diameter (Inch): 1-1/2 | Maximum Static Load Capacity: 5860.0 |
| Width (Inch): 3/4 | Thread Size: 5/8-18 |
| Shank Length (Inch): 1-5/8 | Shank Length (Decimal Inch): 1.6250 |
| Housing Material: Stainless Steel | Gender: Male |
| Thread Direction: Right Hand | Bore Diameter (Inch): 5/8 |
| Bore Diameter (Decimal Inch): 0.6250 | Static Load Capacity: 5860.00 |
| Raceway Material: Stainless Steel | Ball Material: Stainless Steel |
| Maximum Ball Swivel: 26 | Thread Length (Decimal Inch): 1.6250 |
| Thread Length (Inch): 1-5/8 | Lubricant Type: PTFE |
| UNSPSC Code: 31171508 | |
| Rod End Type: Ball Joint Linkage | |
| Style: Plain Male Rod End | |
| Maximum Outside Diameter (Inch): 1-1/2 | |
| Maximum Static Load Capacity: 5860.0 | |
| Width (Inch): 3/4 | |
| Thread Size: 5/8-18 | |
| Shank Length (Inch): 1-5/8 | |
| Shank Length (Decimal Inch): 1.6250 | |
| Housing Material: Stainless Steel | |
| Gender: Male | |
| Thread Direction: Right Hand | |
| Bore Diameter (Inch): 5/8 | |
| Bore Diameter (Decimal Inch): 0.6250 | |
| Static Load Capacity: 5860.00 | |
| Raceway Material: Stainless Steel | |
| Ball Material: Stainless Steel | |
| Maximum Ball Swivel: 26 | |
| Thread Length (Decimal Inch): 1.6250 | |
| Thread Length (Inch): 1-5/8 | |
| Lubricant Type: PTFE | |
| UNSPSC Code: 31171508 |
| MSC# | 35398353 |
| Mfr# | CM 10TX |
| Big Book# | 3813 |
