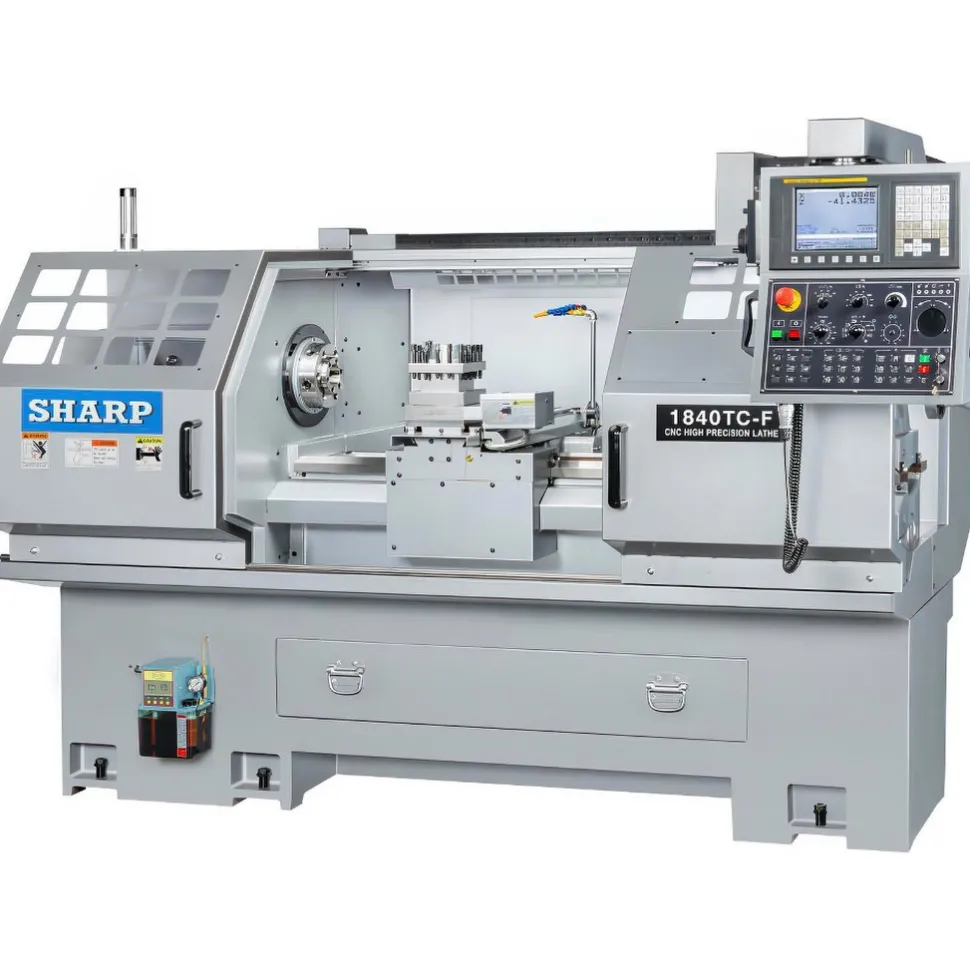

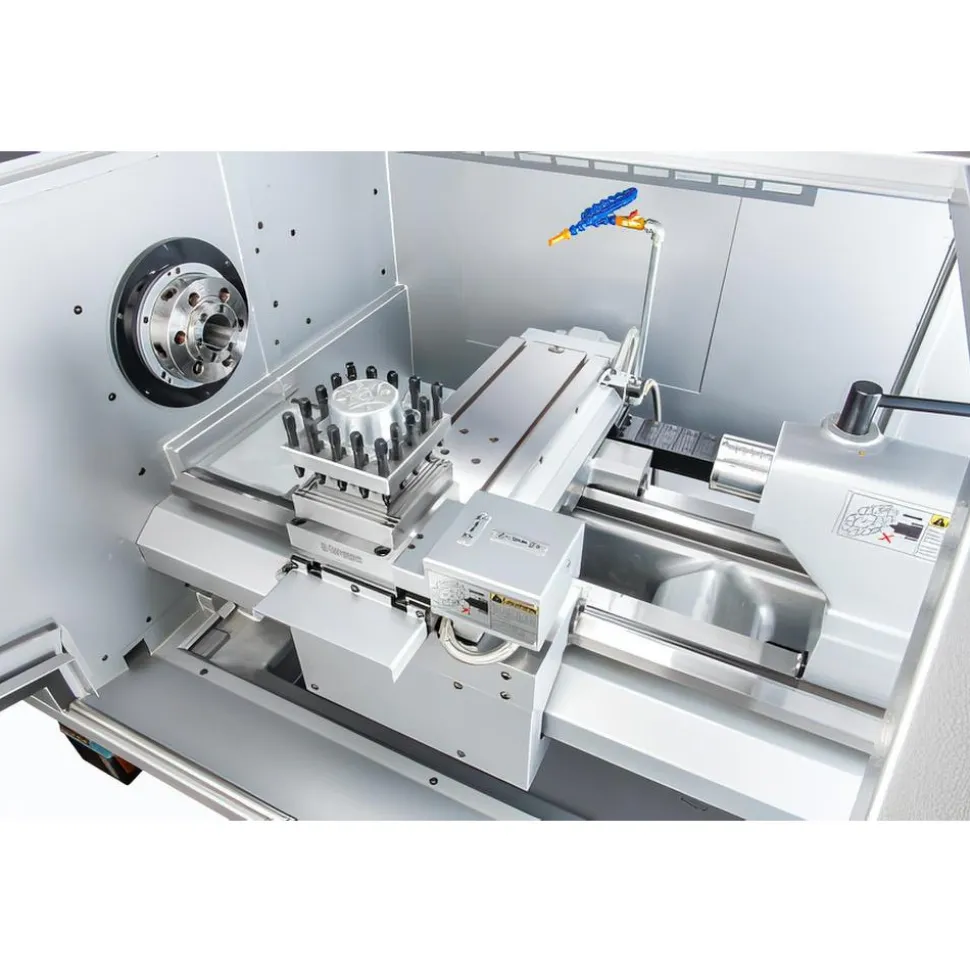

CNC Lathes: Swing (mm): 457.20; Swing (Decimal Inch): 18.000; Swing (Mm): 457
126,99 $
Specifications
| Swing (mm): 457.20 | Swing (Decimal Inch): 18.000 |
| Swing (Mm): 457 | Swing Over Cross Slide (mm): 228.60 |
| Swing Over Cross Slide (Mm): 228 | Swing Over Cross Slide (Decimal Inch): 9.000 |
| Distance Between Centers (mm): 1001.06 | Distance Between Centers (Frac Inch): 39-2/5 |
| Distance Between Centers (Mm): 1000 | Distance Between Centers (Decimal Inch): 40.0 |
| Bed Width (mm): 368.30 | Bed Width (Mm): 368 |
| Bed Width (Decimal Inch): 14.5 | Headstock Taper Size: #6 MT |
| Tailstock Taper Size: #5 MT | Spindle Bore Diameter (Decimal Inch): 2.375 |
| Spindle Bore Diameter (Mm): 60 | Spindle Nose Designation: D1-6 Camlock |
| Cross Slide Travel Length (Decimal Inch): 10.630 | Cross Slide Travel Length (Mm): 270 |
| Maximum Cross Feed Rate Per Revolution (In/Min): 394 | Maximum Cross Feed Rate Per Revolution (Mm/Min): 10007.60 |
| Max. Longitudinal Feed Rate Per Rev. (In/Min): 472 | Max. Longitudinal Feed Rate Per Rev. (Mm/Min): 11988.80 |
| Overall Length (Decimal Inch): 100.000 | Overall Height (Inch): 73 |
| Overall Height (Mm): 1854 | Overall Depth (Mm): 1397.00 |
| Overall Depth (Inch): 55 | UNSPSC Code: 23242300 |
| Maximum RPM: 2500 | Maximum Rpm: 2,500 |
| Minimum RPM: 43.00 | Horsepower (Hp): 10 |
| Country of Origin: Taiwan | |
| Swing (mm): 457.20 | |
| Swing (Decimal Inch): 18.000 | |
| Swing (Mm): 457 | |
| Swing Over Cross Slide (mm): 228.60 | |
| Swing Over Cross Slide (Mm): 228 | |
| Swing Over Cross Slide (Decimal Inch): 9.000 | |
| Distance Between Centers (mm): 1001.06 | |
| Distance Between Centers (Frac Inch): 39-2/5 | |
| Distance Between Centers (Mm): 1000 | |
| Distance Between Centers (Decimal Inch): 40.0 | |
| Bed Width (mm): 368.30 | |
| Bed Width (Mm): 368 | |
| Bed Width (Decimal Inch): 14.5 | |
| Headstock Taper Size: #6 MT | |
| Tailstock Taper Size: #5 MT | |
| Spindle Bore Diameter (Decimal Inch): 2.375 | |
| Spindle Bore Diameter (Mm): 60 | |
| Spindle Nose Designation: D1-6 Camlock | |
| Cross Slide Travel Length (Decimal Inch): 10.630 | |
| Cross Slide Travel Length (Mm): 270 | |
| Maximum Cross Feed Rate Per Revolution (In/Min): 394 | |
| Maximum Cross Feed Rate Per Revolution (Mm/Min): 10007.60 | |
| Max. Longitudinal Feed Rate Per Rev. (In/Min): 472 | |
| Max. Longitudinal Feed Rate Per Rev. (Mm/Min): 11988.80 | |
| Overall Length (Decimal Inch): 100.000 | |
| Overall Height (Inch): 73 | |
| Overall Height (Mm): 1854 | |
| Overall Depth (Mm): 1397.00 | |
| Overall Depth (Inch): 55 | |
| UNSPSC Code: 23242300 | |
| Maximum RPM: 2500 | |
| Maximum Rpm: 2,500 | |
| Minimum RPM: 43.00 | |
| Horsepower (Hp): 10 | |
| Country of Origin: Taiwan |
| MSC# | 51471985 |
| Mfr# | 1840-TC-F |
