Sale!

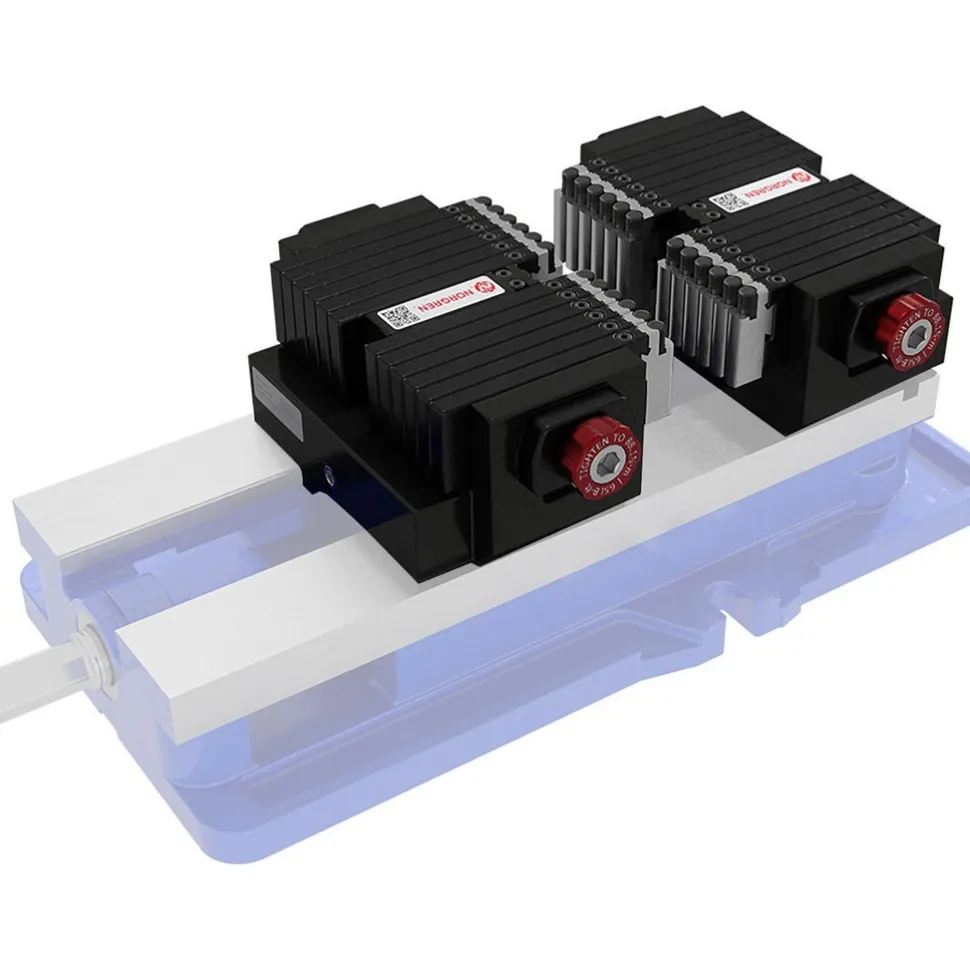

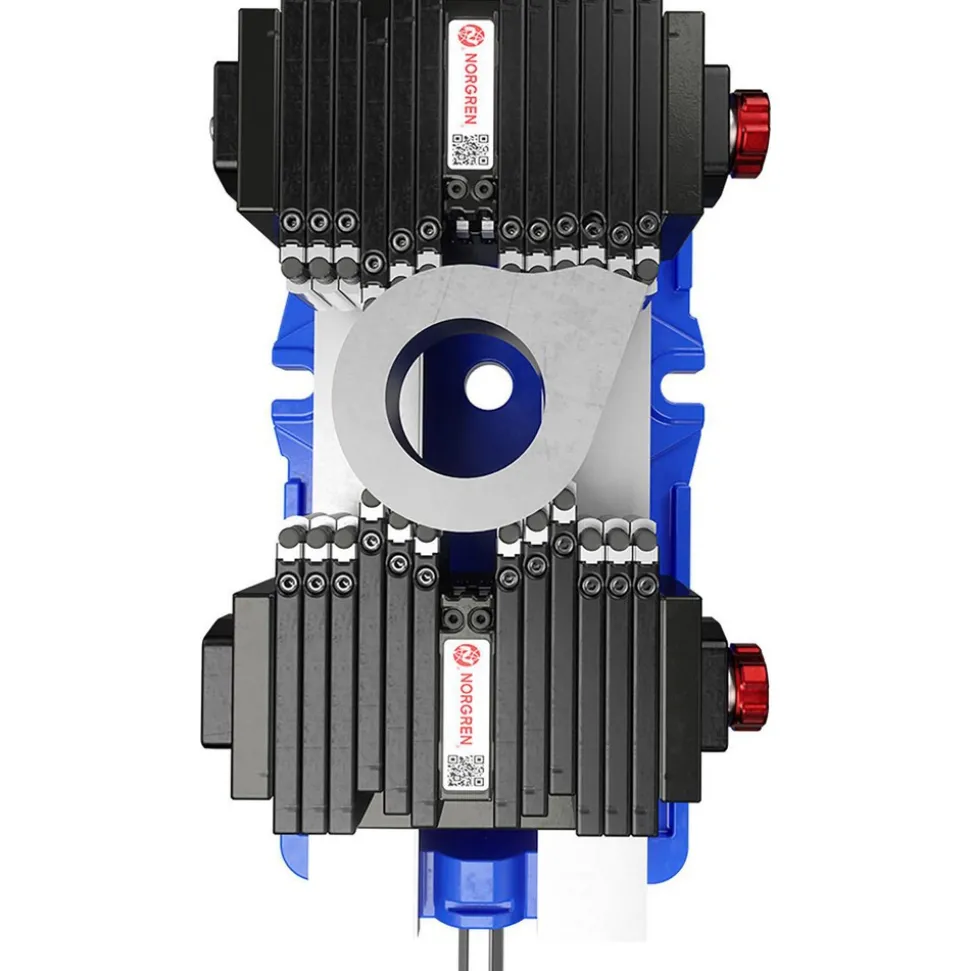

CNC Quick-Change Clamping Module: ADAPTIX Single Station Adaptive Vise Jaw System, for Kurt Model D675
Original price was: 8 198,00 $.122,89 $Current price is: 122,89 $.
Specifications
| Jaw Height (mm): 78.00 | Jaw Width (mm): 171.00 |
| Maximum Jaw Capacity (mm): 187.00 | Repeatability: 0.001000 |
| Maximum Finger Stroke (Decimal Inch): 1.0000 | Housing Material: AISI 4140 Alloy Steel |
| Finger Material: AISI 4140PH | Stud Material: A2 Tool Steel |
| Tip Material: Annealed AISI 4140 Alloy Steel | For Use With: Kurt D675 |
| Locking Bolt Torque (Ft/Lb): 65 | Includes: ASJ-FNGRTP-06-30; ASJ-HST-RO-30 |
| UNSPSC Code: 31162900 | |
| Jaw Height (mm): 78.00 | |
| Jaw Width (mm): 171.00 | |
| Maximum Jaw Capacity (mm): 187.00 | |
| Repeatability: 0.001000 | |
| Maximum Finger Stroke (Decimal Inch): 1.0000 | |
| Housing Material: AISI 4140 Alloy Steel | |
| Finger Material: AISI 4140PH | |
| Stud Material: A2 Tool Steel | |
| Tip Material: Annealed AISI 4140 Alloy Steel | |
| For Use With: Kurt D675 | |
| Locking Bolt Torque (Ft/Lb): 65 | |
| Includes: ASJ-FNGRTP-06-30; ASJ-HST-RO-30 | |
| UNSPSC Code: 31162900 |
| MSC# | 98994304 |
| Mfr# | ASJ-KT675-150-N-HST-RO-06 |
