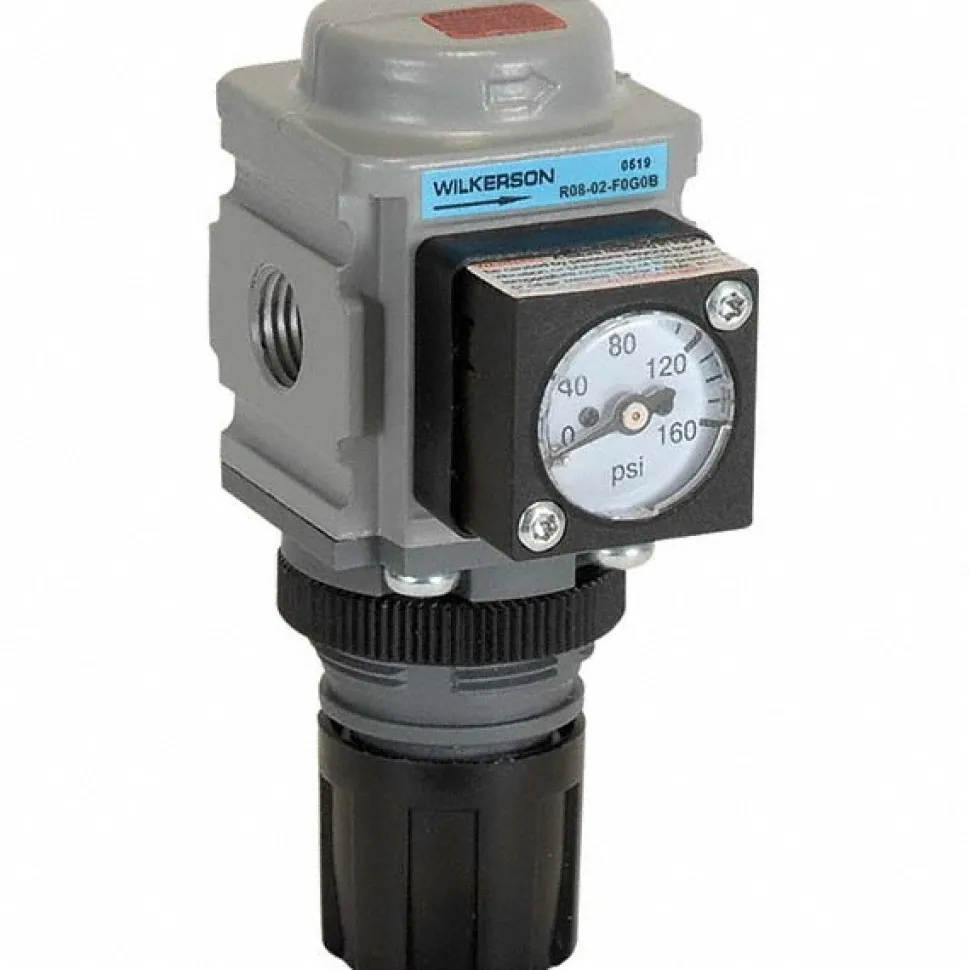

Compressed Air Regulator: 1/4″ NPT, 300 Max psi, Miniature

48,89 $

Specifications

Regulator Type: Miniature Regulator	Port Size: 1/4
Range: 0 to 125	End Connections: NPT
Maximum Air Flow: 73 CFM	Maximum Supply Pressure (psi): 300
Maximum Working Pressure: 300.000 psi	Pressure Gauge Included: Yes
Overall Height: 4.100 in	Overall Width: 2 in
Gauge Port Thread Size: 1/8	Modular Connection: Yes
Fluid Type: Compressed Air	Relief Function: Relieving
Series: R08	Air Flow (CFM): 68.0
Material: Aluminum Die Cast	Minimum Temperature (Deg F – 3 Decimals): -13.000
Maximum Temperature (F) ( – 0 Decimals): 150.000	UNSPSC Code: 40142202
Country of Origin: China
Regulator Type: Miniature Regulator
Port Size: 1/4
Range: 0 to 125
End Connections: NPT
Maximum Air Flow: 73 CFM
Maximum Supply Pressure (psi): 300
Maximum Working Pressure: 300.000 psi
Pressure Gauge Included: Yes
Overall Height: 4.100 in
Overall Width: 2 in
Gauge Port Thread Size: 1/8
Modular Connection: Yes
Fluid Type: Compressed Air
Relief Function: Relieving
Series: R08
Air Flow (CFM): 68.0
Material: Aluminum Die Cast
Minimum Temperature (Deg F – 3 Decimals): -13.000
Maximum Temperature (F) ( – 0 Decimals): 150.000
UNSPSC Code: 40142202
Country of Origin: China
