Hole Diameter (Inch): 1	Free Length (Inch): 3
Duty Rating: Heavy-Duty	Color: Red
Maximum Operating Deflection (Percent): 30.00	Wire Shape: D-Shaped
Material: Chromium-Vanadium Steel	Rod Diameter (Inch): 1/2
Travel To Solid Load (Decimal Inch): 1.0200	Maximum Deflection Load (Lb.): 512.00
Maximum Deflection (Decimal Inch): 0.9000	Standards: NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard; ISO 9001:2015 Registered
UNSPSC Code: 31161905	Country of Origin: UNITED STATES
Hole Diameter (Inch): 1
Free Length (Inch): 3
Duty Rating: Heavy-Duty
Color: Red
Maximum Operating Deflection (Percent): 30.00
Wire Shape: D-Shaped
Material: Chromium-Vanadium Steel
Rod Diameter (Inch): 1/2
Travel To Solid Load (Decimal Inch): 1.0200
Maximum Deflection Load (Lb.): 512.00
Maximum Deflection (Decimal Inch): 0.9000
Standards: NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard; ISO 9001:2015 Registered
UNSPSC Code: 31161905
Country of Origin: UNITED STATES

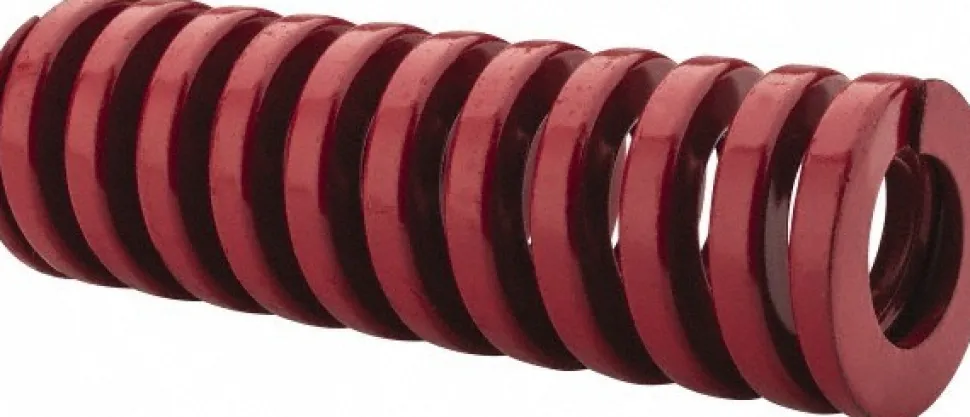

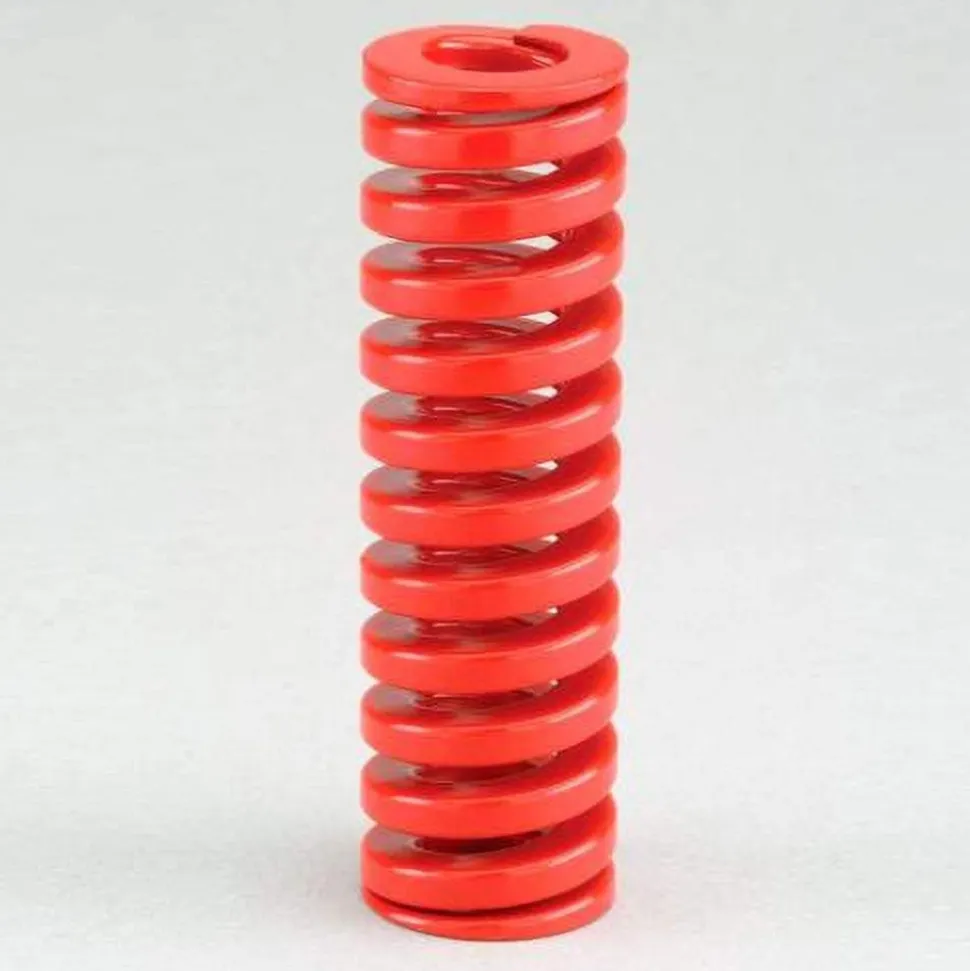

Die Spring: 1″ Hole Dia, 1/2″ Rod Dia, 3″ Free Length, Red
