Hole Diameter (Inch): 3/4	Free Length (Inch): 1-3/4
Duty Rating: Light-Duty	Color: Green
Maximum Operating Deflection (Percent): 40.00	Wire Shape: D-Shaped
Material: Chromium-Vanadium Steel	Rod Diameter (Inch): 3/8
Travel To Solid Load (Decimal Inch): 0.8700	Maximum Deflection Load (Lb.): 112.00
Maximum Deflection (Decimal Inch): 0.6900	Standards: NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard; ISO 9001:2015 Registered
UNSPSC Code: 31161905	Country of Origin: UNITED STATES
Hole Diameter (Inch): 3/4
Free Length (Inch): 1-3/4
Duty Rating: Light-Duty
Color: Green
Maximum Operating Deflection (Percent): 40.00
Wire Shape: D-Shaped
Material: Chromium-Vanadium Steel
Rod Diameter (Inch): 3/8
Travel To Solid Load (Decimal Inch): 0.8700
Maximum Deflection Load (Lb.): 112.00
Maximum Deflection (Decimal Inch): 0.6900
Standards: NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard; ISO 9001:2015 Registered
UNSPSC Code: 31161905
Country of Origin: UNITED STATES

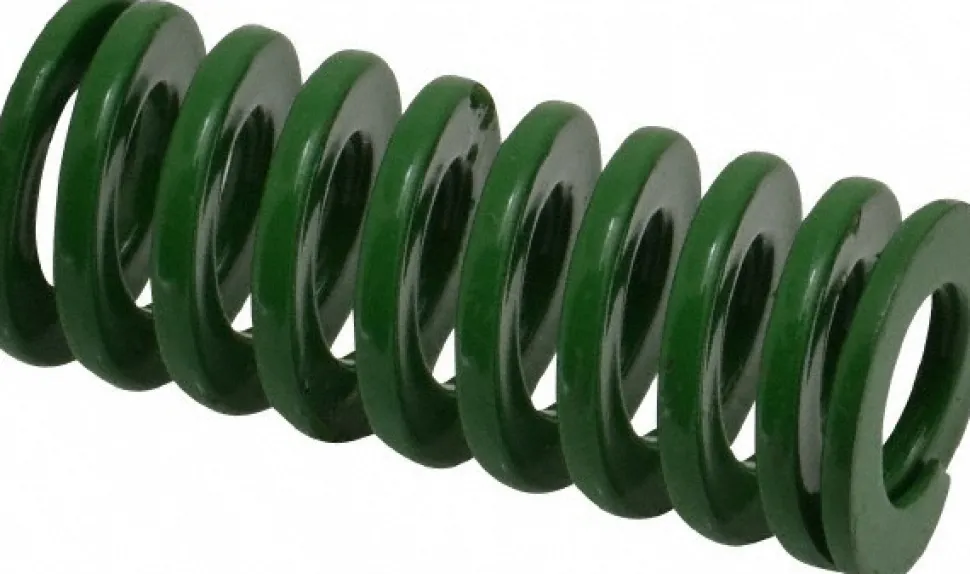

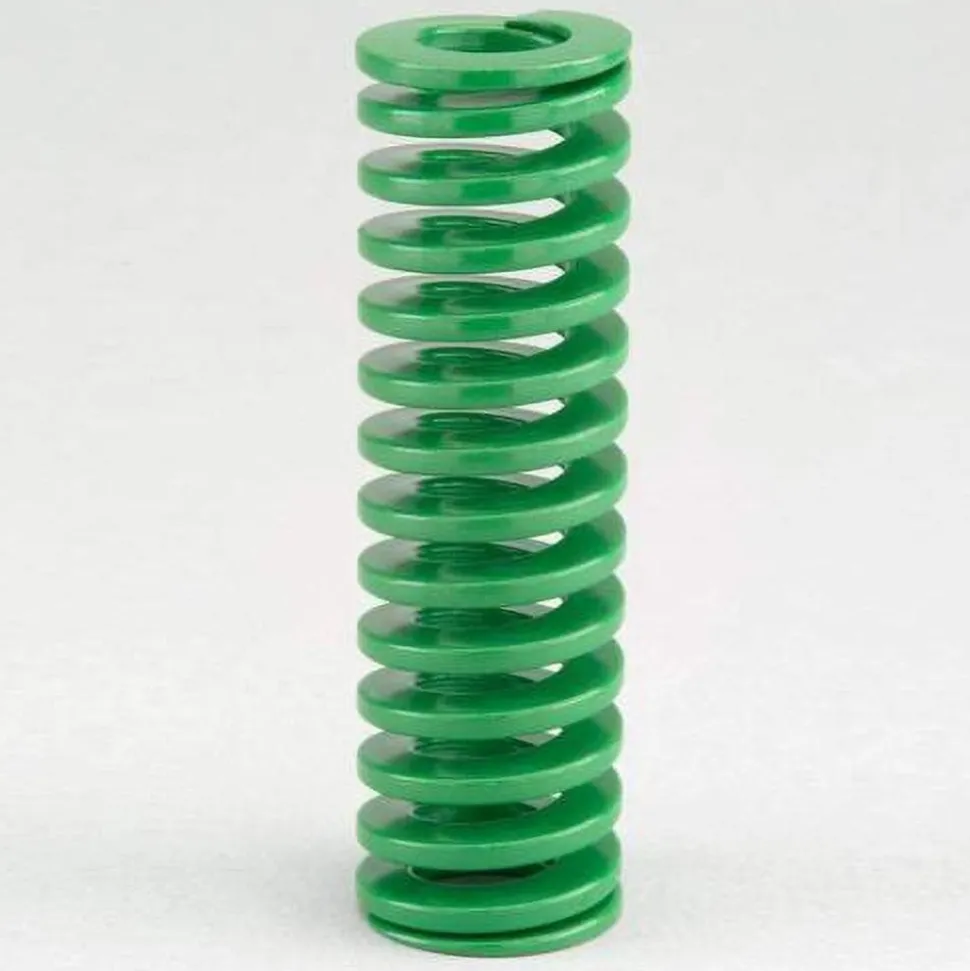

Die Spring: 3/4″ Hole Dia, 3/8″ Rod Dia, 1-3/4″ Free Length, Green

Specifications
