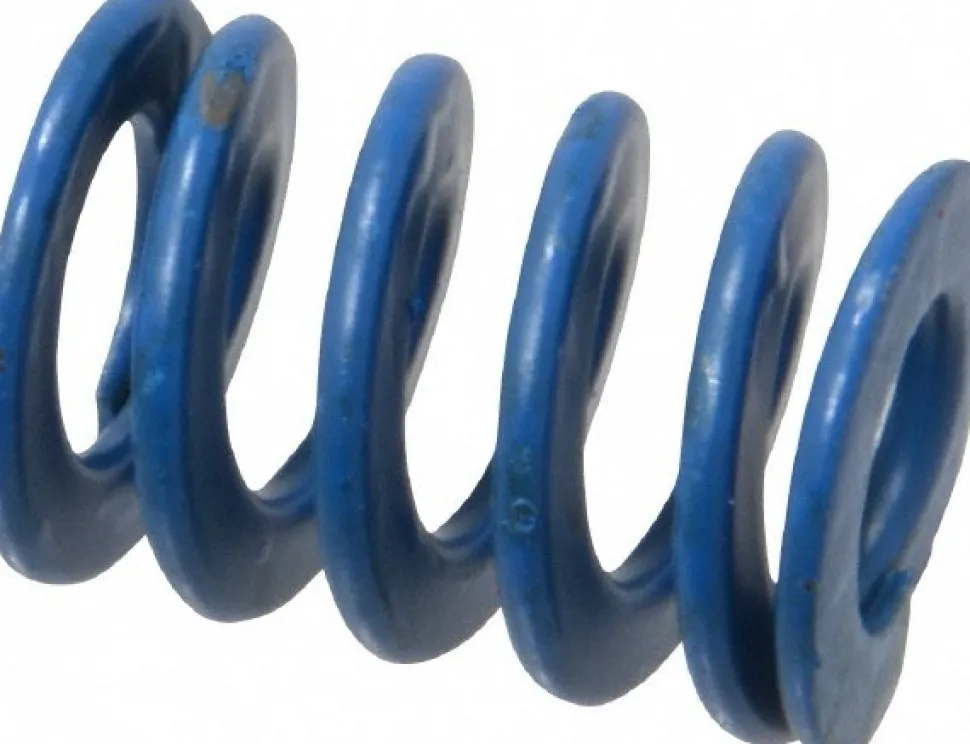

Die Spring: 3/4″ Hole Dia, 3/8″ Rod Dia, 1″ Free Length, Blue
Original price was: 6,00 $.4,89 $Current price is: 4,89 $.
Specifications
| Hole Diameter (Inch): 3/4 | Free Length (Inch): 1 |
| Duty Rating: Medium-Duty | Color: Blue |
| Maximum Operating Deflection (Percent): 40.00 | Wire Shape: Trapezoidal |
| Material: Chromium Alloy Steel | Rod Diameter (Inch): 3/8 |
| Maximum Deflection Load (Lb.): 128.00 | Maximum Deflection (Decimal Inch): 0.4000 |
| Spring Rate: 320.0000 | Standards: ISO/TS 16949:2009 Certified; TUV Rheinland Registered; ANAB Accredited; ISO 9001:2008 Certified |
| UNSPSC Code: 31161905 | Country of Origin: China |
| Hole Diameter (Inch): 3/4 | |
| Free Length (Inch): 1 | |
| Duty Rating: Medium-Duty | |
| Color: Blue | |
| Maximum Operating Deflection (Percent): 40.00 | |
| Wire Shape: Trapezoidal | |
| Material: Chromium Alloy Steel | |
| Rod Diameter (Inch): 3/8 | |
| Maximum Deflection Load (Lb.): 128.00 | |
| Maximum Deflection (Decimal Inch): 0.4000 | |
| Spring Rate: 320.0000 | |
| Standards: ISO/TS 16949:2009 Certified; TUV Rheinland Registered; ANAB Accredited; ISO 9001:2008 Certified | |
| UNSPSC Code: 31161905 | |
| Country of Origin: China |
| MSC# | 07660582 |
| Mfr# | 103-404 |
| Big Book# | 1459 |
| Color | Blue |
|---|
