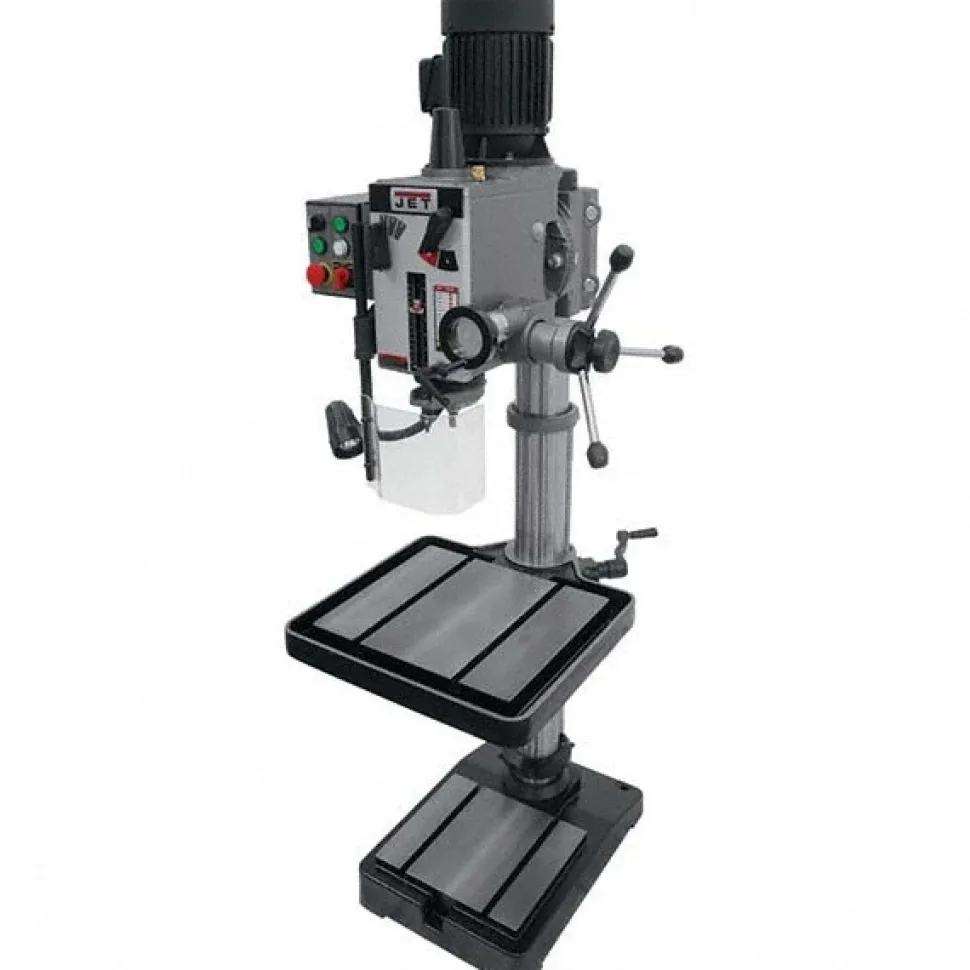

Floor Drill Press: 10″ Swing, 2 hp, Geared Head Drive, 230 V, 3 Phase
124,89 $
Specifications
| Drive Type: Geared Head | Stand Type: Floor |
| Swing Distance (Decimal Inch): 10.0000 | Swing Distance (Inch): 10 |
| Spindle Speed Control: Geared Head | Phase: Three |
| Spindle Taper Size: 3MT | Minimum Spindle Speed: 60 |
| Maximum Spindle Speed (RPM): 3000 | Minimum Spindle Speed (RPM): 120 |
| Maximum Spindle Speed (RPM): 1500 | Number of Spindle Speeds: 12 |
| Spindle To Column Distance: 10 in | Spindle to Column Distance (Inch): 10 |
| Spindle to Table Distance (Inch): 30-1/2 | Overall Height (Inch – 2 Decimals): 71.00 |
| Spindle Travel Length: 5 in | Spindle Travel Length (Decimal Inch): 5.0000 |
| Spindle Travel Length (Inch): 5 | Column Diameter (Inch): 4-1/2 |
| Drilling Capacity in Steel (Inch): 1-1/4 | Drilling Capacity in Cast Iron (Inch): 1-1/2 |
| UNSPSC Code: 23241801 | Table Slot Size: 9 in |
| Table Length (Decimal Inch): 21.7500 | Table Load Capacity: 275 |
| Table Length: 21.75 in | Table Width: 19.5 in |
| Base Length: 26.0000 | Base Width: 18 in |
| Overall Height: 71 in | Overall Depth (Inch): 24 |
| Overall Length: 32 in | Overall Depth: 24 in |
| Includes: TEFC Motor; T-slotted Worktable; Integrated Tapping and Reversing Control; Drill Chuck Arbor; Draw Bar | Country of Origin: Taiwan |
| Drive Type: Geared Head | |
| Stand Type: Floor | |
| Swing Distance (Decimal Inch): 10.0000 | |
| Swing Distance (Inch): 10 | |
| Spindle Speed Control: Geared Head | |
| Phase: Three | |
| Spindle Taper Size: 3MT | |
| Minimum Spindle Speed: 60 | |
| Maximum Spindle Speed (RPM): 3000 | |
| Minimum Spindle Speed (RPM): 120 | |
| Maximum Spindle Speed (RPM): 1500 | |
| Number of Spindle Speeds: 12 | |
| Spindle To Column Distance: 10 in | |
| Spindle to Column Distance (Inch): 10 | |
| Spindle to Table Distance (Inch): 30-1/2 | |
| Overall Height (Inch – 2 Decimals): 71.00 | |
| Spindle Travel Length: 5 in | |
| Spindle Travel Length (Decimal Inch): 5.0000 | |
| Spindle Travel Length (Inch): 5 | |
| Column Diameter (Inch): 4-1/2 | |
| Drilling Capacity in Steel (Inch): 1-1/4 | |
| Drilling Capacity in Cast Iron (Inch): 1-1/2 | |
| UNSPSC Code: 23241801 | |
| Table Slot Size: 9 in | |
| Table Length (Decimal Inch): 21.7500 | |
| Table Load Capacity: 275 | |
| Table Length: 21.75 in | |
| Table Width: 19.5 in | |
| Base Length: 26.0000 | |
| Base Width: 18 in | |
| Overall Height: 71 in | |
| Overall Depth (Inch): 24 | |
| Overall Length: 32 in | |
| Overall Depth: 24 in | |
| Includes: TEFC Motor; T-slotted Worktable; Integrated Tapping and Reversing Control; Drill Chuck Arbor; Draw Bar | |
| Country of Origin: Taiwan |
| MSC# | 91278168 |
| Mfr# | 354022 |
