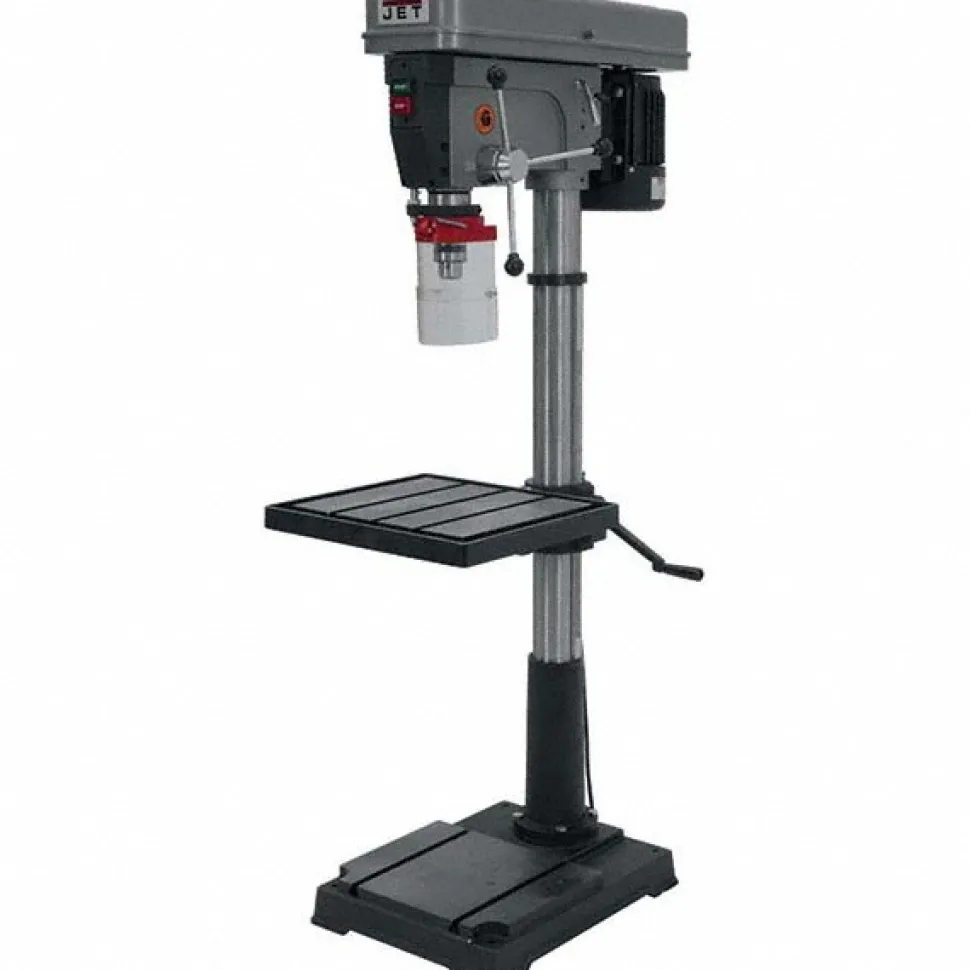

Floor Drill Press: 20″ Swing, 1 hp, Belt Drive, 115 & 230 V, 1 Phase
132,89 $
Specifications
| Drive Type: Belt | Stand Type: Floor |
| Swing Distance (Decimal Inch): 20.0000 | Swing Distance (Inch): 20 |
| Spindle Speed Control: Step Pulley | Phase: Single |
| Spindle Taper Size: 3MT | Minimum Spindle Speed: 150 |
| Maximum Spindle Speed (RPM): 4200 | Minimum Spindle Speed (RPM): 150 |
| Maximum Spindle Speed (RPM): 4200 | Number of Spindle Speeds: 12 |
| Spindle to Column Distance (Inch): 10-1/2 | Spindle to Table Distance (Inch): 24 |
| Overall Height (Inch – 2 Decimals): 67.00 | Spindle Travel Length: 4.75 in |
| Spindle Travel Length (Decimal Inch): 4.7500 | Spindle To Table Distance: 24 in |
| Spindle Travel Length (Inch): 4-3/4 | Column Diameter (Inch): 3-5/8 |
| Drilling Capacity in Steel (Inch): 5/8 | Drilling Capacity in Cast Iron (Inch): 3/4 |
| UNSPSC Code: 23241801 | Table Slot Size: 4 in |
| Table Length (Decimal Inch): 18.6875 | Table Load Capacity: 66 |
| Table Length: 18.6875 in | Table Width: 16.75 in |
| Base Length: 22.7500 | Overall Height: 67 in |
| Overall Depth (Inch): 18-1/2 | Overall Length: 33.5 in |
| Drive Type: Belt | |
| Stand Type: Floor | |
| Swing Distance (Decimal Inch): 20.0000 | |
| Swing Distance (Inch): 20 | |
| Spindle Speed Control: Step Pulley | |
| Phase: Single | |
| Spindle Taper Size: 3MT | |
| Minimum Spindle Speed: 150 | |
| Maximum Spindle Speed (RPM): 4200 | |
| Minimum Spindle Speed (RPM): 150 | |
| Maximum Spindle Speed (RPM): 4200 | |
| Number of Spindle Speeds: 12 | |
| Spindle to Column Distance (Inch): 10-1/2 | |
| Spindle to Table Distance (Inch): 24 | |
| Overall Height (Inch – 2 Decimals): 67.00 | |
| Spindle Travel Length: 4.75 in | |
| Spindle Travel Length (Decimal Inch): 4.7500 | |
| Spindle To Table Distance: 24 in | |
| Spindle Travel Length (Inch): 4-3/4 | |
| Column Diameter (Inch): 3-5/8 | |
| Drilling Capacity in Steel (Inch): 5/8 | |
| Drilling Capacity in Cast Iron (Inch): 3/4 | |
| UNSPSC Code: 23241801 | |
| Table Slot Size: 4 in | |
| Table Length (Decimal Inch): 18.6875 | |
| Table Load Capacity: 66 | |
| Table Length: 18.6875 in | |
| Table Width: 16.75 in | |
| Base Length: 22.7500 | |
| Overall Height: 67 in | |
| Overall Depth (Inch): 18-1/2 | |
| Overall Length: 33.5 in |
| MSC# | 62112016 |
| Mfr# | 354402 |
| Big Book# | 1546 |
