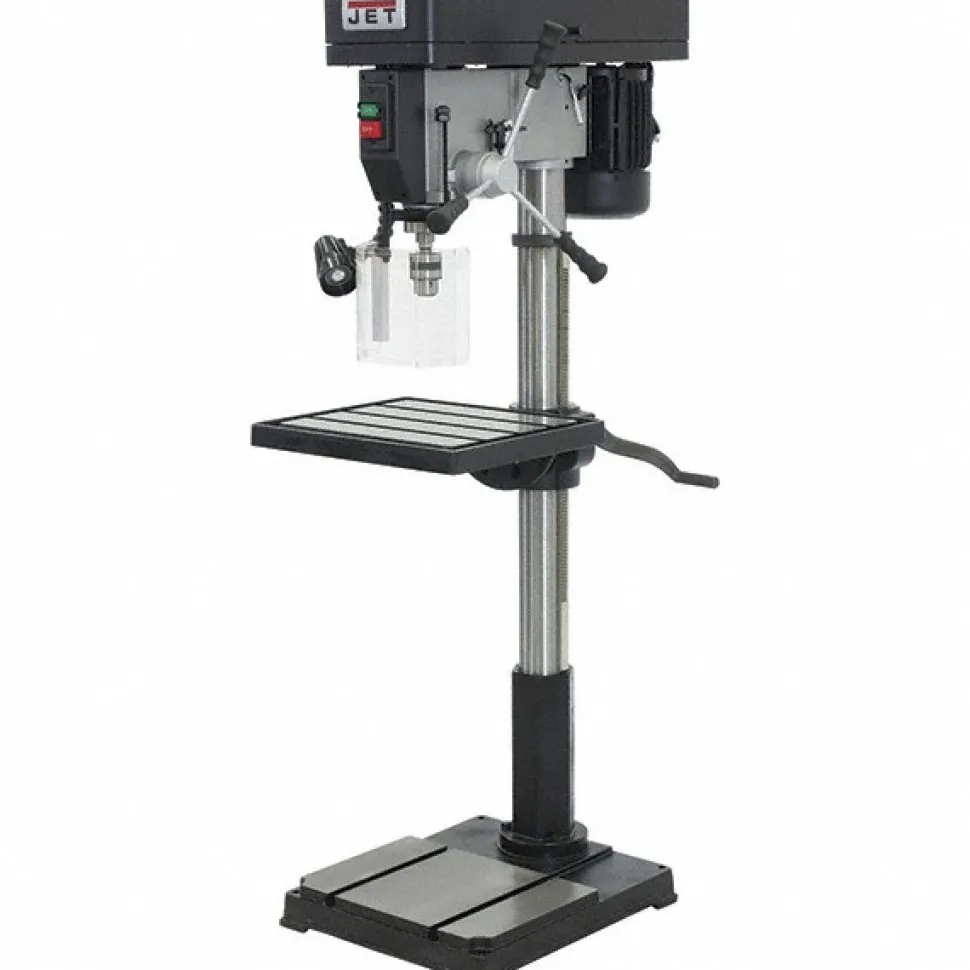

Floor Drill Press: 22″ Swing, 1-1/2 hp, Belt Drive, 115 & 230 V, 1 Phase
128,99 $
Specifications
| Drive Type: Belt | Stand Type: Floor |
| Swing Distance (Decimal Inch): 22.0000 | Swing Distance (Inch): 22 |
| Spindle Speed Control: Step Pulley | Phase: Single |
| Spindle Taper Size: 3MT | Minimum Spindle Speed: 175 |
| Maximum Spindle Speed (RPM): 3050 | Minimum Spindle Speed (RPM): 175 |
| Maximum Chuck Capacity: 0.63 in | Maximum Spindle Speed (RPM): 3050 |
| Number of Spindle Speeds: 12 | Spindle To Column Distance: 10.875 in |
| Spindle to Column Distance (Inch): 10-7/8 | Spindle to Table Distance (Inch): 28 |
| Overall Height (Inch – 2 Decimals): 67.00 | Spindle Travel Length: 4.8125 in |
| Spindle Travel Length (Decimal Inch): 4.8125 | Spindle To Table Distance: 28 in |
| Spindle Travel Length (Inch): 4-13/16 | Column Diameter (Inch): 3-5/8 |
| Drilling Capacity in Steel (Inch): 1 | Drilling Capacity in Cast Iron (Inch): 1-1/4 |
| Drilling Capacity In Steel: 1 in | UNSPSC Code: 23241801 |
| Table Slot Size: 0.75 in | Table Length (Decimal Inch): 18.6250 |
| Table Load Capacity: 176 | Table Length: 18.625 in |
| Table Width: 16.125 in | Base Length: 21.5000 |
| Overall Height: 67 in | Overall Depth (Inch): 19 |
| Overall Length: 35 in | Overall Depth: 19 in |
| Country of Origin: Taiwan | |
| Drive Type: Belt | |
| Stand Type: Floor | |
| Swing Distance (Decimal Inch): 22.0000 | |
| Swing Distance (Inch): 22 | |
| Spindle Speed Control: Step Pulley | |
| Phase: Single | |
| Spindle Taper Size: 3MT | |
| Minimum Spindle Speed: 175 | |
| Maximum Spindle Speed (RPM): 3050 | |
| Minimum Spindle Speed (RPM): 175 | |
| Maximum Chuck Capacity: 0.63 in | |
| Maximum Spindle Speed (RPM): 3050 | |
| Number of Spindle Speeds: 12 | |
| Spindle To Column Distance: 10.875 in | |
| Spindle to Column Distance (Inch): 10-7/8 | |
| Spindle to Table Distance (Inch): 28 | |
| Overall Height (Inch – 2 Decimals): 67.00 | |
| Spindle Travel Length: 4.8125 in | |
| Spindle Travel Length (Decimal Inch): 4.8125 | |
| Spindle To Table Distance: 28 in | |
| Spindle Travel Length (Inch): 4-13/16 | |
| Column Diameter (Inch): 3-5/8 | |
| Drilling Capacity in Steel (Inch): 1 | |
| Drilling Capacity in Cast Iron (Inch): 1-1/4 | |
| Drilling Capacity In Steel: 1 in | |
| UNSPSC Code: 23241801 | |
| Table Slot Size: 0.75 in | |
| Table Length (Decimal Inch): 18.6250 | |
| Table Load Capacity: 176 | |
| Table Length: 18.625 in | |
| Table Width: 16.125 in | |
| Base Length: 21.5000 | |
| Overall Height: 67 in | |
| Overall Depth (Inch): 19 | |
| Overall Length: 35 in | |
| Overall Depth: 19 in | |
| Country of Origin: Taiwan |
| MSC# | 30423719 |
| Mfr# | 354301 |
