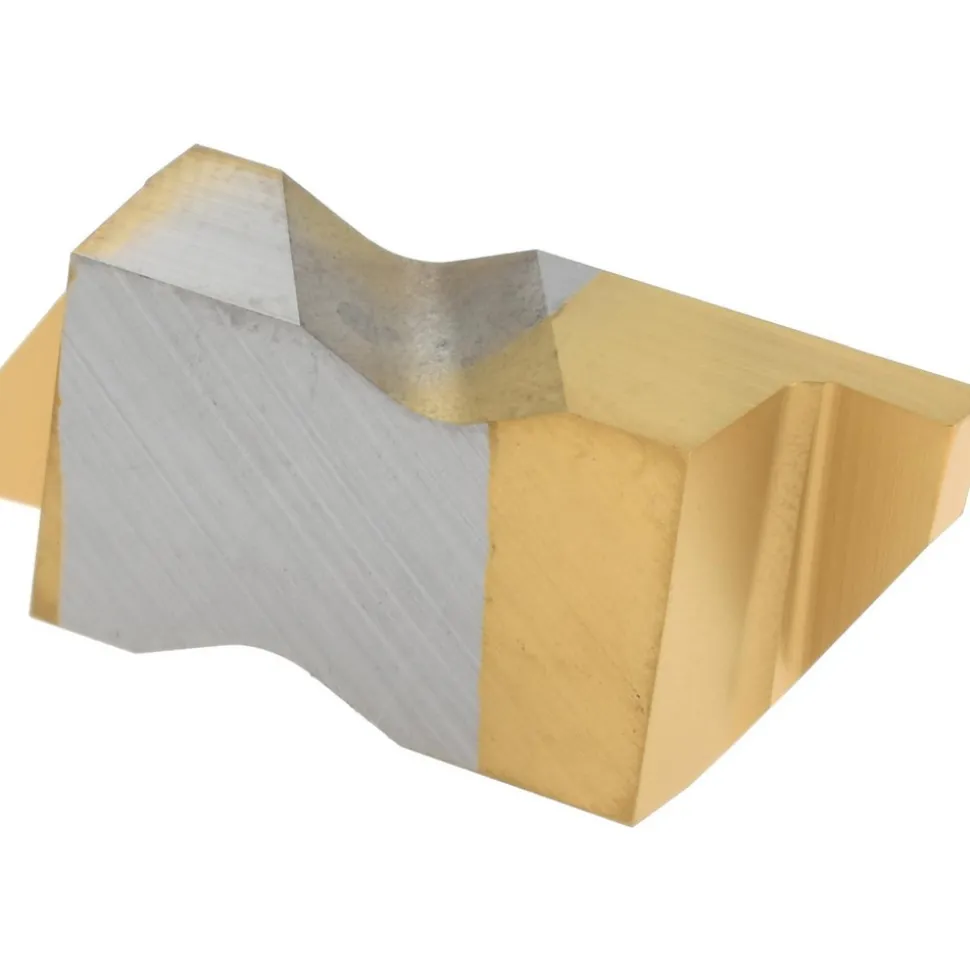

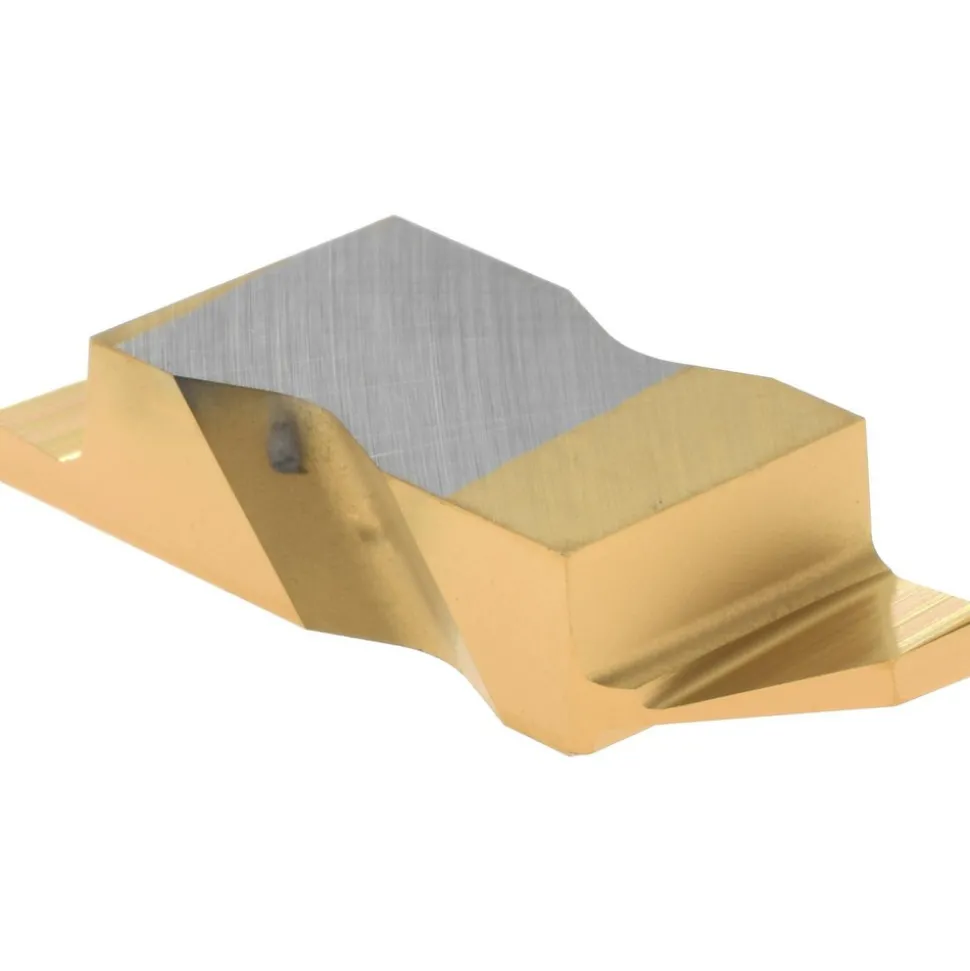

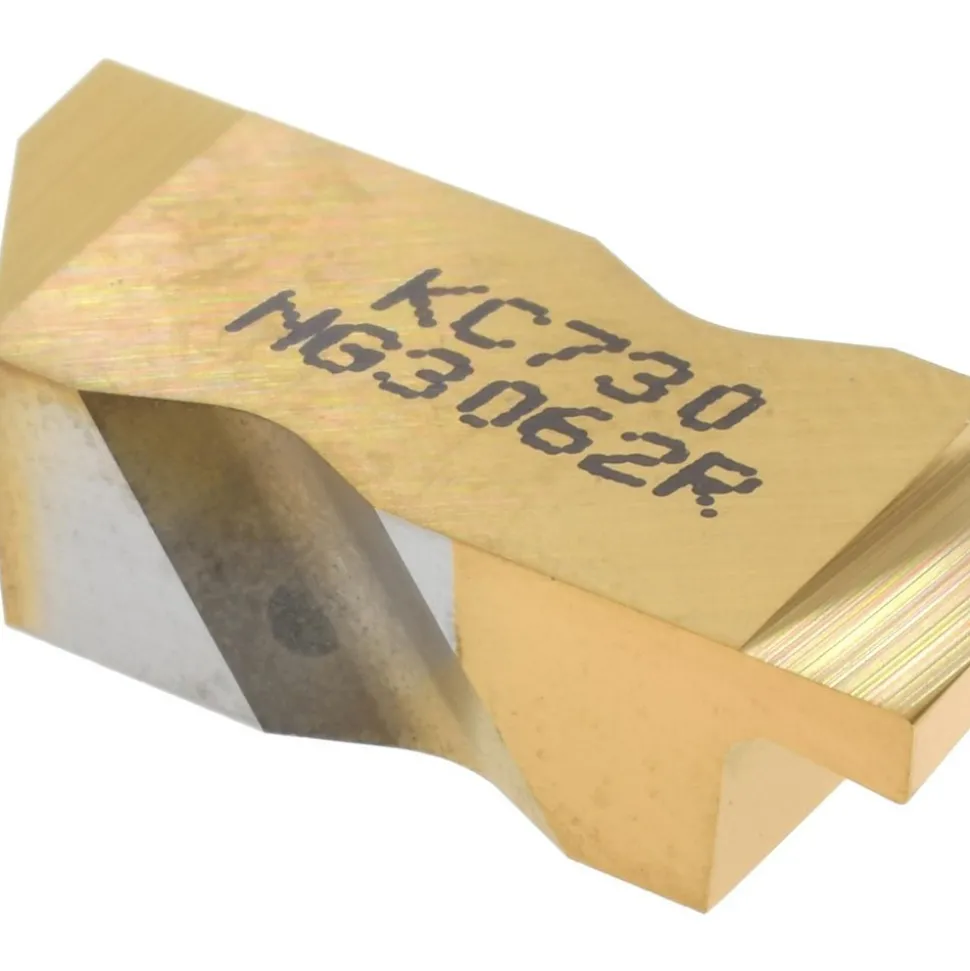

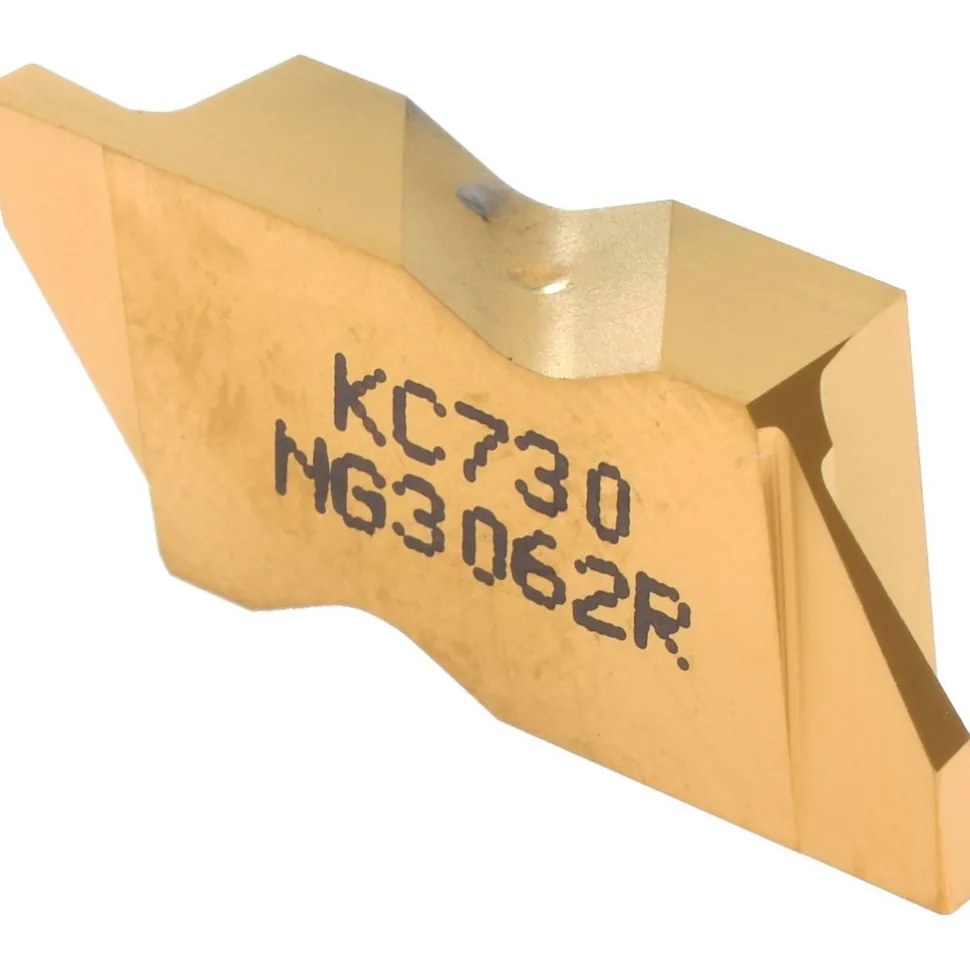

Grooving Insert: NG3062R KC730, Carbide

27,99 $

Specifications

Insert Style: NG	Cutting Width (Decimal Inch): 0.0622
Cutting Width (mm): 1.58	Insert Hand: Right Hand
Maximum Depth of Cut (Decimal Inch): 0.0941	Maximum Depth of Cut (mm): 2.39
Insert Material: Carbide	Manufacturer Grade: KC730
Full Radius: No	Corner Radius (Decimal Inch): 0.0075
Corner Radius (mm): 0.19	Rake: Neutral
Measurement Type: Metric	Insert Size: 3062
Material Grade: C3; C4; C2	Maximum Depth Of Cut Range (Decimal Inch): 0.0750 to 0.1000
Maximum Depth Of Cut Range (mm): 2.00 to 3.00	Lead Angle: 3.000
Multi-use Tool: No	Series: Top Notch
Coating Process: PVD	UNSPSC Code: 23242105
MSC/Manufacturer Number: NG3062R/L	Insert Height (Decimal Inch): 0.3440
Included Angle Degree: 55	Coating/Finish: TiN
Country of Origin: UNITED STATES
Insert Style: NG
Cutting Width (Decimal Inch): 0.0622
Cutting Width (mm): 1.58
Insert Hand: Right Hand
Maximum Depth of Cut (Decimal Inch): 0.0941
Maximum Depth of Cut (mm): 2.39
Insert Material: Carbide
Manufacturer Grade: KC730
Full Radius: No
Corner Radius (Decimal Inch): 0.0075
Corner Radius (mm): 0.19
Rake: Neutral
Measurement Type: Metric
Insert Size: 3062
Material Grade: C3; C4; C2
Maximum Depth Of Cut Range (Decimal Inch): 0.0750 to 0.1000
Maximum Depth Of Cut Range (mm): 2.00 to 3.00
Lead Angle: 3.000
Multi-use Tool: No
Series: Top Notch
Coating Process: PVD
UNSPSC Code: 23242105
MSC/Manufacturer Number: NG3062R/L
Insert Height (Decimal Inch): 0.3440
Included Angle Degree: 55
Coating/Finish: TiN
Country of Origin: UNITED STATES
