Sale!

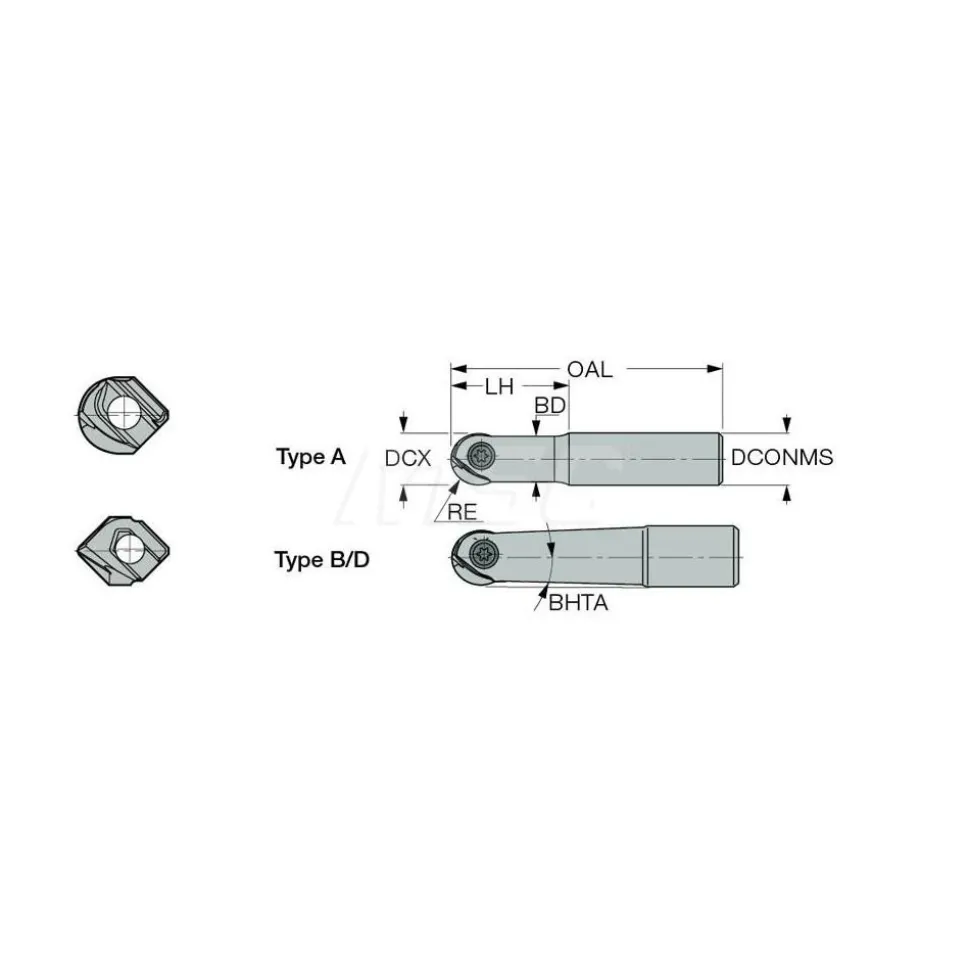

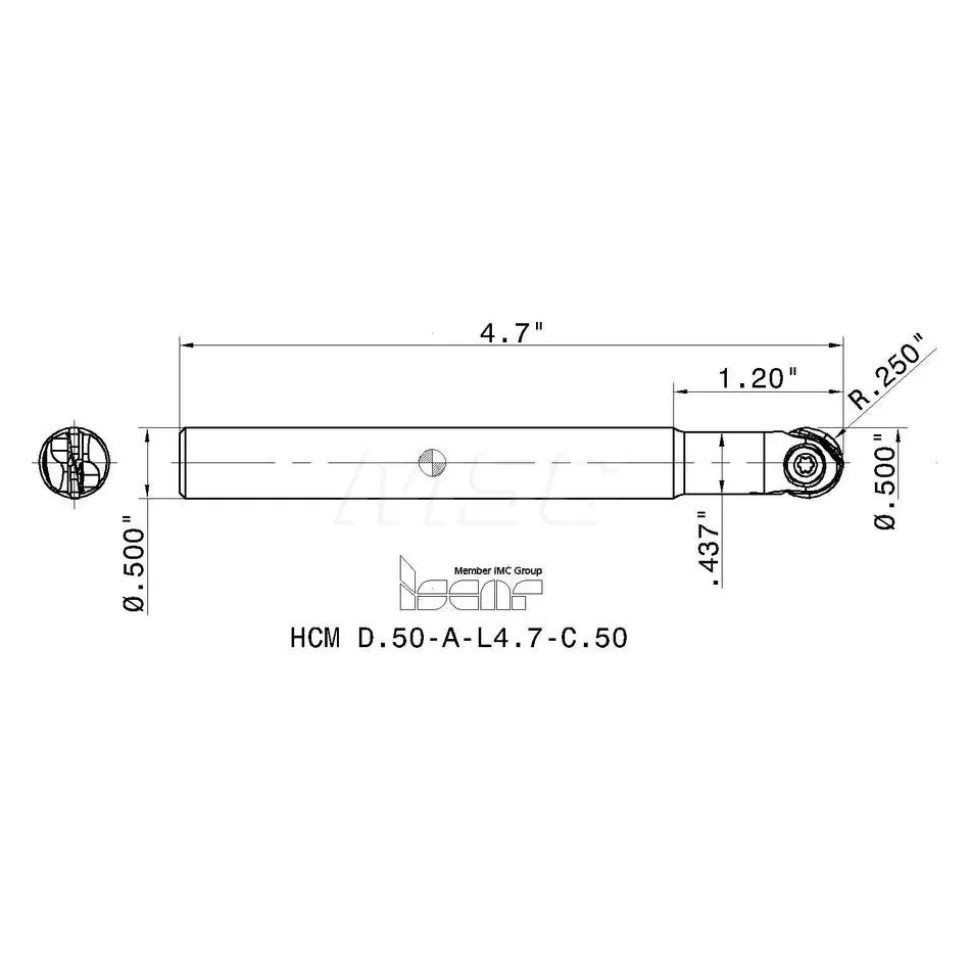

Indexable Ball Nose End Mill: 1/2″ Cut Dia, Solid Carbide, 4.7″ OAL
Original price was: 280,00 $.126,99 $Current price is: 126,99 $.
Specifications
| Cutting Diameter (Decimal Inch): 0.5000 | Tool Material: Solid Carbide |
| Shank Type: Cylindrical | Shank Diameter (Inch): 1/2 |
| Shank Diameter (Inch – 0 Decimals): 0.5000 | Shank Diameter (Decimal Inch): 0.5000 |
| Insert Holding Method: Screw | Compatible Insert Style: HBR D.50; HCR D.50; HBF D.50 |
| Toolholder Style: HCM D.50 | Tapered Neck: No |
| Overall Length (Decimal Inch): 4.7000 | Series: BallPlus |
| Head Length (Decimal Inch): 1.2000 | Tool Application: Milling |
| Standards: ISO 13399 | Weldon Flat: No |
| Neck Diameter (Decimal Inch): 0.4170 | Manufacturers Catalog Number: HCM D.50-A-L4.7-C.50 |
| Cutting Diameter (Inch): 1/2 | Number Of Flutes: 1 |
| Coolant Through: No | Number of Ball Nose Inserts: 1 |
| UNSPSC Code: 27112803 | Country of Origin: Israel |
| Cutting Diameter (Decimal Inch): 0.5000 | |
| Tool Material: Solid Carbide | |
| Shank Type: Cylindrical | |
| Shank Diameter (Inch): 1/2 | |
| Shank Diameter (Inch – 0 Decimals): 0.5000 | |
| Shank Diameter (Decimal Inch): 0.5000 | |
| Insert Holding Method: Screw | |
| Compatible Insert Style: HBR D.50; HCR D.50; HBF D.50 | |
| Toolholder Style: HCM D.50 | |
| Tapered Neck: No | |
| Overall Length (Decimal Inch): 4.7000 | |
| Series: BallPlus | |
| Head Length (Decimal Inch): 1.2000 | |
| Tool Application: Milling | |
| Standards: ISO 13399 | |
| Weldon Flat: No | |
| Neck Diameter (Decimal Inch): 0.4170 | |
| Manufacturers Catalog Number: HCM D.50-A-L4.7-C.50 | |
| Cutting Diameter (Inch): 1/2 | |
| Number Of Flutes: 1 | |
| Coolant Through: No | |
| Number of Ball Nose Inserts: 1 | |
| UNSPSC Code: 27112803 | |
| Country of Origin: Israel |
| MSC# | 84394857 |
| Mfr# | 3103599 |
| Big Book# | 698 |
