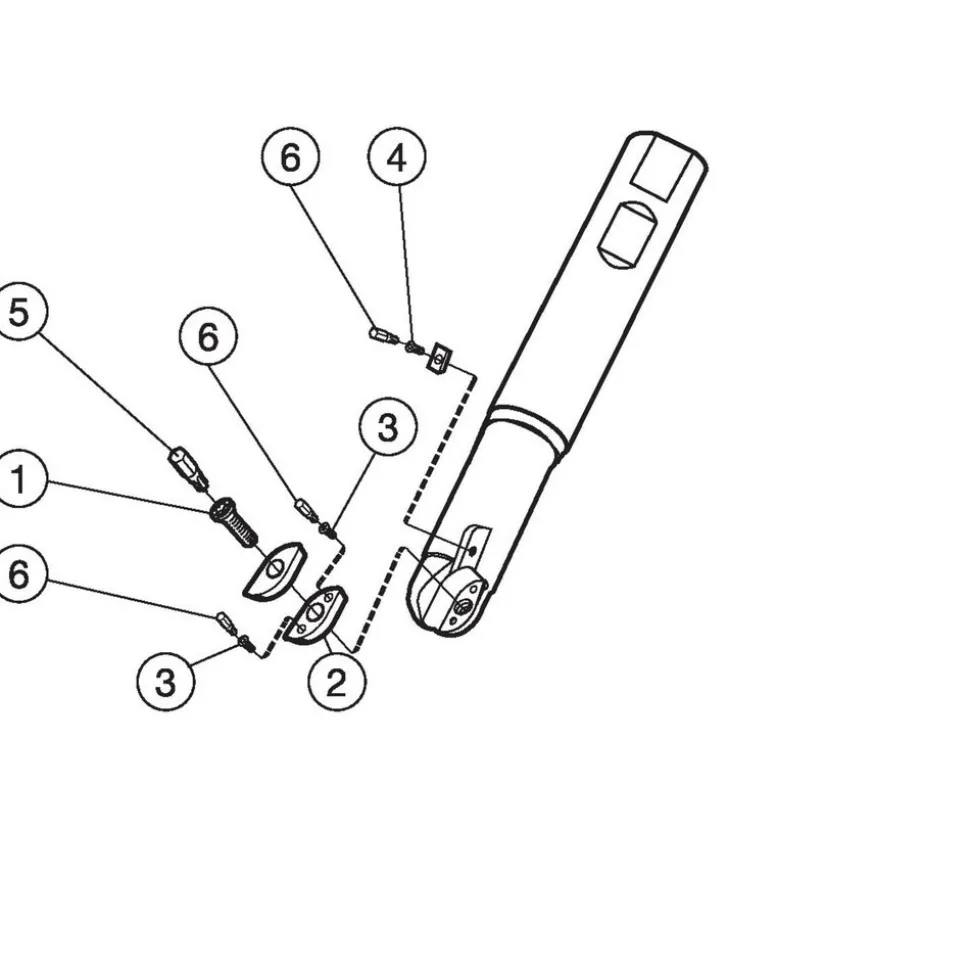

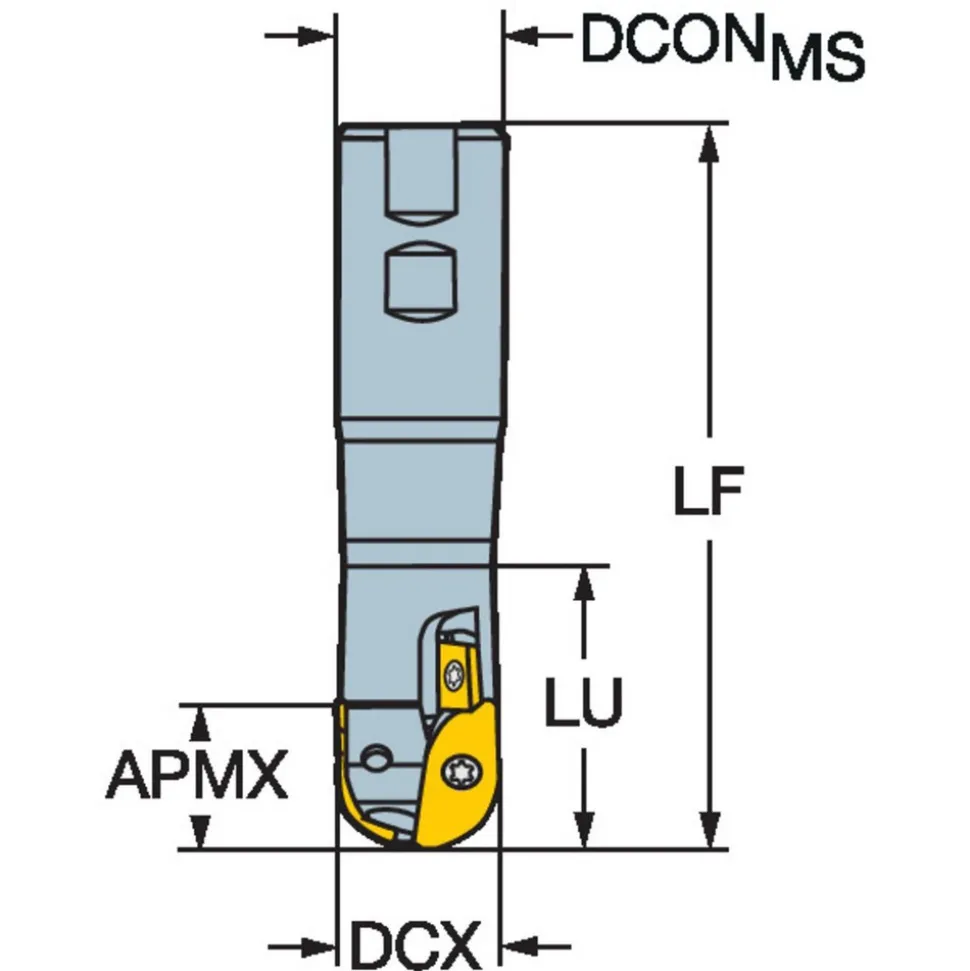

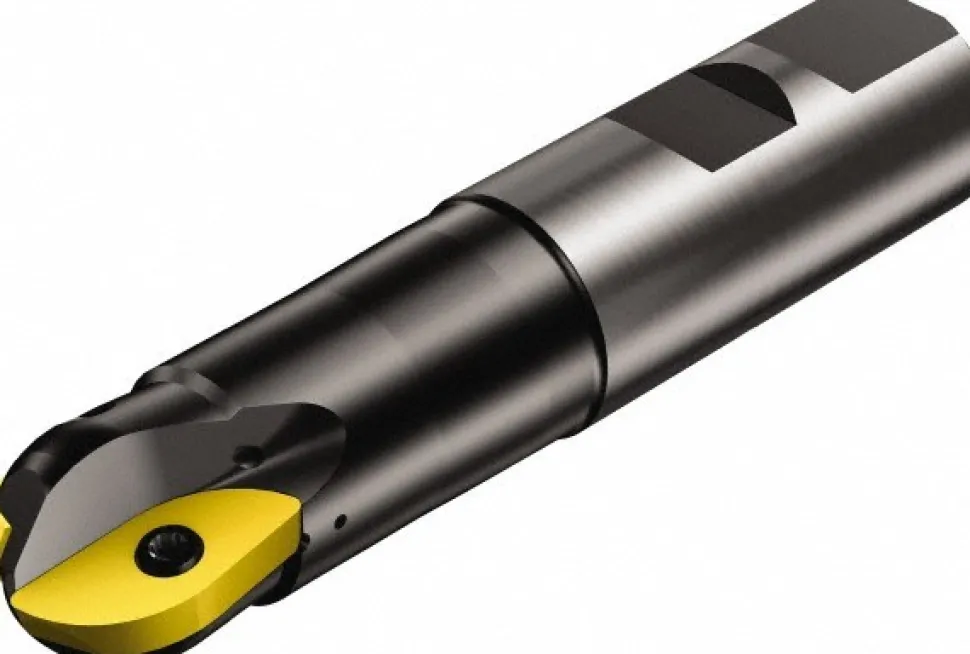

Indexable Ball Nose End Mill: 1″ Cut Dia, Steel, 5.7811″ OAL
Original price was: 716,00 $.124,89 $Current price is: 124,89 $.
Specifications
| Cutting Diameter (Decimal Inch): 1.0000 | Tool Material: Steel |
| Maximum Depth of Cut (Decimal Inch): 0.8930 | Maximum Depth of Cut (mm): 22.68 |
| Shank Type: Weldon Flat | Insert Holding Method: Screw |
| Compatible Insert Style: RA216-2504 | Toolholder Style: RA216..Mxx |
| Overall Length (Decimal Inch): 5.7811 | Overall Length (mm): 146.84 |
| Series: CoroMill 216 | Head Length (mm): 88.90 |
| Head Length (Decimal Inch): 3.5000 | Maximum RPM: 24000 |
| Weldon Flat: Yes | Projection (Decimal Inch): 3.5000 |
| Projection (Inch): 3-1/2 | Cutting Diameter (Inch): 1 |
| Number Of Flutes: 2 | Coolant Through: Yes |
| Number of Ball Nose Inserts: 2 | UNSPSC Code: 27112803 |
| Country of Origin: UNITED STATES | |
| Cutting Diameter (Decimal Inch): 1.0000 | |
| Tool Material: Steel | |
| Maximum Depth of Cut (Decimal Inch): 0.8930 | |
| Maximum Depth of Cut (mm): 22.68 | |
| Shank Type: Weldon Flat | |
| Insert Holding Method: Screw | |
| Compatible Insert Style: RA216-2504 | |
| Toolholder Style: RA216..Mxx | |
| Overall Length (Decimal Inch): 5.7811 | |
| Overall Length (mm): 146.84 | |
| Series: CoroMill 216 | |
| Head Length (mm): 88.90 | |
| Head Length (Decimal Inch): 3.5000 | |
| Maximum RPM: 24000 | |
| Weldon Flat: Yes | |
| Projection (Decimal Inch): 3.5000 | |
| Projection (Inch): 3-1/2 | |
| Cutting Diameter (Inch): 1 | |
| Number Of Flutes: 2 | |
| Coolant Through: Yes | |
| Number of Ball Nose Inserts: 2 | |
| UNSPSC Code: 27112803 | |
| Country of Origin: UNITED STATES |
| MSC# | 52064763 |
| Mfr# | 5740223 |
