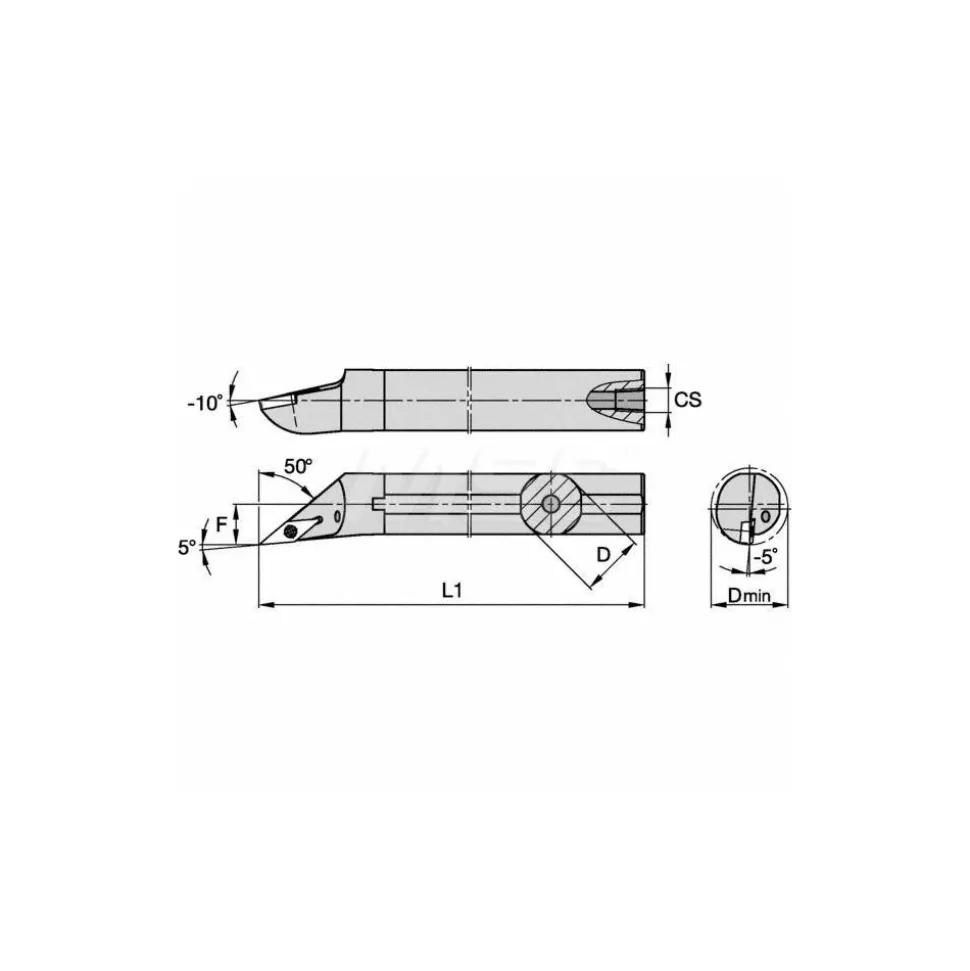

Indexable Boring Bar: A16SVMBR3E, 32.66 mm Min Bore, Right Hand, 25.40 mm Shank Dia, Steel
140,89 $
Specifications
| Minimum Bore Diameter (mm): 32.66 | Minimum Bore Diameter (Decimal Inch): 1.2860 |
| Toolholder Style: A-SVMB | Tool Material: Steel |
| Insert Compatibility: VB.. | Shank Diameter (mm): 25.40 |
| Shank Diameter (Inch): 1 | Hand of Holder: Right Hand |
| Overall Length (Decimal Inch): 12.0000 | Overall Length (mm): 304.80 |
| Insert Holding Method: Screw | Rake: Negative |
| Rake Angle: 10.000 | Insert Inscribed Circle (Inch): 3/8 |
| Multi-use Tool: No | Center to Cutting Edge (Decimal Inch): 0.6400 |
| Coolant Hole Thread Size (Inch): 1/4-18 NPT | UNSPSC Code: 23241601 |
| Insert Thickness (Inch): 3/16 | Coolant Through: Yes |
| Country of Origin: UNITED STATES | |
| Minimum Bore Diameter (mm): 32.66 | |
| Minimum Bore Diameter (Decimal Inch): 1.2860 | |
| Toolholder Style: A-SVMB | |
| Tool Material: Steel | |
| Insert Compatibility: VB.. | |
| Shank Diameter (mm): 25.40 | |
| Shank Diameter (Inch): 1 | |
| Hand of Holder: Right Hand | |
| Overall Length (Decimal Inch): 12.0000 | |
| Overall Length (mm): 304.80 | |
| Insert Holding Method: Screw | |
| Rake: Negative | |
| Rake Angle: 10.000 | |
| Insert Inscribed Circle (Inch): 3/8 | |
| Multi-use Tool: No | |
| Center to Cutting Edge (Decimal Inch): 0.6400 | |
| Coolant Hole Thread Size (Inch): 1/4-18 NPT | |
| UNSPSC Code: 23241601 | |
| Insert Thickness (Inch): 3/16 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 86461571 |
| Mfr# | 1236018 |
| Big Book# | 853 |
