Indexable Boring Bar: A16T-SCLCR3, 30.50 mm Min Bore, Right Hand, 25.40 mm Shank Dia, -5.000 deg Lead Angle, Steel
140,99 $

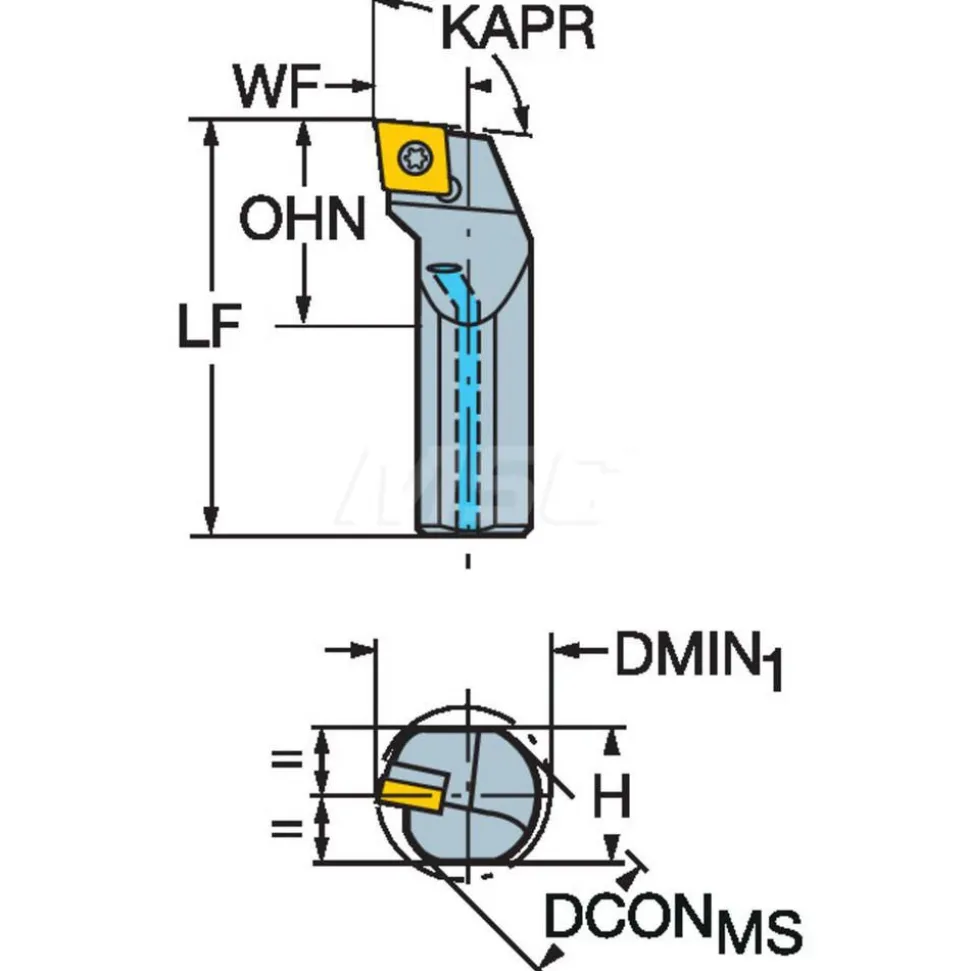

Specifications
| Minimum Bore Diameter (mm): 30.50 | Minimum Bore Diameter (Decimal Inch): 1.2008 |
| Toolholder Style: A-SCLC | Tool Material: Steel |
| Insert Compatibility: CCMT 32.52 | Shank Diameter (mm): 25.40 |
| Shank Diameter (Inch): 1 | Hand of Holder: Right Hand |
| Overall Length (Decimal Inch): 12.0000 | Overall Length (mm): 304.80 |
| Overall Length (Inch): 12 | Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch): 1.2008 |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch): 1.2008 | Insert Holding Method: Screw Clamping |
| Rake: Neutral | Rake Angle: 0.000 |
| Lead Angle: -5.000 | Series: CoroTurn 107 |
| Insert Inscribed Circle (Inch): 3/8 | Insert Inscribed Circle (Decimal Inch): 0.3750 |
| Insert Inscribed Circle (mm): 9.53 | Multi-use Tool: Yes |
| Back of Bar to Cutting Edge (Decimal Inch): 12.0000 | Back of Bar to Cutting Edge (mm): 304.80 |
| Center to Cutting Edge (Decimal Inch): 0.6400 | Center to Cutting Edge (mm): 16.26 |
| Number of Inserts Used on Toolholder: 1 | Neck Diameter (Decimal Inch): 1.0000 |
| UNSPSC Code: 23241601 | Neck Diameter (Inch): 1 |
| Insert Thickness (Decimal Inch): 0.1563 | Insert Thickness (Inch): 5/32 |
| Manufacturers Catalog Number: A16T-SCLCR 3 | Coolant Through: Yes |
| Country of Origin: Sweden | |
| Minimum Bore Diameter (mm): 30.50 | |
| Minimum Bore Diameter (Decimal Inch): 1.2008 | |
| Toolholder Style: A-SCLC | |
| Tool Material: Steel | |
| Insert Compatibility: CCMT 32.52 | |
| Shank Diameter (mm): 25.40 | |
| Shank Diameter (Inch): 1 | |
| Hand of Holder: Right Hand | |
| Overall Length (Decimal Inch): 12.0000 | |
| Overall Length (mm): 304.80 | |
| Overall Length (Inch): 12 | |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch): 1.2008 | |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch): 1.2008 | |
| Insert Holding Method: Screw Clamping | |
| Rake: Neutral | |
| Rake Angle: 0.000 | |
| Lead Angle: -5.000 | |
| Series: CoroTurn 107 | |
| Insert Inscribed Circle (Inch): 3/8 | |
| Insert Inscribed Circle (Decimal Inch): 0.3750 | |
| Insert Inscribed Circle (mm): 9.53 | |
| Multi-use Tool: Yes | |
| Back of Bar to Cutting Edge (Decimal Inch): 12.0000 | |
| Back of Bar to Cutting Edge (mm): 304.80 | |
| Center to Cutting Edge (Decimal Inch): 0.6400 | |
| Center to Cutting Edge (mm): 16.26 | |
| Number of Inserts Used on Toolholder: 1 | |
| Neck Diameter (Decimal Inch): 1.0000 | |
| UNSPSC Code: 23241601 | |
| Neck Diameter (Inch): 1 | |
| Insert Thickness (Decimal Inch): 0.1563 | |
| Insert Thickness (Inch): 5/32 | |
| Manufacturers Catalog Number: A16T-SCLCR 3 | |
| Coolant Through: Yes | |
| Country of Origin: Sweden |
| MSC# | 87467783 |
| Mfr# | 5727597 |
