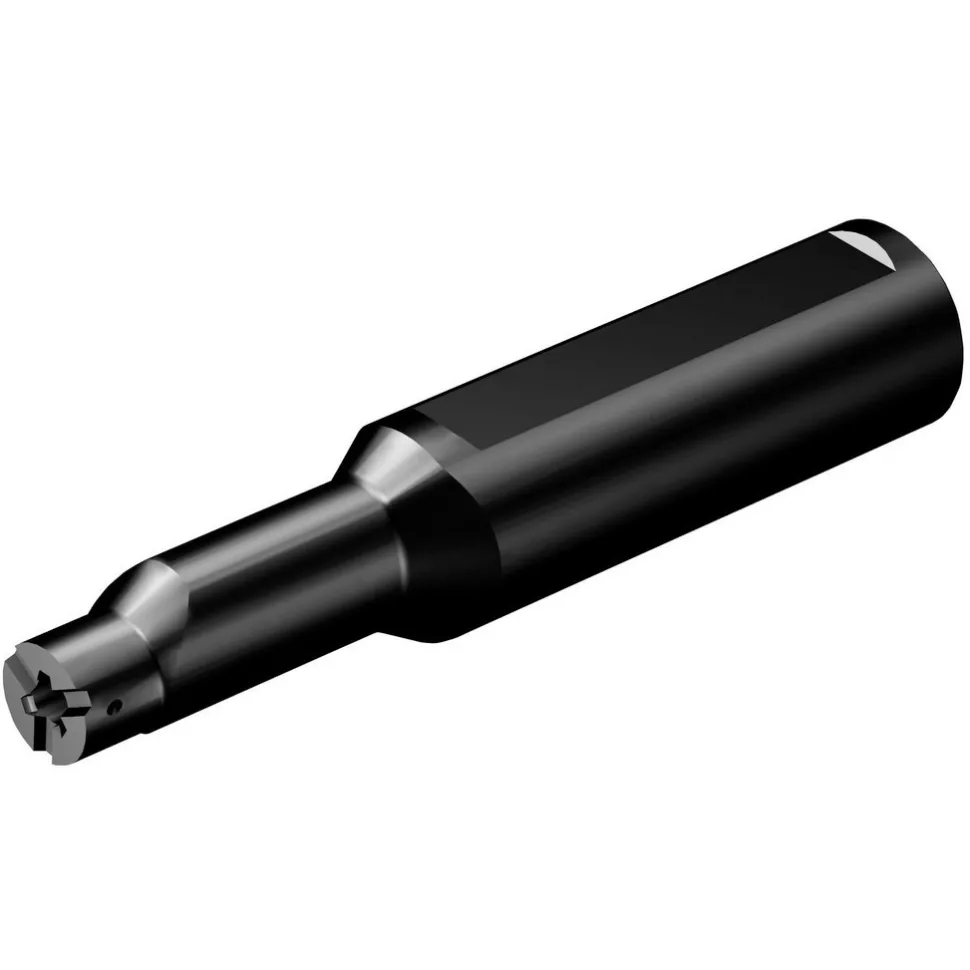

Indexable Boring Bar: MB-E0500-12-07, 1/2″ Min Bore, 1/2″ Shank Dia, Solid Carbide
126,99 $

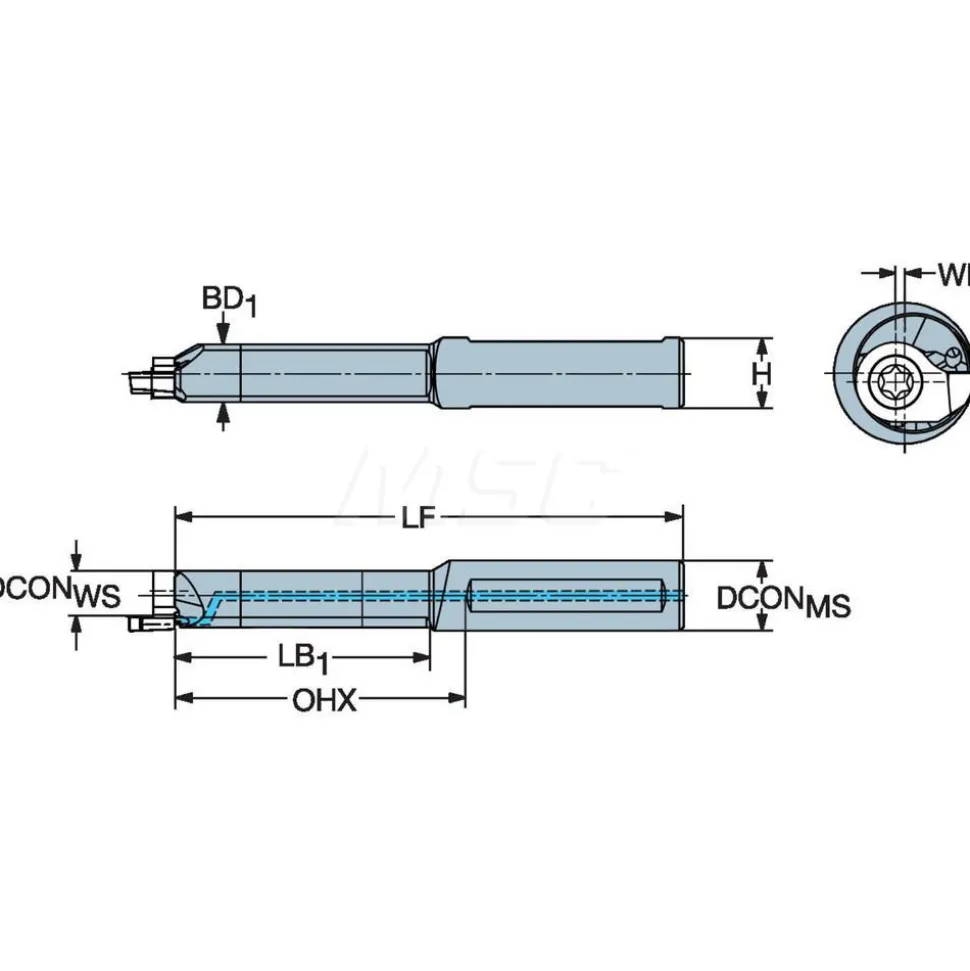

Specifications
| Minimum Bore Diameter (mm): 12.70 | Minimum Bore Diameter (Decimal Inch): 0.5000 |
| Minimum Bore Diameter (Inch): 1/2 | Maximum Bore Depth (mm): 35.00 |
| Toolholder Style: MB-E0500-12-07 | Tool Material: Solid Carbide |
| Insert Compatibility: MB-07 | Shank Diameter (mm): 12.70 |
| Shank Diameter (Inch): 1/2 | Overall Length (Decimal Inch): 3.9370 |
| Overall Length (mm): 100.00 | Insert Included: No |
| Series: CoroCut MB | Back of Bar to Cutting Edge (mm): 96.20 |
| Center to Cutting Edge (mm): 7.40 | UNSPSC Code: 27112807 |
| Manufacturers Catalog Number: MB-E0500-12-07 | Coolant Through: Yes |
| Country of Origin: Turkey | |
| Minimum Bore Diameter (mm): 12.70 | |
| Minimum Bore Diameter (Decimal Inch): 0.5000 | |
| Minimum Bore Diameter (Inch): 1/2 | |
| Maximum Bore Depth (mm): 35.00 | |
| Toolholder Style: MB-E0500-12-07 | |
| Tool Material: Solid Carbide | |
| Insert Compatibility: MB-07 | |
| Shank Diameter (mm): 12.70 | |
| Shank Diameter (Inch): 1/2 | |
| Overall Length (Decimal Inch): 3.9370 | |
| Overall Length (mm): 100.00 | |
| Insert Included: No | |
| Series: CoroCut MB | |
| Back of Bar to Cutting Edge (mm): 96.20 | |
| Center to Cutting Edge (mm): 7.40 | |
| UNSPSC Code: 27112807 | |
| Manufacturers Catalog Number: MB-E0500-12-07 | |
| Coolant Through: Yes | |
| Country of Origin: Turkey |
| MSC# | 40743155 |
| Mfr# | 5735537 |
