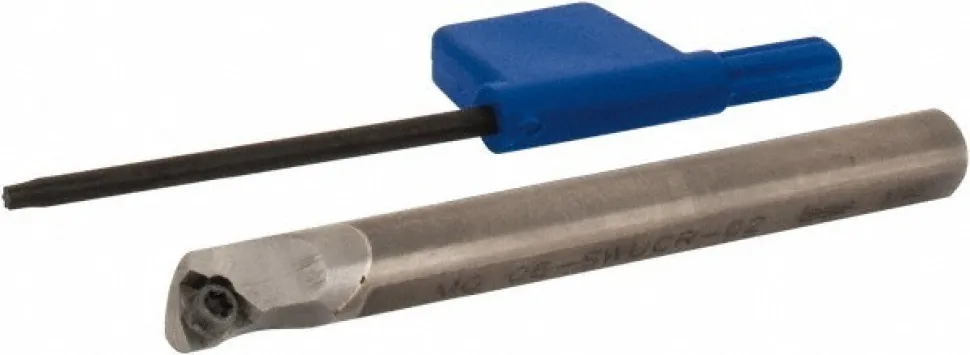

Indexable Boring Bar: MG 06-SWUCR-02, 6.60 mm Min Bore, Right Hand, 6.00 mm Shank Dia, 93.000 deg Lead Angle, Solid Carbide
Original price was: 212,00 $.140,89 $Current price is: 140,89 $.
Specifications
| Minimum Bore Diameter (mm): 6.60 | Minimum Bore Diameter (Decimal Inch): 0.2598 |
| Maximum Bore Depth (mm): 18.00 | Toolholder Style: MG-SWUC |
| Tool Material: Solid Carbide | Shank Diameter (mm): 6.00 |
| Hand of Holder: Right Hand | Overall Length (Decimal Inch): 2.3622 |
| Overall Length (mm): 60.00 | Insert Holding Method: Screw |
| Compatible Insert Shape: Trigon | Rake: Neutral (Axial); Positive (Radial) |
| Lead Angle: 93.000 | Series: Isoturn |
| Multi-use Tool: No | Cutting Tool Application: Turning; Boring |
| Center to Cutting Edge (Decimal Inch): 0.1299 | Center to Cutting Edge (mm): 3.30 |
| Standards: ISO 13399 | UNSPSC Code: 23241601 |
| Coolant Through: Yes | Country of Origin: Israel |
| Minimum Bore Diameter (mm): 6.60 | |
| Minimum Bore Diameter (Decimal Inch): 0.2598 | |
| Maximum Bore Depth (mm): 18.00 | |
| Toolholder Style: MG-SWUC | |
| Tool Material: Solid Carbide | |
| Shank Diameter (mm): 6.00 | |
| Hand of Holder: Right Hand | |
| Overall Length (Decimal Inch): 2.3622 | |
| Overall Length (mm): 60.00 | |
| Insert Holding Method: Screw | |
| Compatible Insert Shape: Trigon | |
| Rake: Neutral (Axial); Positive (Radial) | |
| Lead Angle: 93.000 | |
| Series: Isoturn | |
| Multi-use Tool: No | |
| Cutting Tool Application: Turning; Boring | |
| Center to Cutting Edge (Decimal Inch): 0.1299 | |
| Center to Cutting Edge (mm): 3.30 | |
| Standards: ISO 13399 | |
| UNSPSC Code: 23241601 | |
| Coolant Through: Yes | |
| Country of Origin: Israel |
| MSC# | 07077175 |
| Mfr# | 3602007 |
