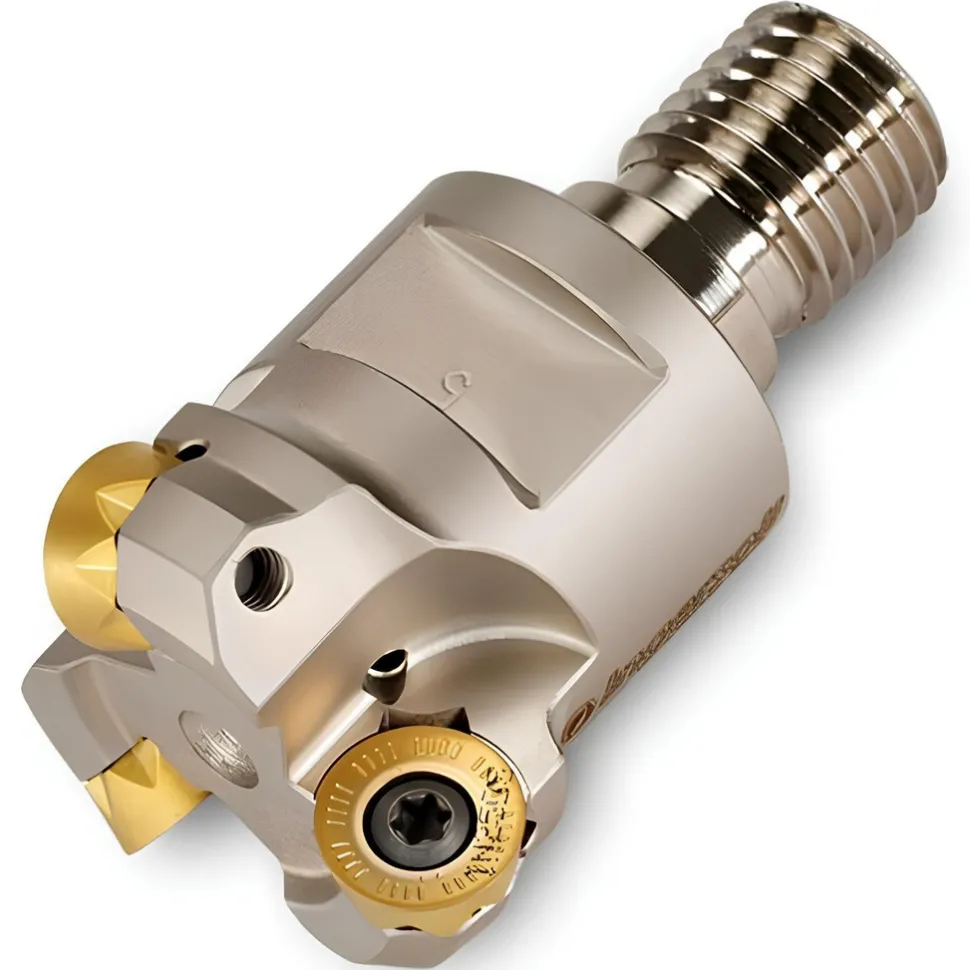

Indexable Copy End Mill: 0.78 to 1-1/4″ Cut Dia, 0.2362″ Max Depth of Cut, Through Coolant
138,89 $
Specifications
| Minimum Cutting Diameter (Decimal Inch): 0.7800 | Maximum Cutting Diameter (Decimal Inch): 1.2500 |
| Maximum Cutting Diameter (Inch): 1-1/4 | Maximum Depth of Cut (Decimal Inch): 0.2362 |
| Toolholder Style: 15B1B | Shank Type: Modular Connection |
| Shank Diameter (Decimal Inch): 1.1300 | Shank Diameter: 1.1300 |
| Maximum Ramping Angle: 5.0 | Compatible Insert Style: RJET |
| Insert Holding Method: Screw | Compatible Insert Size Code: 1204 |
| Number Of Cutter Inserts: 3 | Overall Length (Inch): 1-1/2 |
| Overall Length (Decimal Inch): 1.5000 | Series: 15B1B |
| Flute Type: Straight | Modular Connection Size: M16 |
| Functional Length (Decimal Inch): 1.5000 | Tool Application: Facing; Pocketing; Milling; Ramping |
| Tool Performance: General Purpose | Primary Workpiece Material: Universal |
| Toolholder Material: Steel | UNSPSC Code: 27112803 |
| Number Of Flutes: 3 | Coolant Through: Yes |
| Minimum Cutting Diameter (Decimal Inch): 0.7800 | |
| Maximum Cutting Diameter (Decimal Inch): 1.2500 | |
| Maximum Cutting Diameter (Inch): 1-1/4 | |
| Maximum Depth of Cut (Decimal Inch): 0.2362 | |
| Toolholder Style: 15B1B | |
| Shank Type: Modular Connection | |
| Shank Diameter (Decimal Inch): 1.1300 | |
| Shank Diameter: 1.1300 | |
| Maximum Ramping Angle: 5.0 | |
| Compatible Insert Style: RJET | |
| Insert Holding Method: Screw | |
| Compatible Insert Size Code: 1204 | |
| Number Of Cutter Inserts: 3 | |
| Overall Length (Inch): 1-1/2 | |
| Overall Length (Decimal Inch): 1.5000 | |
| Series: 15B1B | |
| Flute Type: Straight | |
| Modular Connection Size: M16 | |
| Functional Length (Decimal Inch): 1.5000 | |
| Tool Application: Facing; Pocketing; Milling; Ramping | |
| Tool Performance: General Purpose | |
| Primary Workpiece Material: Universal | |
| Toolholder Material: Steel | |
| UNSPSC Code: 27112803 | |
| Number Of Flutes: 3 | |
| Coolant Through: Yes |
| MSC# | 14245989 |
| Mfr# | 3032517 |
