Sale!

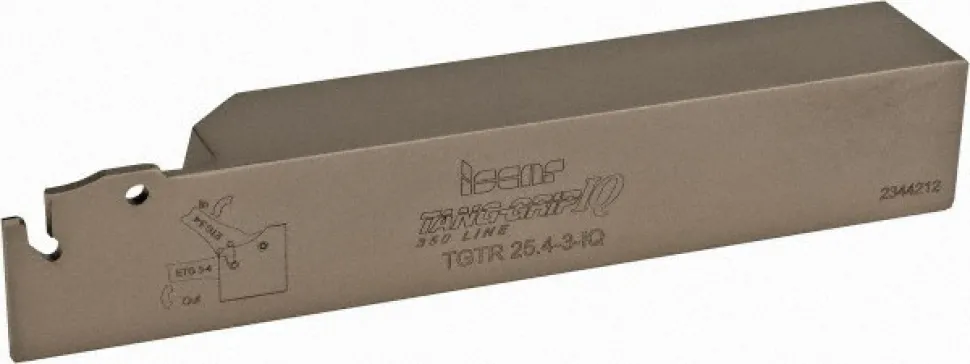

Indexable Cutoff Toolholder: 2-1/4″ Max Workpiece Dia, 0.11″ Min Insert Width, Right Hand
Original price was: 209,00 $.120,89 $Current price is: 120,89 $.

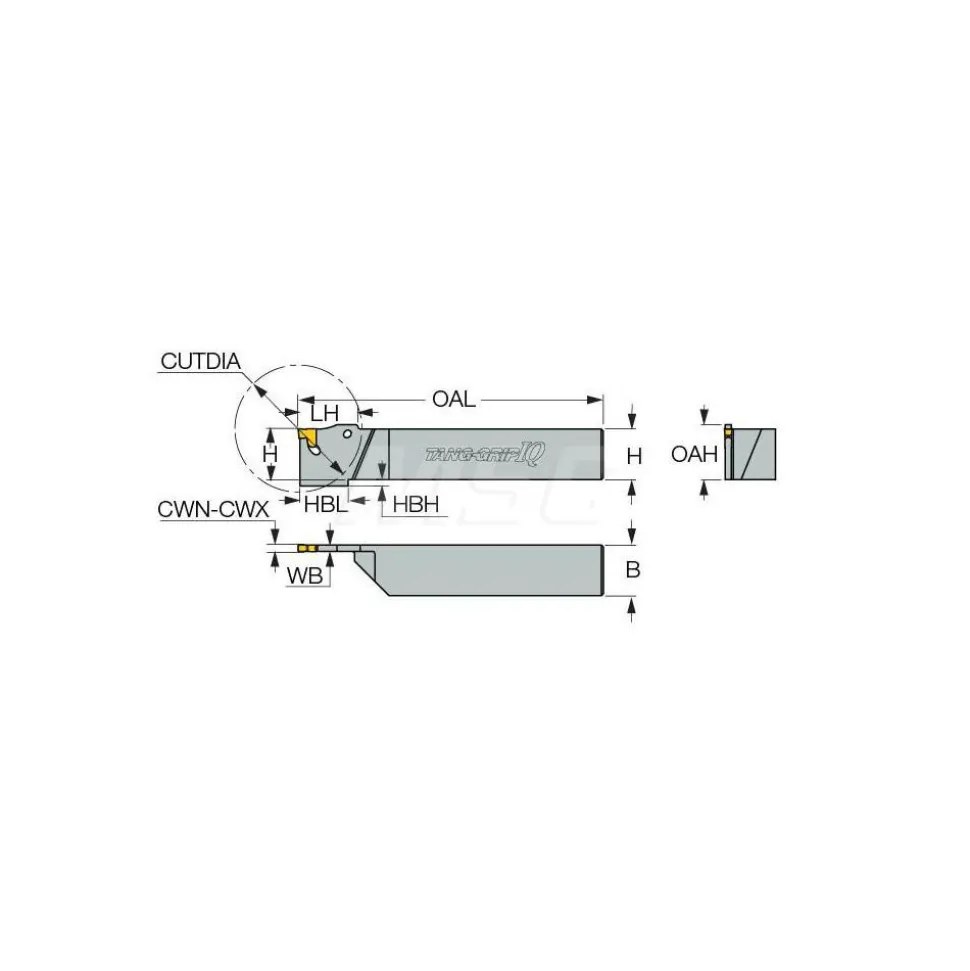

Specifications
| Hand of Holder: Right Hand | Maximum Workpiece Diameter (Decimal Inch): 2.2500 |
| Toolholder Style: TGT | Compatible Insert Size Code: TAG L2C-6D; TAG.. 6..; TAG L4J-4D; TAG N1.4J; TAG.. 8..; TAG L3JS-15D; TAG L1.4JS-10D; TAG L5C-4D; TAG L4C-4D; TAG L3J-15D; TAG L6.3J-4D; TAG L3J-6D; TAG N1.4C; TAG L2JS-15D; TAG L3JS-6D; TAG L1.4J-8D; TAG L6.3C-4D; TAG L2JS-6D; TAG L5J-4D; TAG L2J-15D; TAG L3C-6D; TAG L2J-6D; TAG L3C-15D |
| Overall Length (Decimal Inch): 5.9050 | Insert Holding Method: Self Grip |
| Shank Width/Diameter (Decimal Inch): 1.0000 | Shank Height (Decimal Inch): 1.0000 |
| Shank Length (Decimal Inch): 5.0100 | Series: Tang-GripIQ |
| Cutting Tool Application: Grooving; Turning; Parting | Head Height (Decimal Inch): 1.0700 |
| Head Length (Decimal Inch): 0.9000 | Back of Bar to Cutting Edge (Decimal Inch): 1.0000 |
| Standards: ISO 13399 | Minimum Insert Width (Decimal Inch): 0.1100 |
| Maximum Insert Width (Decimal Inch): 0.1380 | UNSPSC Code: 23153308 |
| Blade Width (Decimal Inch): 0.1000 | Complete Insert Compatibility: TAG L2C-6D; TAG L4J-4D; TAG N1.4J; TAG L3JS-15D; TAG L1.4JS-10D; TAG L5C-4D; TAG L4C-4D; TAG L3J-15D; TAG L6.3J-4D; TAG L3J-6D; TAG N1.4C; TAG L2JS-15D; TAG L3JS-6D; TAG L1.4J-8D; TAG L6.3C-4D; TAG L2JS-6D; TAG L5J-4D; TAG L2J-15D; TAG L3C-6D; TAG L2J-6D; TAG L3C-15D |
| Coolant Through: No | Country of Origin: Israel |
| Hand of Holder: Right Hand | |
| Maximum Workpiece Diameter (Decimal Inch): 2.2500 | |
| Toolholder Style: TGT | |
| Compatible Insert Size Code: TAG L2C-6D; TAG.. 6..; TAG L4J-4D; TAG N1.4J; TAG.. 8..; TAG L3JS-15D; TAG L1.4JS-10D; TAG L5C-4D; TAG L4C-4D; TAG L3J-15D; TAG L6.3J-4D; TAG L3J-6D; TAG N1.4C; TAG L2JS-15D; TAG L3JS-6D; TAG L1.4J-8D; TAG L6.3C-4D; TAG L2JS-6D; TAG L5J-4D; TAG L2J-15D; TAG L3C-6D; TAG L2J-6D; TAG L3C-15D | |
| Overall Length (Decimal Inch): 5.9050 | |
| Insert Holding Method: Self Grip | |
| Shank Width/Diameter (Decimal Inch): 1.0000 | |
| Shank Height (Decimal Inch): 1.0000 | |
| Shank Length (Decimal Inch): 5.0100 | |
| Series: Tang-GripIQ | |
| Cutting Tool Application: Grooving; Turning; Parting | |
| Head Height (Decimal Inch): 1.0700 | |
| Head Length (Decimal Inch): 0.9000 | |
| Back of Bar to Cutting Edge (Decimal Inch): 1.0000 | |
| Standards: ISO 13399 | |
| Minimum Insert Width (Decimal Inch): 0.1100 | |
| Maximum Insert Width (Decimal Inch): 0.1380 | |
| UNSPSC Code: 23153308 | |
| Blade Width (Decimal Inch): 0.1000 | |
| Complete Insert Compatibility: TAG L2C-6D; TAG L4J-4D; TAG N1.4J; TAG L3JS-15D; TAG L1.4JS-10D; TAG L5C-4D; TAG L4C-4D; TAG L3J-15D; TAG L6.3J-4D; TAG L3J-6D; TAG N1.4C; TAG L2JS-15D; TAG L3JS-6D; TAG L1.4J-8D; TAG L6.3C-4D; TAG L2JS-6D; TAG L5J-4D; TAG L2J-15D; TAG L3C-6D; TAG L2J-6D; TAG L3C-15D | |
| Coolant Through: No | |
| Country of Origin: Israel |
| MSC# | 79777801 |
| Mfr# | 2301826 |
