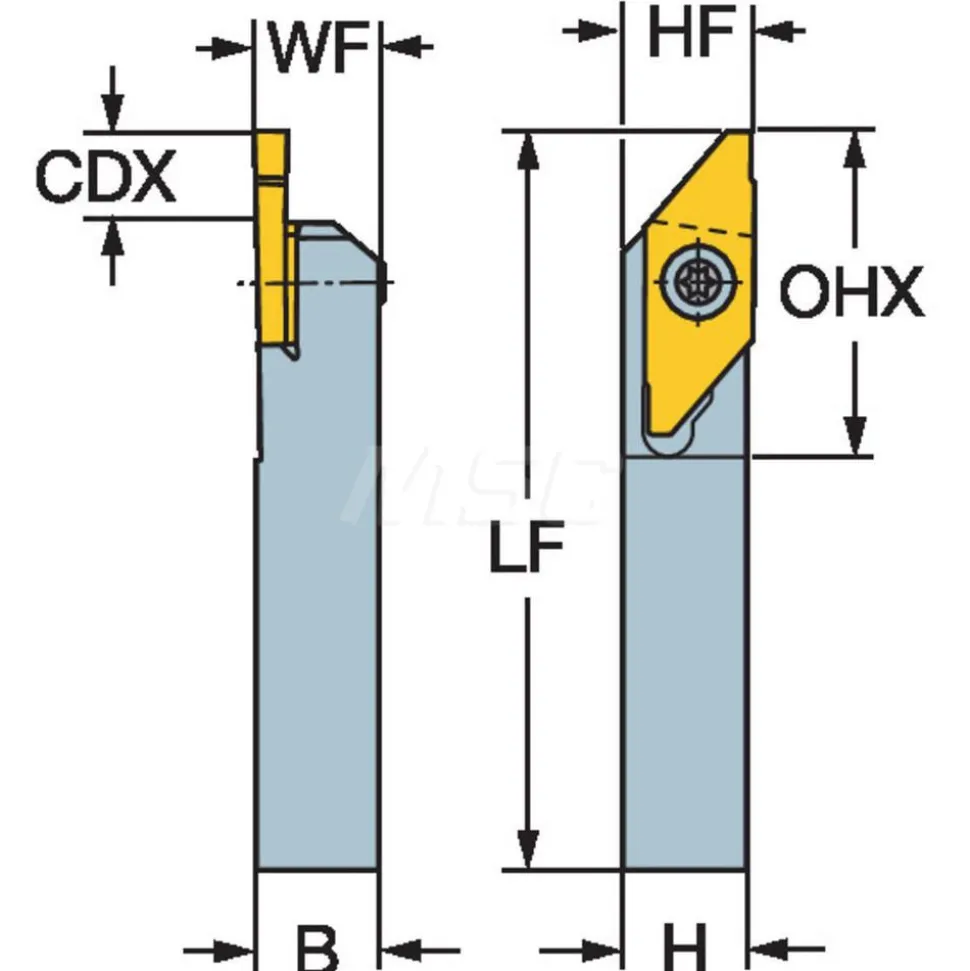

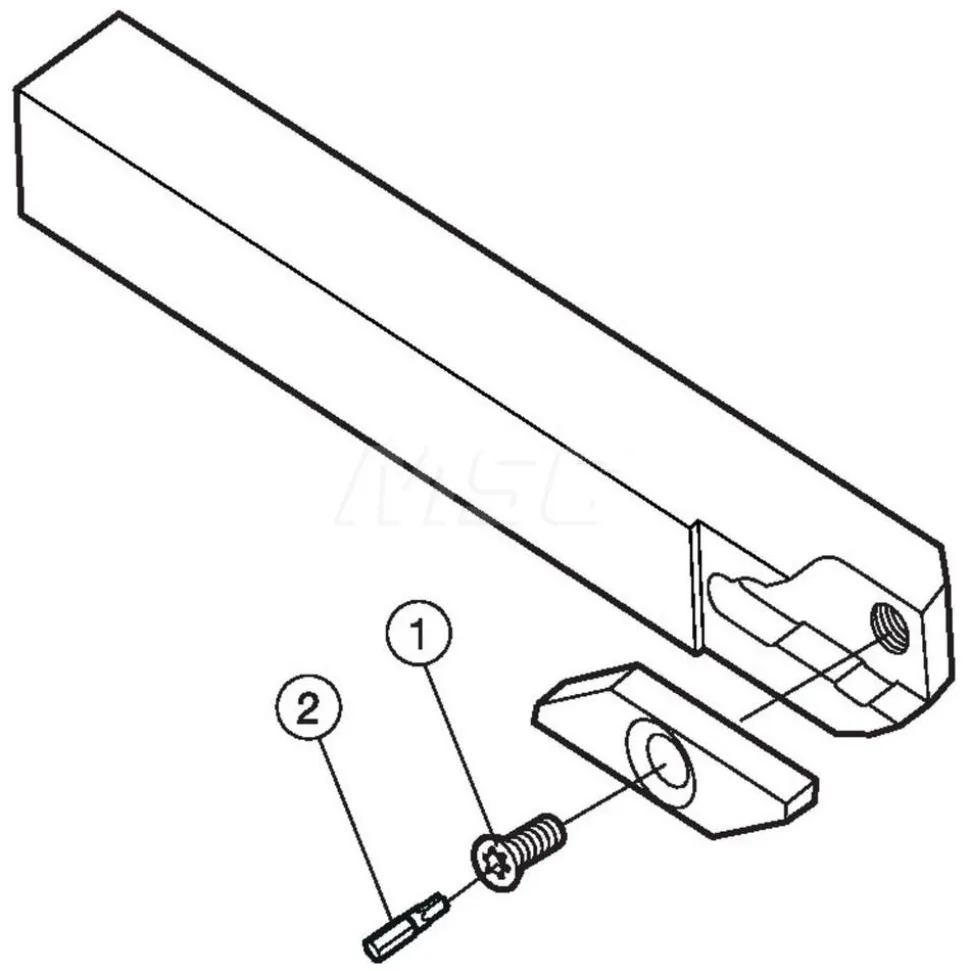

Indexable Cutoff Toolholder: 8.5 mm Max Depth of Cut, 1/2″ Max Workpiece Dia, 1/8″ Min Insert Width, Right Hand
114,89 $
Specifications
| Hand of Holder: Right Hand | Maximum Depth of Cut (Decimal Inch): 0.3346 |
| Maximum Depth of Cut (mm): 8.50 | Maximum Workpiece Diameter (mm): 12.70 |
| Maximum Workpiece Diameter (Decimal Inch): 0.5000 | Maximum Workpiece Diameter (Inch): 1/2 |
| Toolholder Style: SMALR | Multi-use Tool: Yes |
| Compatible Insert Size Code: MACR | Overall Length (Decimal Inch): 5.0000 |
| Overall Length (Inch): 5 | Overall Length (mm): 127.00 |
| Insert Holding Method: Screw | Shank Width/Diameter (Decimal Inch): 0.5000 |
| Shank Width/Diameter (Inch): 1/2 | Shank Width/Diameter (mm): 12.70 |
| Shank Height (Decimal Inch): 0.5000 | Shank Height (mm): 12.70 |
| Shank Height (Inch): 1/2 | Shank Length (Decimal Inch): 5.0000 |
| Series: CoroCut XS | Head Height (mm): 12.70 |
| Head Height (Inch): 1/2 | Head Height (Decimal Inch): 0.5000 |
| Maximum Overhang (Inch): 1.0630 | Back of Bar to Cutting Edge (Decimal Inch): 5.0000 |
| Back of Bar to Cutting Edge (mm): 127.00 | Insert Seat Size: 3 |
| Minimum Insert Width (Decimal Inch): 0.1250 | Minimum Insert Width (Inch): 1/8 |
| Minimum Insert Width (mm): 3.17 | Maximum Insert Width (Decimal Inch): 0.1250 |
| Maximum Insert Width (Inch): 1/8 | Maximum Insert Width (mm): 3.17 |
| UNSPSC Code: 27112809 | Manufacturers Catalog Number: SMALR 08C3 |
| Coolant Through: No | Country of Origin: India |
| Hand of Holder: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.3346 | |
| Maximum Depth of Cut (mm): 8.50 | |
| Maximum Workpiece Diameter (mm): 12.70 | |
| Maximum Workpiece Diameter (Decimal Inch): 0.5000 | |
| Maximum Workpiece Diameter (Inch): 1/2 | |
| Toolholder Style: SMALR | |
| Multi-use Tool: Yes | |
| Compatible Insert Size Code: MACR | |
| Overall Length (Decimal Inch): 5.0000 | |
| Overall Length (Inch): 5 | |
| Overall Length (mm): 127.00 | |
| Insert Holding Method: Screw | |
| Shank Width/Diameter (Decimal Inch): 0.5000 | |
| Shank Width/Diameter (Inch): 1/2 | |
| Shank Width/Diameter (mm): 12.70 | |
| Shank Height (Decimal Inch): 0.5000 | |
| Shank Height (mm): 12.70 | |
| Shank Height (Inch): 1/2 | |
| Shank Length (Decimal Inch): 5.0000 | |
| Series: CoroCut XS | |
| Head Height (mm): 12.70 | |
| Head Height (Inch): 1/2 | |
| Head Height (Decimal Inch): 0.5000 | |
| Maximum Overhang (Inch): 1.0630 | |
| Back of Bar to Cutting Edge (Decimal Inch): 5.0000 | |
| Back of Bar to Cutting Edge (mm): 127.00 | |
| Insert Seat Size: 3 | |
| Minimum Insert Width (Decimal Inch): 0.1250 | |
| Minimum Insert Width (Inch): 1/8 | |
| Minimum Insert Width (mm): 3.17 | |
| Maximum Insert Width (Decimal Inch): 0.1250 | |
| Maximum Insert Width (Inch): 1/8 | |
| Maximum Insert Width (mm): 3.17 | |
| UNSPSC Code: 27112809 | |
| Manufacturers Catalog Number: SMALR 08C3 | |
| Coolant Through: No | |
| Country of Origin: India |
| MSC# | 45157054 |
| Mfr# | 5749982 |
