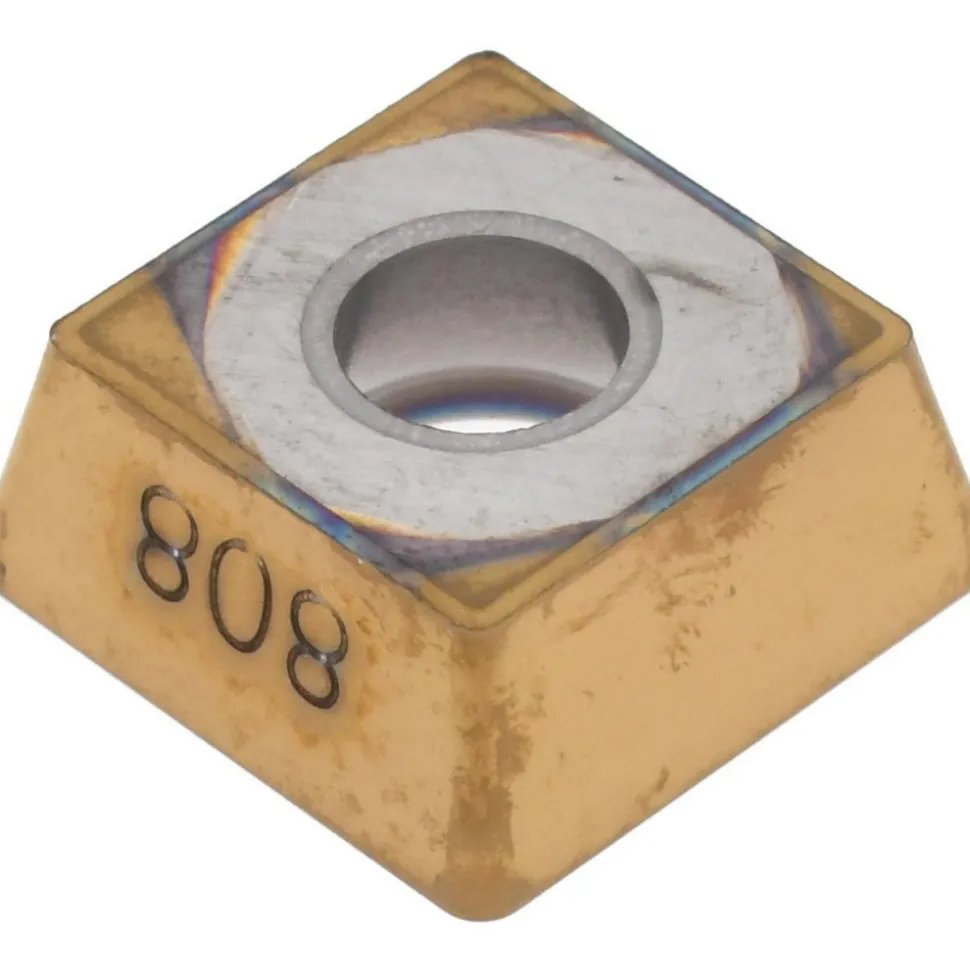

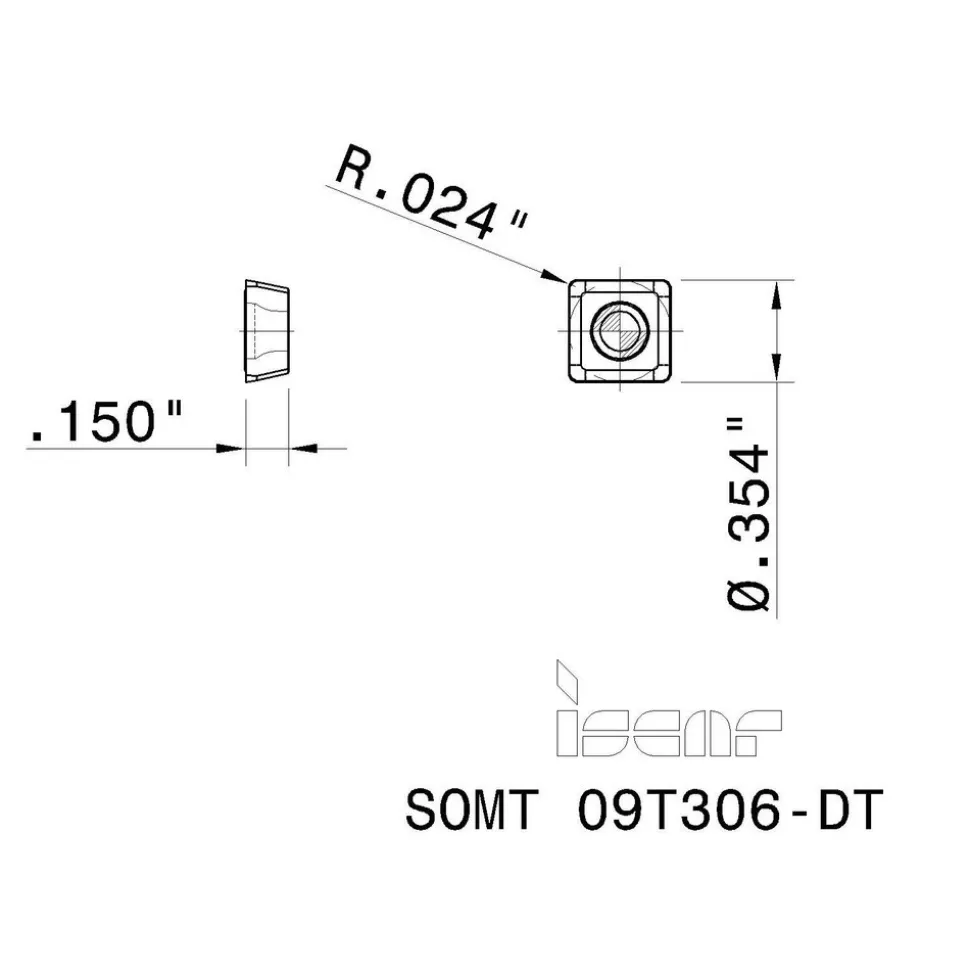

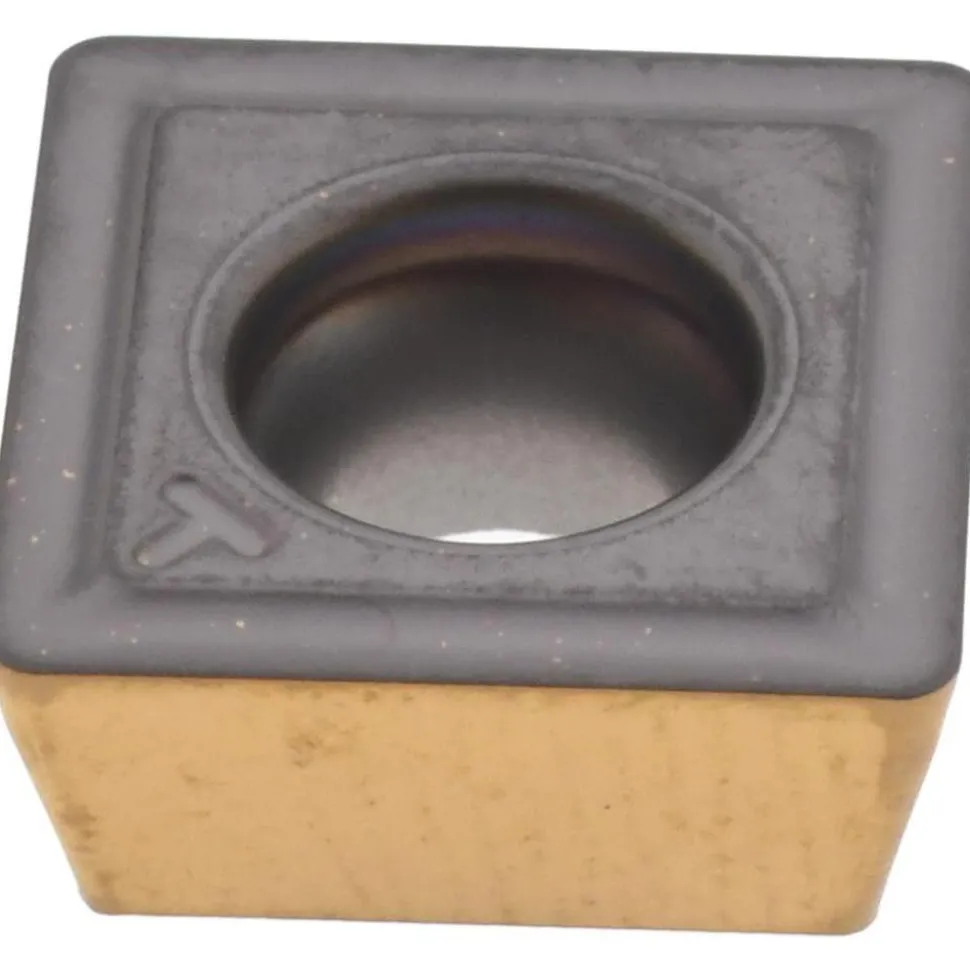

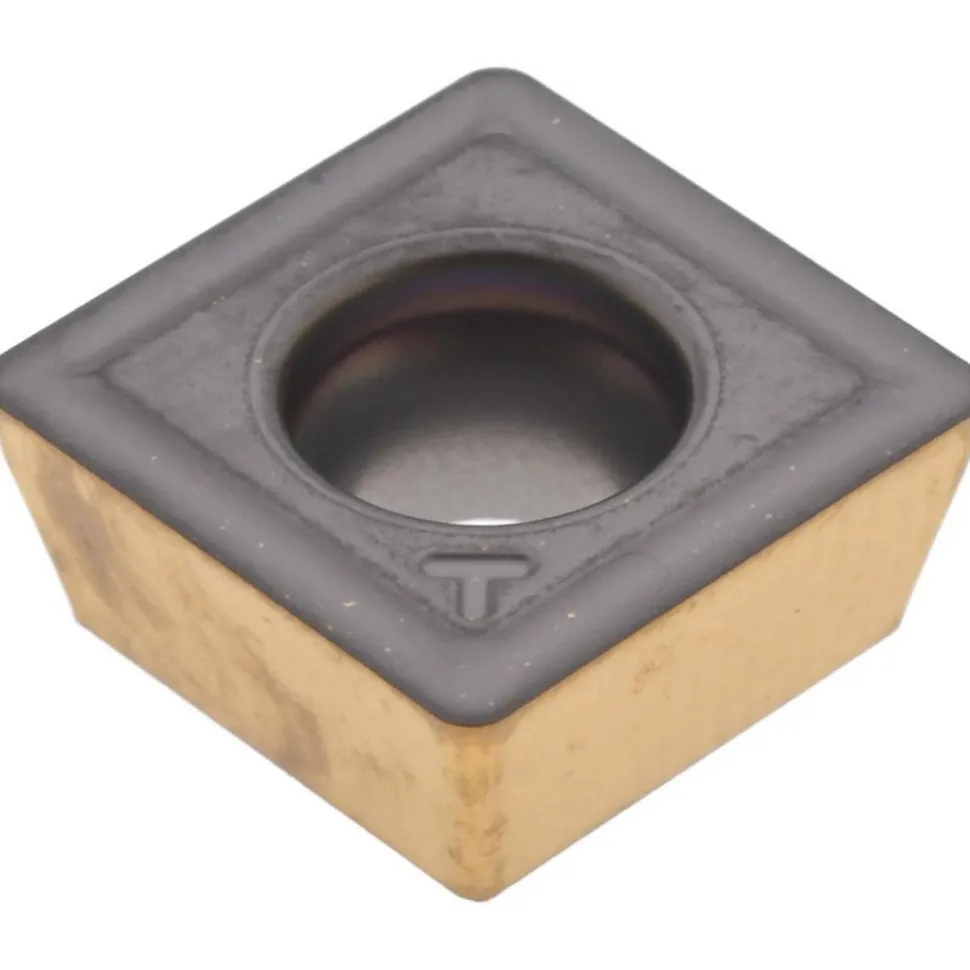

Indexable Drill Insert: SOMT09T306DT IC808, Carbide

17,89 $

Specifications

Insert Style: SOMT	Insert Material: Carbide
Manufacturer Grade: IC808	Inscribed Circle (Decimal Inch): 0.3543
Inscribed Circle (mm): 9.00	Corner Radius (Decimal Inch): 0.0236
Corner Radius (mm): 0.60	Chipbreaker: DT
Series: DR-TWIST	Material Grade: P15-P30
Coating Process: PVD	Shape: Square
Primary Workpiece Material: Universal	Primary Workpiece Material Code: P; S; H; K; M
Iso Code: ISO 13399	Standards: ISO 13399
Insert Size: 09T306	Width (mm – 2 Decimals): 9.00
Length (Mm): 9.00	Width (Decimal Inch – 4 Decimals): 0.3540
Length (Decimal Inch – 4 Decimals): 0.3540	Included Angle Degree: 90
Thickness (Decimal Inch – 4 Decimals): 0.1500	Coating/Finish: TiAlN
Insert Size Code: 09	UNSPSC Code: 23242105
Country of Origin: Israel
Insert Style: SOMT
Insert Material: Carbide
Manufacturer Grade: IC808
Inscribed Circle (Decimal Inch): 0.3543
Inscribed Circle (mm): 9.00
Corner Radius (Decimal Inch): 0.0236
Corner Radius (mm): 0.60
Chipbreaker: DT
Series: DR-TWIST
Material Grade: P15-P30
Coating Process: PVD
Shape: Square
Primary Workpiece Material: Universal
Primary Workpiece Material Code: P; S; H; K; M
Iso Code: ISO 13399
Standards: ISO 13399
Insert Size: 09T306
Width (mm – 2 Decimals): 9.00
Length (Mm): 9.00
Width (Decimal Inch – 4 Decimals): 0.3540
Length (Decimal Inch – 4 Decimals): 0.3540
Included Angle Degree: 90
Thickness (Decimal Inch – 4 Decimals): 0.1500
Coating/Finish: TiAlN
Insert Size Code: 09
UNSPSC Code: 23242105
Country of Origin: Israel
