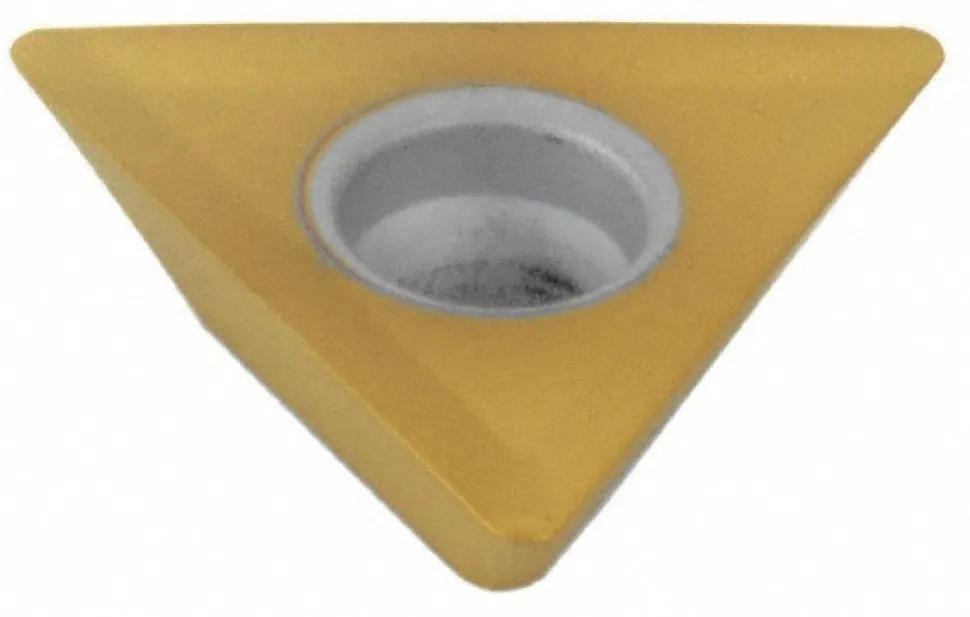

Indexable Drill Insert: TFLT15T308N IN2530, Carbide

22,99 $

Specifications

Insert Style: TFLT	Insert Material: Carbide
Manufacturer Grade: IN2530	Inscribed Circle (Decimal Inch): 0.3750
Corner Radius (Decimal Inch): 0.0310	Chipbreaker: TF
Series: TFLT	Coating Process: PVD
Shape: Triangle	Number Of Cutting Edges: 3
Rake: Positive	Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel
Primary Workpiece Material Code: P; S; M	Ansi Code: TFLP32-01 J
Iso Code: TFLT15T308N	Compatible Drill Style: FAK
Insert Size: 15T308	Width (Decimal Inch – 4 Decimals): 0.5906
Length (Decimal Inch – 4 Decimals): 0.5906	Included Angle Degree: 60
Thickness (Decimal Inch – 4 Decimals): 0.1560	Coating/Finish: TiN; TiAlN
Insert Size Code: 15	Insert Hand: Neutral
UNSPSC Code: 23242105	Country of Origin: UNITED STATES
Insert Style: TFLT
Insert Material: Carbide
Manufacturer Grade: IN2530
Inscribed Circle (Decimal Inch): 0.3750
Corner Radius (Decimal Inch): 0.0310
Chipbreaker: TF
Series: TFLT
Coating Process: PVD
Shape: Triangle
Number Of Cutting Edges: 3
Rake: Positive
Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel
Primary Workpiece Material Code: P; S; M
Ansi Code: TFLP32-01 J
Iso Code: TFLT15T308N
Compatible Drill Style: FAK
Insert Size: 15T308
Width (Decimal Inch – 4 Decimals): 0.5906
Length (Decimal Inch – 4 Decimals): 0.5906
Included Angle Degree: 60
Thickness (Decimal Inch – 4 Decimals): 0.1560
Coating/Finish: TiN; TiAlN
Insert Size Code: 15
Insert Hand: Neutral
UNSPSC Code: 23242105
Country of Origin: UNITED STATES
