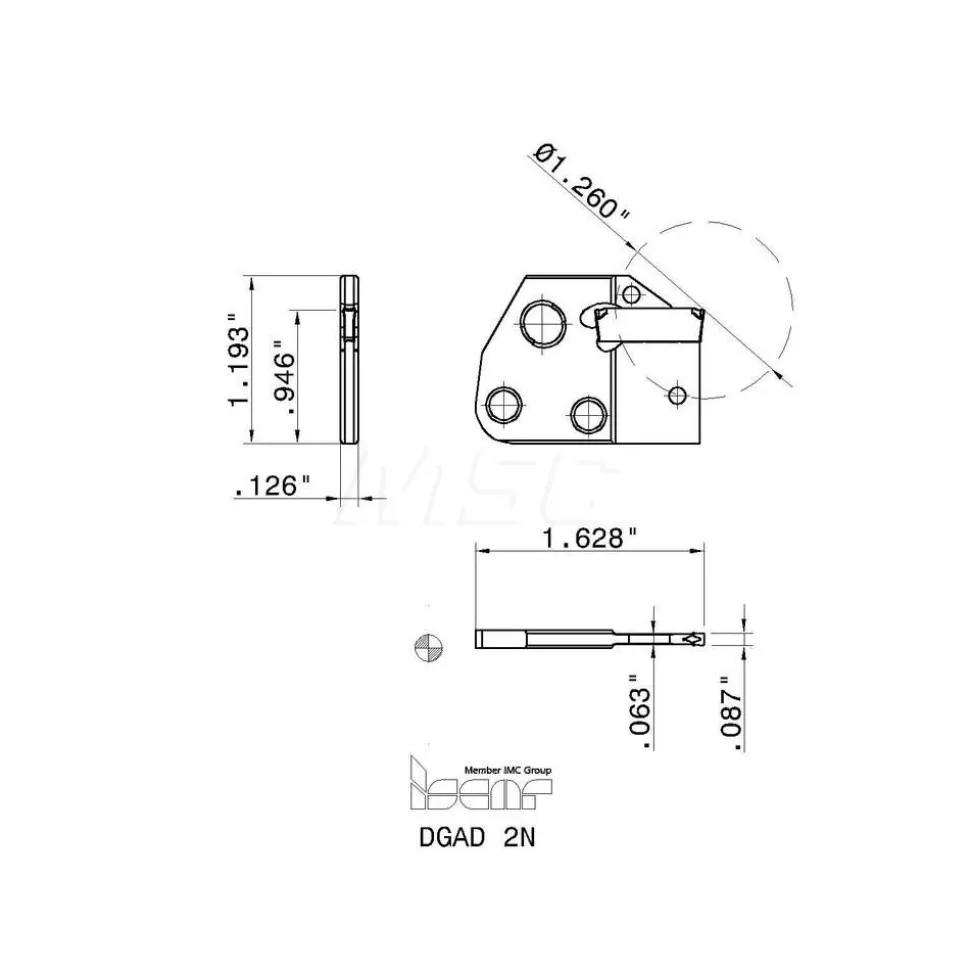

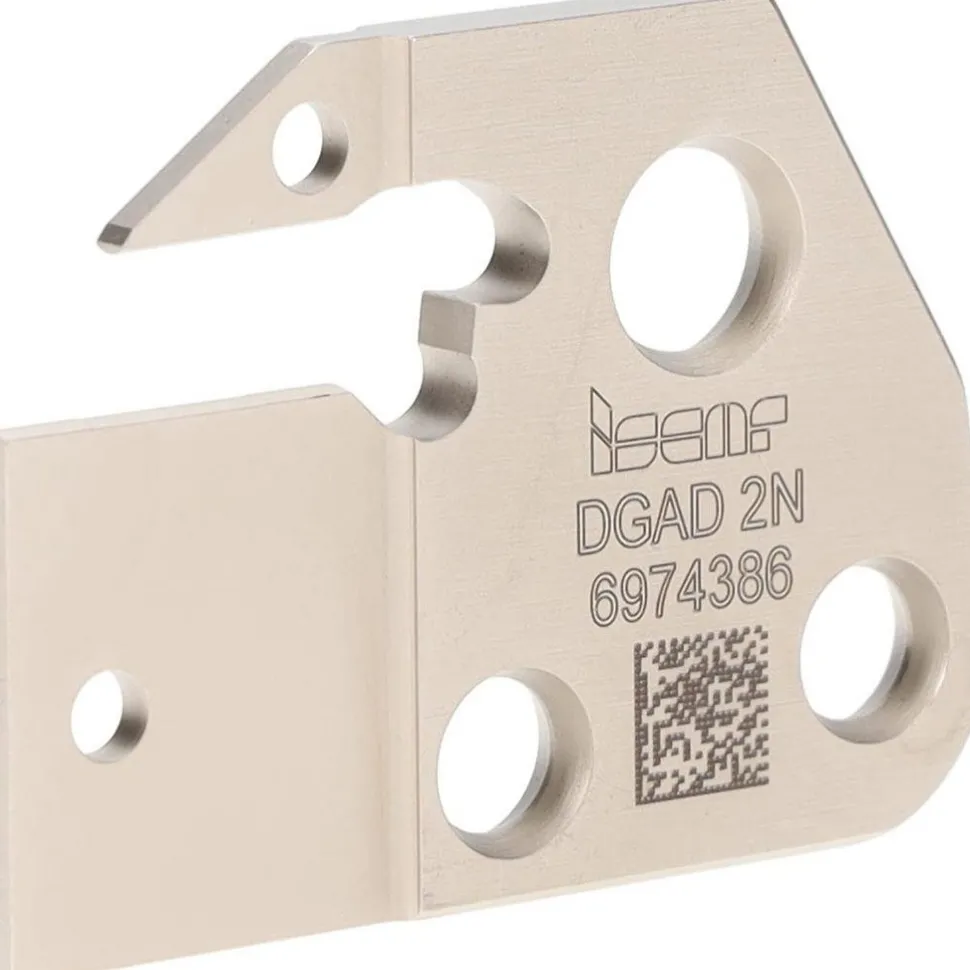

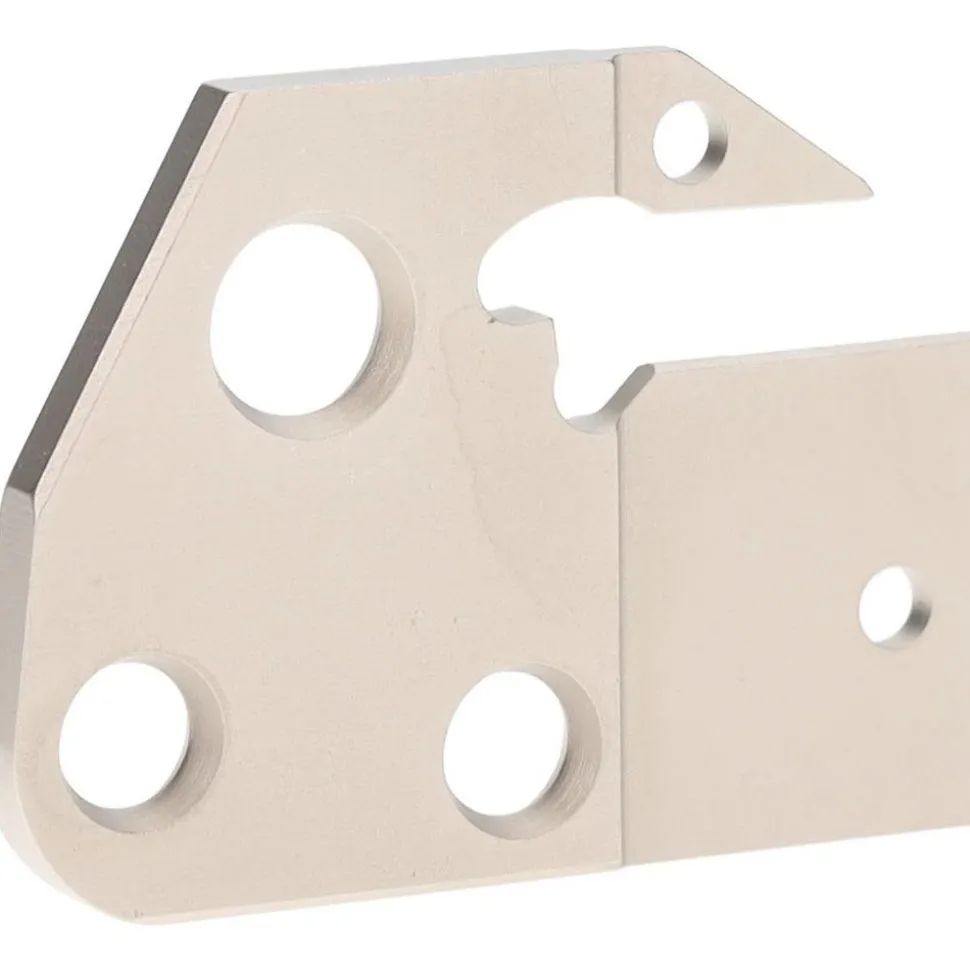

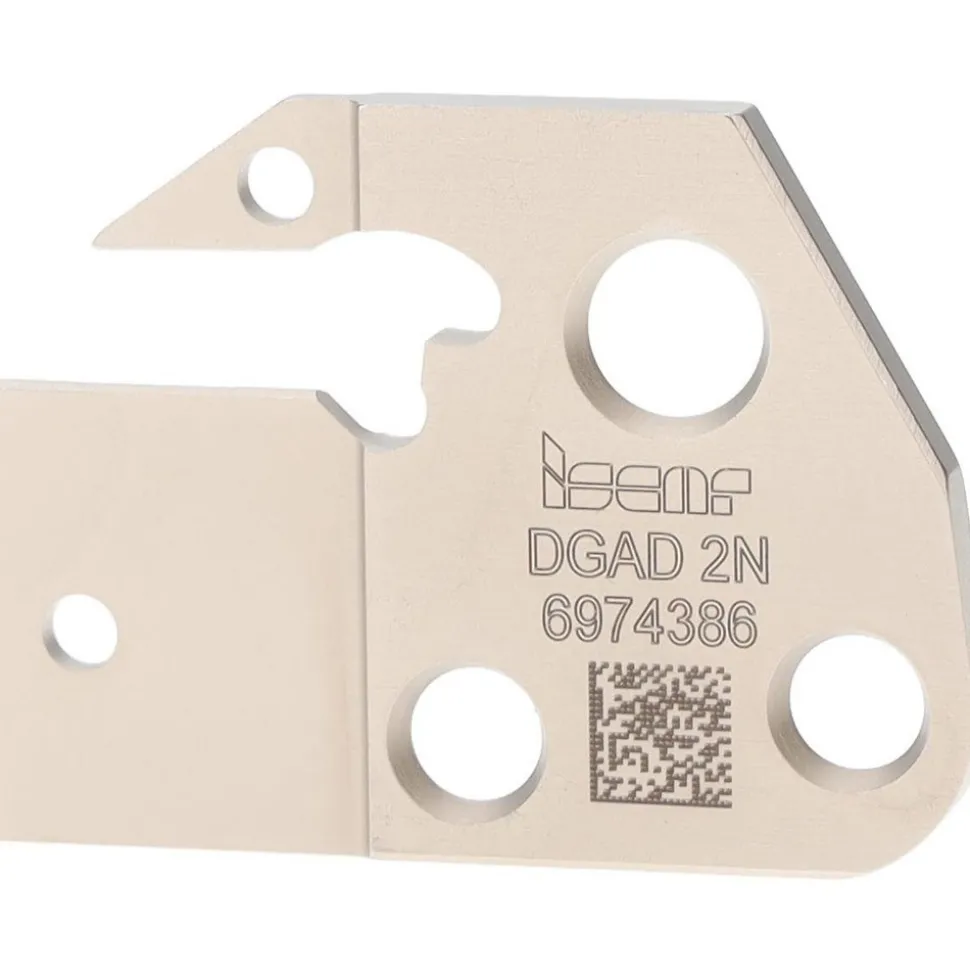

Indexable Grooving Blade: 1.1811″ High, Neutral, 0.0748″ Min Width
Original price was: 144,00 $.95,99 $Current price is: 95,99 $.
Specifications
| Cutting Direction: Neutral | Minimum Groove Width (Decimal Inch): 0.0748 |
| Minimum Groove Width (mm): 1.90 | Blade Style: DGAD |
| Blade Height (mm): 30.00 | Blade Height (Decimal Inch): 1.1811 |
| Blade Width (Decimal Inch): 0.1300 | Blade Width (mm): 3.20 |
| Maximum Workpiece Diameter (Decimal Inch): 1.2598 | Maximum Workpiece Diameter (mm): 32.00 |
| Insert Holding Method: Self Grip | Compatible Insert Style: HGR/L..; DGN..; DGN R/L..; HGN..; GRIP.. |
| Series: Do Grip; Do-Grip | Overall Length (mm): 41.50 |
| Overall Length (Decimal Inch): 1.6339 | Cutting Tool Application: Grooving; Turning; Parting |
| Standards: ISO 13399 | Maximum Groove Width (Decimal Inch): 0.0984 |
| Maximum Groove Width (mm): 2.50 | Manufacturers Catalog Number: DGAD 2N |
| UNSPSC Code: 23241600 | Country of Origin: Israel |
| Cutting Direction: Neutral | |
| Minimum Groove Width (Decimal Inch): 0.0748 | |
| Minimum Groove Width (mm): 1.90 | |
| Blade Style: DGAD | |
| Blade Height (mm): 30.00 | |
| Blade Height (Decimal Inch): 1.1811 | |
| Blade Width (Decimal Inch): 0.1300 | |
| Blade Width (mm): 3.20 | |
| Maximum Workpiece Diameter (Decimal Inch): 1.2598 | |
| Maximum Workpiece Diameter (mm): 32.00 | |
| Insert Holding Method: Self Grip | |
| Compatible Insert Style: HGR/L..; DGN..; DGN R/L..; HGN..; GRIP.. | |
| Series: Do Grip; Do-Grip | |
| Overall Length (mm): 41.50 | |
| Overall Length (Decimal Inch): 1.6339 | |
| Cutting Tool Application: Grooving; Turning; Parting | |
| Standards: ISO 13399 | |
| Maximum Groove Width (Decimal Inch): 0.0984 | |
| Maximum Groove Width (mm): 2.50 | |
| Manufacturers Catalog Number: DGAD 2N | |
| UNSPSC Code: 23241600 | |
| Country of Origin: Israel |
| MSC# | 52699527 |
| Mfr# | 2394966 |
| Big Book# | 893 |
