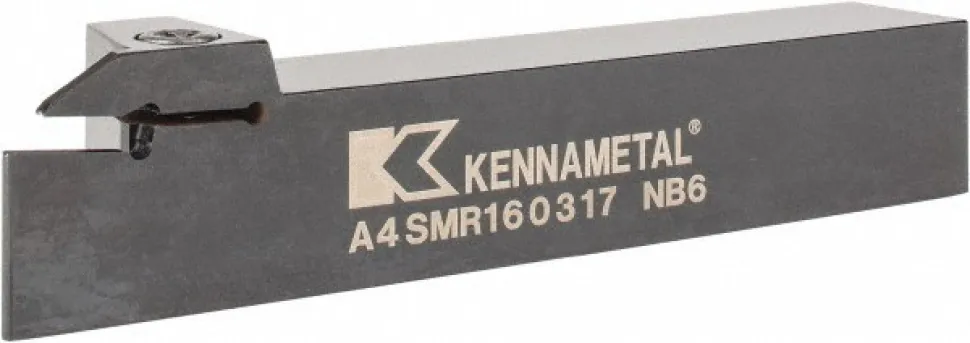

Indexable Grooving-Cutoff Toolholder: A4SMR160317, 3 mm Min Groove Width, 17 mm Max Depth of Cut, Right Hand
Original price was: 222,00 $.128,99 $Current price is: 128,99 $.
Specifications
| Internal or External: External | Hand of Holder: Right Hand |
| Maximum Depth of Cut (Decimal Inch): 0.6700 | Maximum Depth of Cut (mm): 17.00 |
| Minimum Groove Width (Decimal Inch): 0.1180 | Minimum Groove Width (mm): 3.00 |
| Toolholder Style: A4SM | Insert Holding Method: Clamp |
| Insert Compatibility: A4..03.. | Shank Height (mm): 25.40 |
| Shank Height (Decimal Inch): 1.0000 | Shank Length (mm): 115.40 |
| Shank Length (Decimal Inch): 4.5433 | Shank Width/Diameter (Decimal Inch): 1.0000 |
| Shank Width/Diameter (mm): 25.40 | Series: A4 |
| Overall Length (mm): 152.40 | Overall Length (Decimal Inch): 6.0000 |
| Full Radius Insert: No | Head Height (Decimal Inch): 1.2600 |
| Head Height (mm): 32.00 | Head Length (Decimal Inch): 1.4600 |
| Head Length (mm): 37.00 | Insert Seat Size: 3.0 |
| MSC/Manufacturer Number: A4SMR/L160317 | Coolant Through: No |
| UNSPSC Code: 23153308 | |
| Internal or External: External | |
| Hand of Holder: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.6700 | |
| Maximum Depth of Cut (mm): 17.00 | |
| Minimum Groove Width (Decimal Inch): 0.1180 | |
| Minimum Groove Width (mm): 3.00 | |
| Toolholder Style: A4SM | |
| Insert Holding Method: Clamp | |
| Insert Compatibility: A4..03.. | |
| Shank Height (mm): 25.40 | |
| Shank Height (Decimal Inch): 1.0000 | |
| Shank Length (mm): 115.40 | |
| Shank Length (Decimal Inch): 4.5433 | |
| Shank Width/Diameter (Decimal Inch): 1.0000 | |
| Shank Width/Diameter (mm): 25.40 | |
| Series: A4 | |
| Overall Length (mm): 152.40 | |
| Overall Length (Decimal Inch): 6.0000 | |
| Full Radius Insert: No | |
| Head Height (Decimal Inch): 1.2600 | |
| Head Height (mm): 32.00 | |
| Head Length (Decimal Inch): 1.4600 | |
| Head Length (mm): 37.00 | |
| Insert Seat Size: 3.0 | |
| MSC/Manufacturer Number: A4SMR/L160317 | |
| Coolant Through: No | |
| UNSPSC Code: 23153308 |
| MSC# | 64924160 |
| Mfr# | 1953181 |
| Big Book# | 903 |
