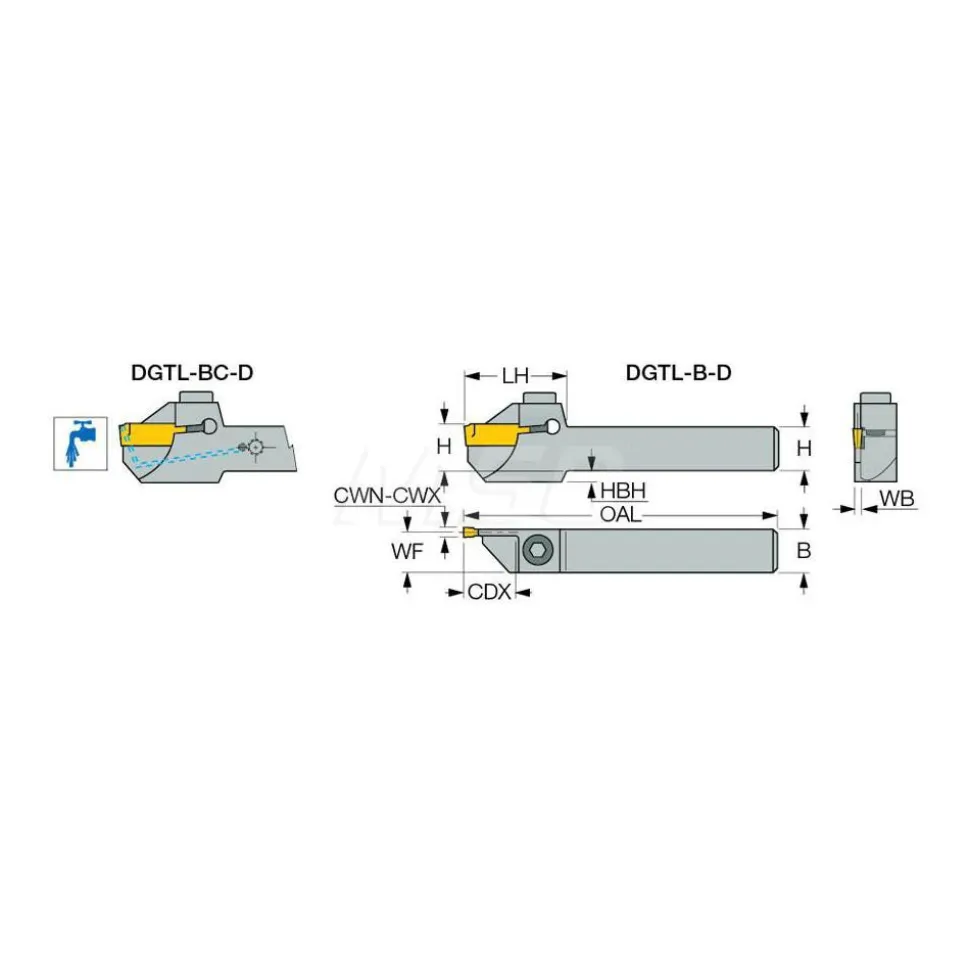

Indexable Grooving-Cutoff Toolholder: DGTL 16B-3D35, 3 to 3.18 mm Groove Width, 16 mm Max Depth of Cut, Left Hand
117,99 $
Specifications
| Hand of Holder: Left Hand | Maximum Depth of Cut (Decimal Inch): 0.6299 |
| Maximum Depth of Cut (mm): 16.00 | Maximum Groove Width (Decimal Inch): 0.1250 |
| Maximum Groove Width (mm): 3.18 | Minimum Groove Width (Decimal Inch): 0.1180 |
| Minimum Groove Width (mm): 3.00 | Toolholder Style: DGT |
| Insert Holding Method: Clamp | Compatible Insert Size Code: DGR/L-J/JS; DGN/DGNM-J/JS/JT |
| Insert Compatibility: DG. 3..; DG. 1.. | Shank Height (mm): 16.00 |
| Shank Height (Decimal Inch): 0.6299 | Shank Length (mm): 107.90 |
| Shank Length (Decimal Inch): 4.2362 | Shank Width/Diameter (Decimal Inch): 0.6299 |
| Shank Width/Diameter (mm): 16.00 | Series: Do-Grip |
| Overall Length (mm): 140.00 | Overall Length (Decimal Inch): 5.5000 |
| Cutting Tool Application: Grooving; Cut-Off | Full Radius Insert: No |
| Head Length (Decimal Inch): 1.2638 | Head Length (mm): 32.10 |
| Standards: ISO 13399 | Coolant Through: No |
| UNSPSC Code: 23153308 | Country of Origin: Israel |
| Hand of Holder: Left Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.6299 | |
| Maximum Depth of Cut (mm): 16.00 | |
| Maximum Groove Width (Decimal Inch): 0.1250 | |
| Maximum Groove Width (mm): 3.18 | |
| Minimum Groove Width (Decimal Inch): 0.1180 | |
| Minimum Groove Width (mm): 3.00 | |
| Toolholder Style: DGT | |
| Insert Holding Method: Clamp | |
| Compatible Insert Size Code: DGR/L-J/JS; DGN/DGNM-J/JS/JT | |
| Insert Compatibility: DG. 3..; DG. 1.. | |
| Shank Height (mm): 16.00 | |
| Shank Height (Decimal Inch): 0.6299 | |
| Shank Length (mm): 107.90 | |
| Shank Length (Decimal Inch): 4.2362 | |
| Shank Width/Diameter (Decimal Inch): 0.6299 | |
| Shank Width/Diameter (mm): 16.00 | |
| Series: Do-Grip | |
| Overall Length (mm): 140.00 | |
| Overall Length (Decimal Inch): 5.5000 | |
| Cutting Tool Application: Grooving; Cut-Off | |
| Full Radius Insert: No | |
| Head Length (Decimal Inch): 1.2638 | |
| Head Length (mm): 32.10 | |
| Standards: ISO 13399 | |
| Coolant Through: No | |
| UNSPSC Code: 23153308 | |
| Country of Origin: Israel |
| MSC# | 52701463 |
| Mfr# | 2301399 |
| Big Book# | 890 |
