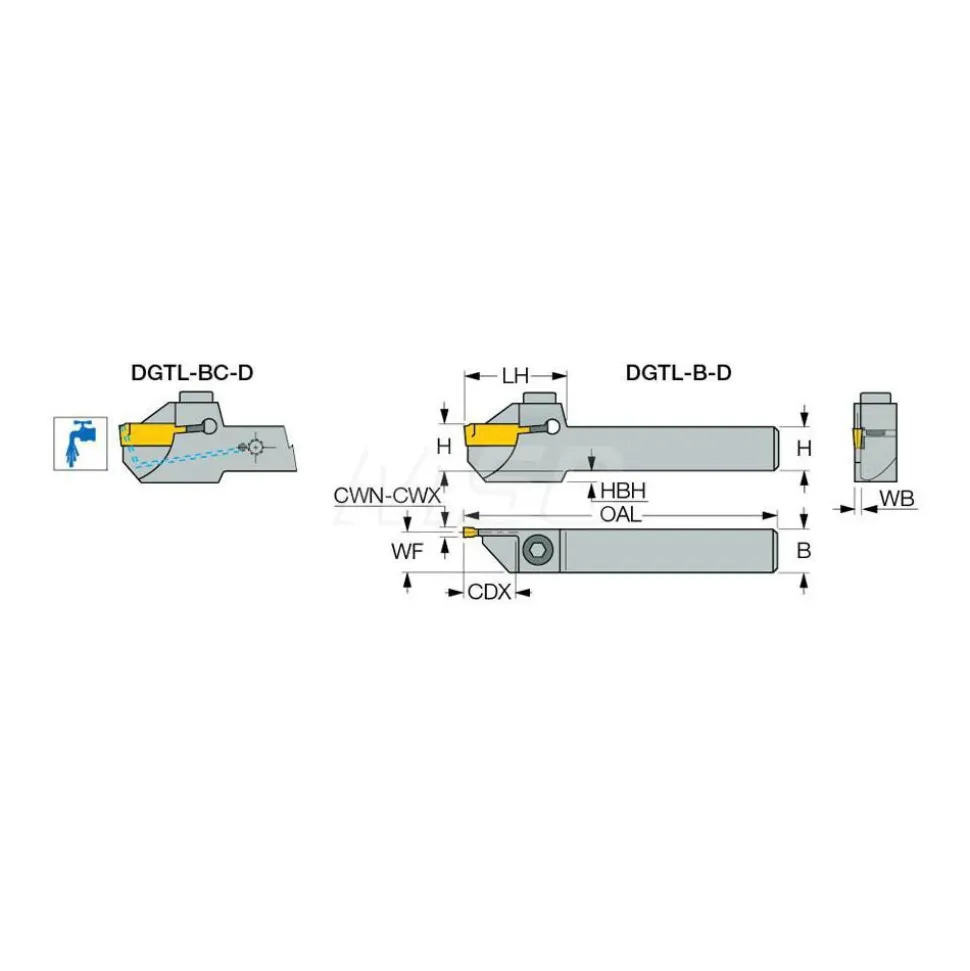

Indexable Grooving-Cutoff Toolholder: DGTR 19B-2D35, 0.075 to 0.098″ Groove Width, 0.689″ Max Depth of Cut, Right Hand
Original price was: 201,00 $.124,99 $Current price is: 124,99 $.
Specifications
| Internal or External: External | Hand of Holder: Right Hand |
| Maximum Depth of Cut (Decimal Inch): 0.6890 | Maximum Groove Width (Decimal Inch): 0.0980 |
| Minimum Groove Width (Decimal Inch): 0.0750 | Toolholder Style: DGT |
| Insert Holding Method: Clamp | Compatible Insert Size Code: DGR/L-J/JS; DGN/DGNM-J/JS/JT |
| Insert Compatibility: DG.. | Shank Height (Decimal Inch): 0.7500 |
| Shank Length (Decimal Inch): 4.2400 | Shank Width/Diameter (Decimal Inch): 0.7500 |
| Shank Width/Diameter (Inch): 3/4 | Series: Do-Grip |
| Overall Length (Decimal Inch): 5.5000 | Cutting Tool Application: Grooving; Cut-Off |
| Back of Bar to Cutting Edge (Decimal Inch): 0.7200 | Head Length (Decimal Inch): 1.2600 |
| Standards: ISO 13399 | Manufacturers Catalog Number: DGTR 19B-2D35 |
| Complete Insert Compatibility: DGL 3102J-15D; DGL 3102C-6D; DGL 2202C-6D; DGL 4003C-4D; DGL 1402J-8D; DGL 2200JS-15D; DGL 3100JS-15D; DGL 1400JS-15D; DGL 2200JS-6D; DGL 3100JS-6D; DGL 4003J-4D; DGL 5003J-4D; DGL 5003C-4D; DGL 3102J-6D; DGL 3102C-15D; DGL 2202J-6D; DGL 1001J-8D; DGL 6303C-4D | Insert Seat Size: 0.1 |
| Coolant Through: Yes | UNSPSC Code: 23153308 |
| Country of Origin: Israel | |
| Internal or External: External | |
| Hand of Holder: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.6890 | |
| Maximum Groove Width (Decimal Inch): 0.0980 | |
| Minimum Groove Width (Decimal Inch): 0.0750 | |
| Toolholder Style: DGT | |
| Insert Holding Method: Clamp | |
| Compatible Insert Size Code: DGR/L-J/JS; DGN/DGNM-J/JS/JT | |
| Insert Compatibility: DG.. | |
| Shank Height (Decimal Inch): 0.7500 | |
| Shank Length (Decimal Inch): 4.2400 | |
| Shank Width/Diameter (Decimal Inch): 0.7500 | |
| Shank Width/Diameter (Inch): 3/4 | |
| Series: Do-Grip | |
| Overall Length (Decimal Inch): 5.5000 | |
| Cutting Tool Application: Grooving; Cut-Off | |
| Back of Bar to Cutting Edge (Decimal Inch): 0.7200 | |
| Head Length (Decimal Inch): 1.2600 | |
| Standards: ISO 13399 | |
| Manufacturers Catalog Number: DGTR 19B-2D35 | |
| Complete Insert Compatibility: DGL 3102J-15D; DGL 3102C-6D; DGL 2202C-6D; DGL 4003C-4D; DGL 1402J-8D; DGL 2200JS-15D; DGL 3100JS-15D; DGL 1400JS-15D; DGL 2200JS-6D; DGL 3100JS-6D; DGL 4003J-4D; DGL 5003J-4D; DGL 5003C-4D; DGL 3102J-6D; DGL 3102C-15D; DGL 2202J-6D; DGL 1001J-8D; DGL 6303C-4D | |
| Insert Seat Size: 0.1 | |
| Coolant Through: Yes | |
| UNSPSC Code: 23153308 | |
| Country of Origin: Israel |
| MSC# | 52701919 |
| Mfr# | 2301425 |
