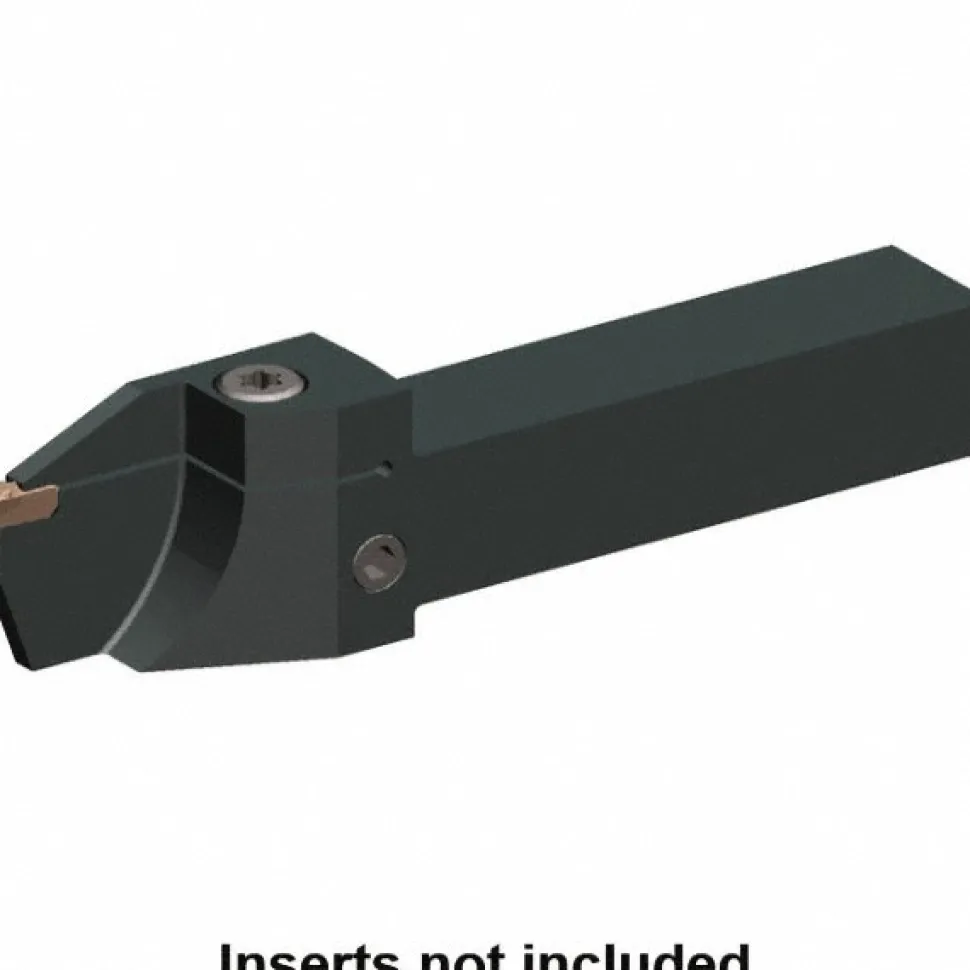

Indexable Grooving-Cutoff Toolholder: EVSCTR120326C, 3 to 3 mm Groove Width, 26 mm Max Depth of Cut, Right Hand
128,89 $
Specifications
| Internal or External: External | Hand of Holder: Right Hand |
| Maximum Depth of Cut (Decimal Inch): 1.0240 | Maximum Depth of Cut (mm): 26.00 |
| Maximum Groove Width (Decimal Inch): 0.1180 | Maximum Groove Width (mm): 3.00 |
| Minimum Groove Width (Decimal Inch): 0.1180 | Minimum Groove Width (mm): 3.00 |
| Toolholder Style: EVSC-T | Insert Holding Method: Clamp |
| Insert Compatibility: EG0300M03P02 | Shank Height (mm): 19.05 |
| Shank Height (Inch): 3/4 | Shank Height (Decimal Inch): 0.7500 |
| Shank Length (mm): 67.30 | Shank Length (Decimal Inch): 2.6500 |
| Shank Width/Diameter (Decimal Inch): 0.7500 | Shank Width/Diameter (mm): 19.05 |
| Shank Width/Diameter (Inch): 3/4 | Series: Beyond Evolution |
| Overall Length (mm): 114.30 | Back of Bar to Cutting Edge (Decimal Inch): 4.5000 |
| Head Height (Decimal Inch): 1.2620 | Head Height (mm): 32.05 |
| Head Length (Decimal Inch): 1.8500 | Head Length (mm): 47.00 |
| Mount Size: 1212 | Complete Insert Compatibility: EG0300M03P02 |
| Insert Seat Size: 3.0 | Coolant Through: Yes |
| UNSPSC Code: 23153308 | Country of Origin: India |
| Internal or External: External | |
| Hand of Holder: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 1.0240 | |
| Maximum Depth of Cut (mm): 26.00 | |
| Maximum Groove Width (Decimal Inch): 0.1180 | |
| Maximum Groove Width (mm): 3.00 | |
| Minimum Groove Width (Decimal Inch): 0.1180 | |
| Minimum Groove Width (mm): 3.00 | |
| Toolholder Style: EVSC-T | |
| Insert Holding Method: Clamp | |
| Insert Compatibility: EG0300M03P02 | |
| Shank Height (mm): 19.05 | |
| Shank Height (Inch): 3/4 | |
| Shank Height (Decimal Inch): 0.7500 | |
| Shank Length (mm): 67.30 | |
| Shank Length (Decimal Inch): 2.6500 | |
| Shank Width/Diameter (Decimal Inch): 0.7500 | |
| Shank Width/Diameter (mm): 19.05 | |
| Shank Width/Diameter (Inch): 3/4 | |
| Series: Beyond Evolution | |
| Overall Length (mm): 114.30 | |
| Back of Bar to Cutting Edge (Decimal Inch): 4.5000 | |
| Head Height (Decimal Inch): 1.2620 | |
| Head Height (mm): 32.05 | |
| Head Length (Decimal Inch): 1.8500 | |
| Head Length (mm): 47.00 | |
| Mount Size: 1212 | |
| Complete Insert Compatibility: EG0300M03P02 | |
| Insert Seat Size: 3.0 | |
| Coolant Through: Yes | |
| UNSPSC Code: 23153308 | |
| Country of Origin: India |
| MSC# | 69577369 |
| Mfr# | 5980820 |
