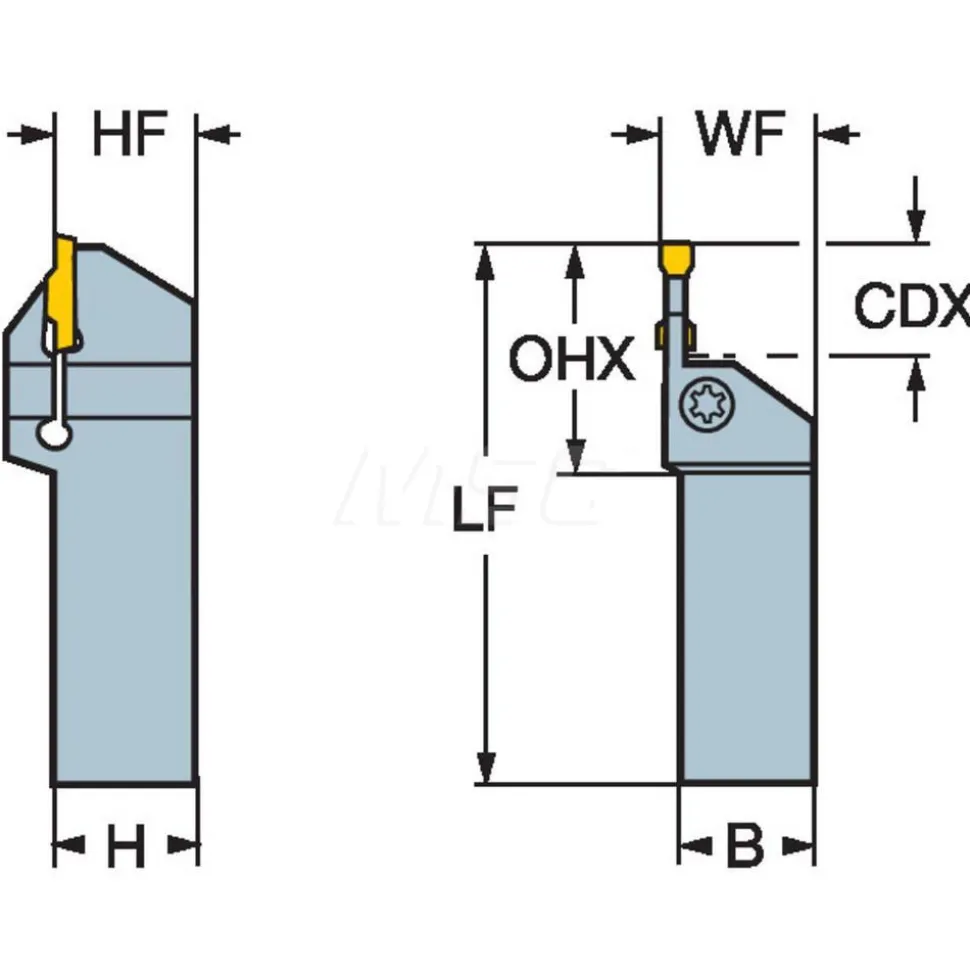

Indexable Grooving-Cutoff Toolholder: RF123F079-16B, 2.39 to 3.18 mm Groove Width, 20.07 mm Max Depth of Cut, Right Hand
Original price was: 270,00 $.120,89 $Current price is: 120,89 $.
Specifications
| Internal or External: External | Hand of Holder: Right Hand |
| Maximum Depth of Cut (Decimal Inch): 0.7900 | Maximum Depth of Cut (mm): 20.07 |
| Maximum Groove Width (Decimal Inch): 0.1250 | Maximum Groove Width (mm): 3.18 |
| Minimum Groove Width (Decimal Inch): 0.0941 | Minimum Groove Width (mm): 2.39 |
| Toolholder Style: RF123..B | Insert Holding Method: Clamp |
| Compatible Insert Size Code: N123F2 | Insert Compatibility: N123F2-0250-CM |
| Shank Height (mm): 25.40 | Shank Height (Inch): 1 |
| Shank Height (Decimal Inch): 1.0000 | Shank Length (mm): 112.40 |
| Shank Length (Decimal Inch): 4.4250 | Shank Width/Diameter (Decimal Inch): 1.0000 |
| Shank Width/Diameter (mm): 25.40 | Shank Width/Diameter (Inch): 1 |
| Series: CoroCut 1-2 | Overall Length (mm): 152.40 |

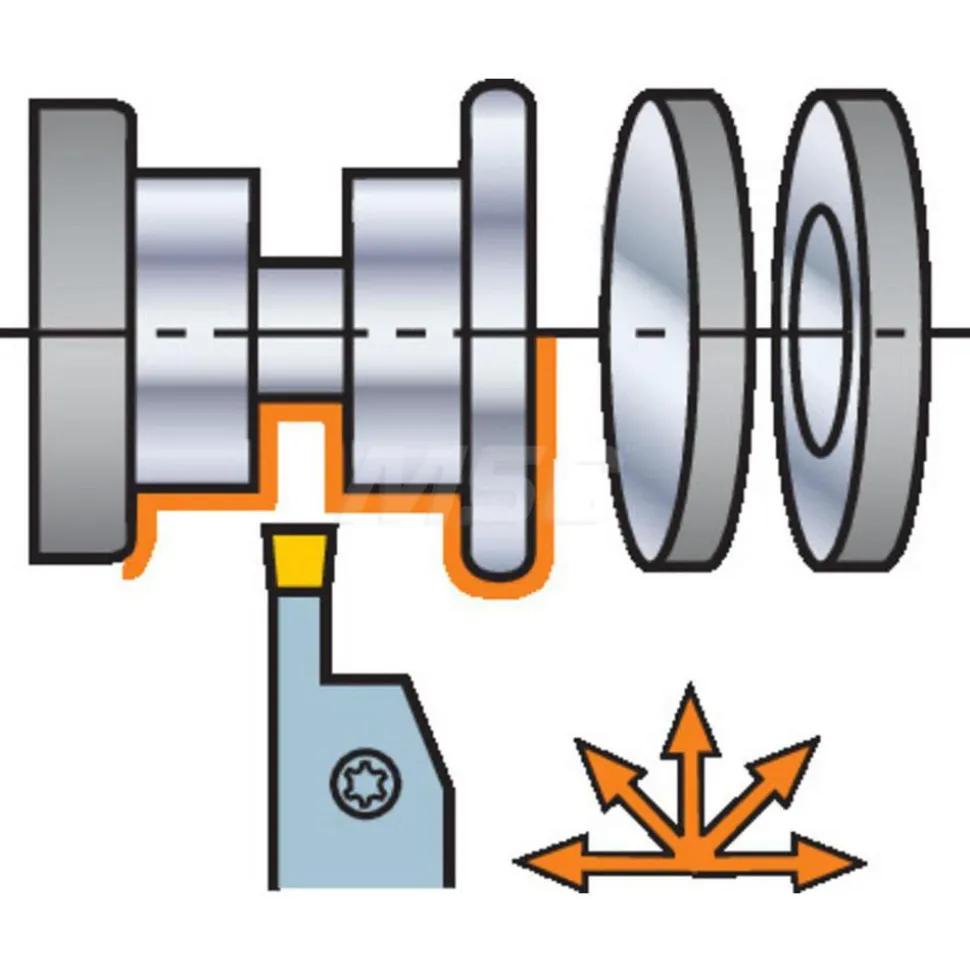

| Cutting Tool Application: Grooving; Cut-Off; Parting | Maximum Overhang (Inch): 1.5750 |
| Back of Bar to Cutting Edge (Decimal Inch): 6.0000 | Head Height (Decimal Inch): 1.0000 |
| Head Height (mm): 25.40 | Head Length (Decimal Inch): 1.0000 |
| Head Length (mm): 25.40 | Manufacturers Catalog Number: RF123F079-16B |
| Coolant Through: No | UNSPSC Code: 27112809 |
| Country of Origin: Sweden | |
| Internal or External: External | |
| Hand of Holder: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.7900 | |
| Maximum Depth of Cut (mm): 20.07 | |
| Maximum Groove Width (Decimal Inch): 0.1250 | |
| Maximum Groove Width (mm): 3.18 | |
| Minimum Groove Width (Decimal Inch): 0.0941 | |
| Minimum Groove Width (mm): 2.39 | |
| Toolholder Style: RF123..B | |
| Insert Holding Method: Clamp | |
| Compatible Insert Size Code: N123F2 | |
| Insert Compatibility: N123F2-0250-CM | |
| Shank Height (mm): 25.40 | |
| Shank Height (Inch): 1 | |
| Shank Height (Decimal Inch): 1.0000 | |
| Shank Length (mm): 112.40 | |
| Shank Length (Decimal Inch): 4.4250 | |
| Shank Width/Diameter (Decimal Inch): 1.0000 | |
| Shank Width/Diameter (mm): 25.40 | |
| Shank Width/Diameter (Inch): 1 | |
| Series: CoroCut 1-2 | |
| Overall Length (mm): 152.40 | |
| Cutting Tool Application: Grooving; Cut-Off; Parting | |
| Maximum Overhang (Inch): 1.5750 | |
| Back of Bar to Cutting Edge (Decimal Inch): 6.0000 | |
| Head Height (Decimal Inch): 1.0000 | |
| Head Height (mm): 25.40 | |
| Head Length (Decimal Inch): 1.0000 | |
| Head Length (mm): 25.40 | |
| Manufacturers Catalog Number: RF123F079-16B | |
| Coolant Through: No | |
| UNSPSC Code: 27112809 | |
| Country of Origin: Sweden |
| MSC# | 45711231 |
| Mfr# | 5740804 |
