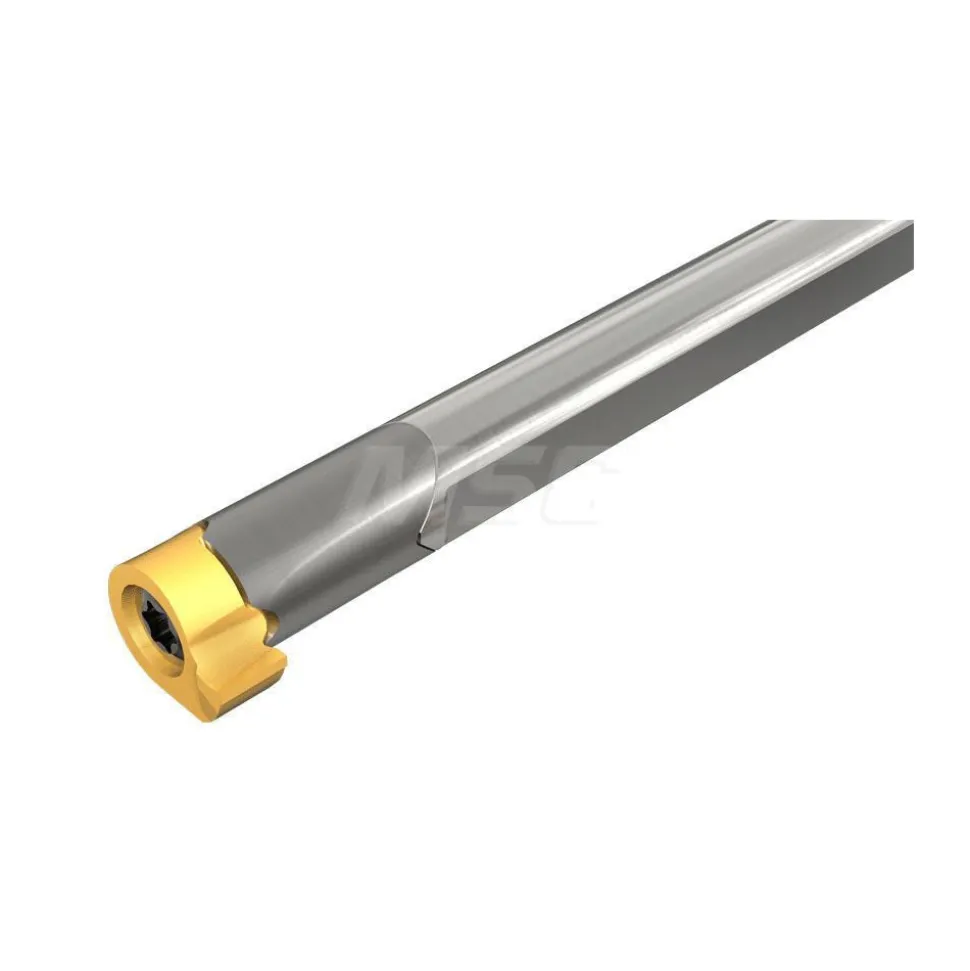

Indexable Grooving Toolholder: MGCH-08, Internal, Right Hand
124,89 $
Specifications
| Toolholder Type: Internal Grooving | Hand of Holder: Right Hand |
| Maximum Depth of Cut (Decimal Inch): 0.0906 | Maximum Depth of Cut (mm): 2.30 |
| Minimum Groove Width (Decimal Inch): 0.0197 | Minimum Groove Width (mm): 0.50 |
| Maximum Groove Width (mm): 5.00 | Toolholder Style: MGCH |
| Maximum Groove Width (Decimal Inch): 0.1969 | Insert Holding Method: Screw |
| Insert Compatibility: GIQ | Compatible Insert Size Code: GIQR/L 11/11-15 |
| Series: ChamGroove | Overall Length (mm): 75.00 |
| Overall Length (Decimal Inch): 2.9528 | Multi-use Tool: No |
| Center to Cutting Edge (Decimal Inch): 0.2638 | Center to Cutting Edge (mm): 6.70 |
| Minimum Hole Diameter (mm): 11.00 | Minimum Hole Diameter (Decimal Inch): 0.4331 |
| Primary Workpiece Material: Universal | UNSPSC Code: 23153308 |
| Primary Workpiece Material Code: P; S; H; K; M; N | Manufacturers Catalog Number: MGCH 08 |
| Toolholder Material: Solid Carbide | Coolant Through: No |
| Country of Origin: Israel | |
| Toolholder Type: Internal Grooving | |
| Hand of Holder: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.0906 | |
| Maximum Depth of Cut (mm): 2.30 | |
| Minimum Groove Width (Decimal Inch): 0.0197 | |
| Minimum Groove Width (mm): 0.50 | |
| Maximum Groove Width (mm): 5.00 | |
| Toolholder Style: MGCH | |
| Maximum Groove Width (Decimal Inch): 0.1969 | |
| Insert Holding Method: Screw | |
| Insert Compatibility: GIQ | |
| Compatible Insert Size Code: GIQR/L 11/11-15 | |
| Series: ChamGroove | |
| Overall Length (mm): 75.00 | |
| Overall Length (Decimal Inch): 2.9528 | |
| Multi-use Tool: No | |
| Center to Cutting Edge (Decimal Inch): 0.2638 | |
| Center to Cutting Edge (mm): 6.70 | |
| Minimum Hole Diameter (mm): 11.00 | |
| Minimum Hole Diameter (Decimal Inch): 0.4331 | |
| Primary Workpiece Material: Universal | |
| UNSPSC Code: 23153308 | |
| Primary Workpiece Material Code: P; S; H; K; M; N | |
| Manufacturers Catalog Number: MGCH 08 | |
| Toolholder Material: Solid Carbide | |
| Coolant Through: No | |
| Country of Origin: Israel |
| MSC# | 03207537 |
| Mfr# | 2800931 |
