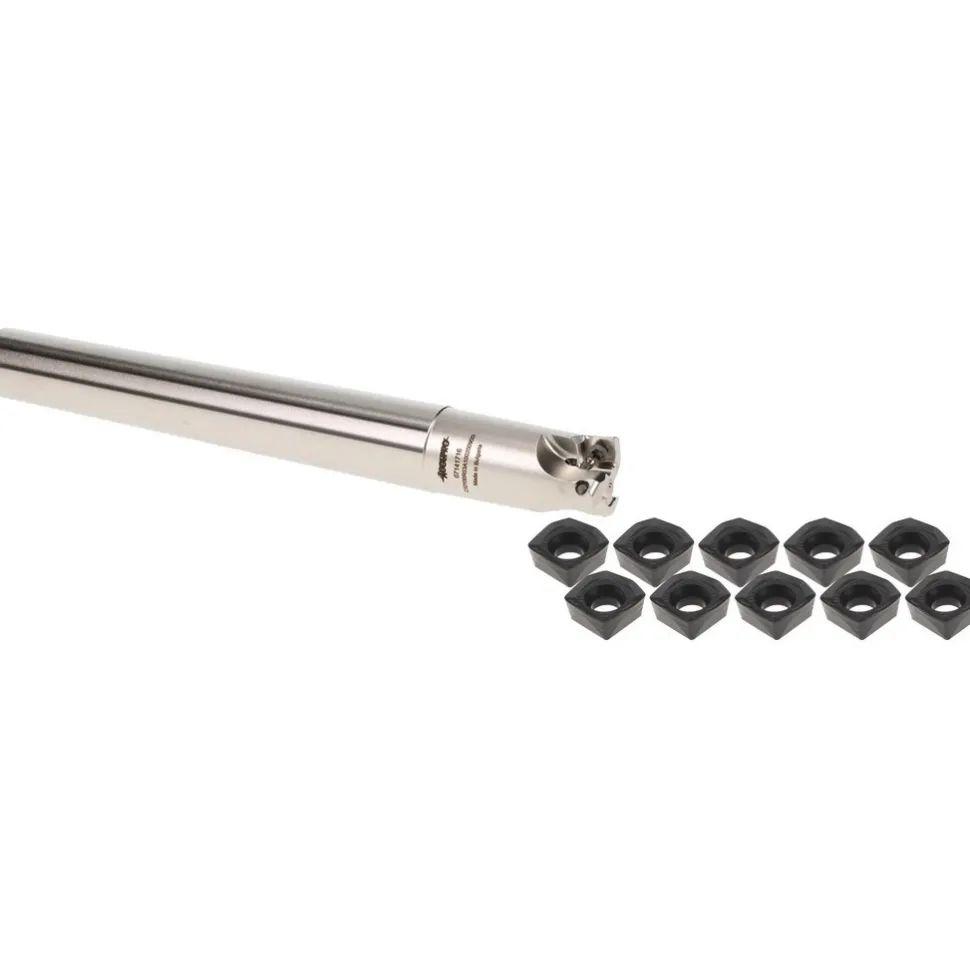

Indexable High-Feed End Mill: 11PC 07141716&ACP30M, Straight Shank
130,99 $
Specifications
| Minimum Cutting Diameter (Inch): 1 | Maximum Cutting Diameter (Decimal Inch): 1.8900 |
| Maximum Cutting Diameter (Inch): 1.8900 | Maximum Depth of Cut (mm): 1.00 |
| Maximum Depth of Cut (Decimal Inch): 0.0394 | Toolholder Style: C-SSM |
| Shank Type: Straight | Shank Diameter (Decimal Inch): 1.0000 |
| Includes: (10) Carbide Milling Inserts; Index High Feed End Mill | Shank Diameter (Inch): 1 |
| Maximum Ramping Angle: 3.1 | Compatible Insert Style: XDLX; XDLT |
| Compatible Insert Size Code: 10 | Insert Holding Method: Screw |
| Number Of Cutter Inserts: 3 | Overall Length (Decimal Inch): 9.0000 |
| Series: CI | Tool Application: Milling |
| Weldon Flat: No | End Mill Type: High Feed |
| Number Of Flutes: 3 | Coolant Through: Yes |
| UNSPSC Code: 27112803 | Country of Origin: Luxembourg |
| Minimum Cutting Diameter (Inch): 1 | |
| Maximum Cutting Diameter (Decimal Inch): 1.8900 | |
| Maximum Cutting Diameter (Inch): 1.8900 | |
| Maximum Depth of Cut (mm): 1.00 | |
| Maximum Depth of Cut (Decimal Inch): 0.0394 | |
| Toolholder Style: C-SSM | |
| Shank Type: Straight | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Includes: (10) Carbide Milling Inserts; Index High Feed End Mill | |
| Shank Diameter (Inch): 1 | |
| Maximum Ramping Angle: 3.1 | |
| Compatible Insert Style: XDLX; XDLT | |
| Compatible Insert Size Code: 10 | |
| Insert Holding Method: Screw | |
| Number Of Cutter Inserts: 3 | |
| Overall Length (Decimal Inch): 9.0000 | |
| Series: CI | |
| Tool Application: Milling | |
| Weldon Flat: No | |
| End Mill Type: High Feed | |
| Number Of Flutes: 3 | |
| Coolant Through: Yes | |
| UNSPSC Code: 27112803 | |
| Country of Origin: Luxembourg |
| MSC# | 81950776 |
| Mfr# | 07141716/56460637 |
