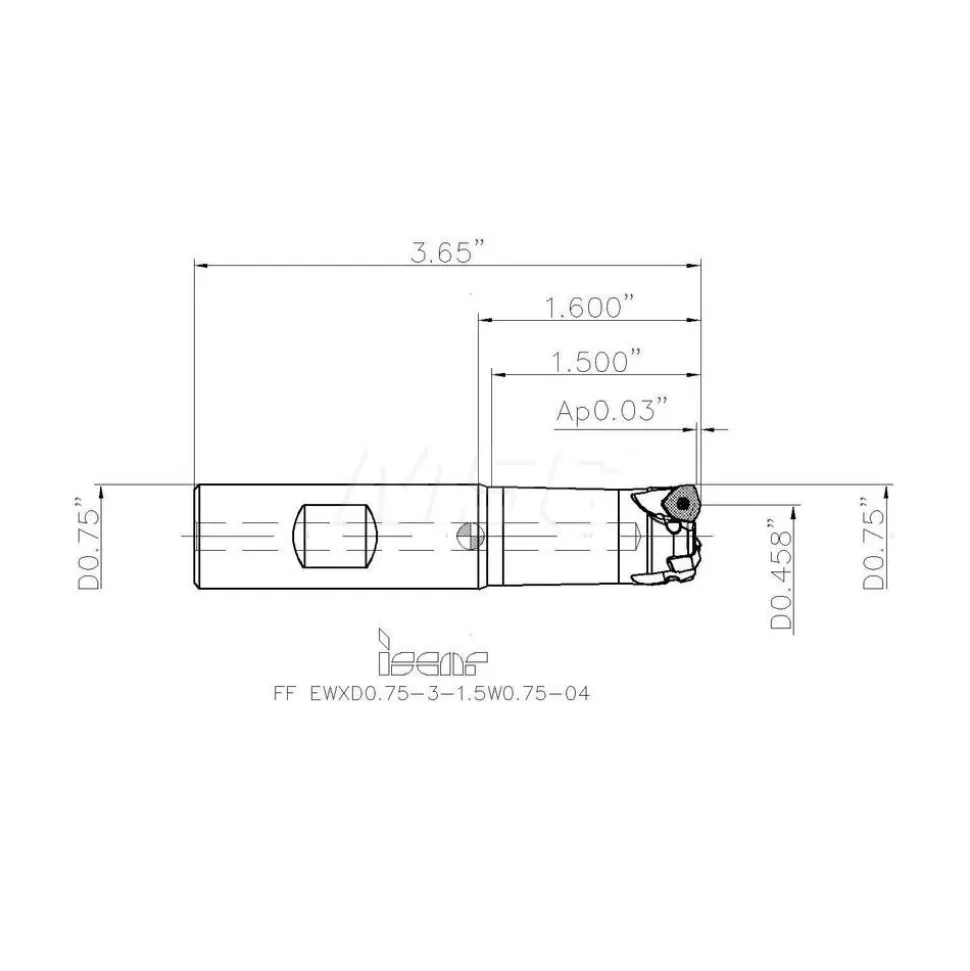

Indexable High-Feed End Mill: FFEWXD0.7531.5W0.7504, 3/4″ Cut Dia, 3/4″ Shank Dia, Weldon Flat Shank
120,89 $
Specifications
| Minimum Cutting Diameter (Decimal Inch): 0.4580 | Maximum Cutting Diameter (Decimal Inch): 0.7500 |
| Maximum Cutting Diameter (Inch): 3/4 | Maximum Depth of Cut (Decimal Inch): 0.0600 |
| Toolholder Style: FF EWX-04 | Shank Type: Weldon Flat |
| Shank Diameter (Decimal Inch): 0.7500 | Shank Diameter (Inch): 3/4 |
| Maximum Ramping Angle: 5.00 | Compatible Insert Style: H600WXCU040310T |
| Insert Holding Method: Screw | Number Of Cutter Inserts: 3 |
| Overall Length (Decimal Inch): 3.6500 | Series: High Feed 6 |
| Head Length (Decimal Inch): 1.6000 | Tool Application: Milling |
| Standards: ISO 13399 | Weldon Flat: Yes |
| Manufacturers Catalog Number: FF EWXD0.75-3-1.5W0.75-04 | Number Of Flutes: 3 |
| Coolant Through: Yes | UNSPSC Code: 27112803 |
| Country of Origin: Israel | |
| Minimum Cutting Diameter (Decimal Inch): 0.4580 | |
| Maximum Cutting Diameter (Decimal Inch): 0.7500 | |
| Maximum Cutting Diameter (Inch): 3/4 | |
| Maximum Depth of Cut (Decimal Inch): 0.0600 | |
| Toolholder Style: FF EWX-04 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Shank Diameter (Inch): 3/4 | |
| Maximum Ramping Angle: 5.00 | |
| Compatible Insert Style: H600WXCU040310T | |
| Insert Holding Method: Screw | |
| Number Of Cutter Inserts: 3 | |
| Overall Length (Decimal Inch): 3.6500 | |
| Series: High Feed 6 | |
| Head Length (Decimal Inch): 1.6000 | |
| Tool Application: Milling | |
| Standards: ISO 13399 | |
| Weldon Flat: Yes | |
| Manufacturers Catalog Number: FF EWXD0.75-3-1.5W0.75-04 | |
| Number Of Flutes: 3 | |
| Coolant Through: Yes | |
| UNSPSC Code: 27112803 | |
| Country of Origin: Israel |
| MSC# | 82519547 |
| Mfr# | 3105630 |
