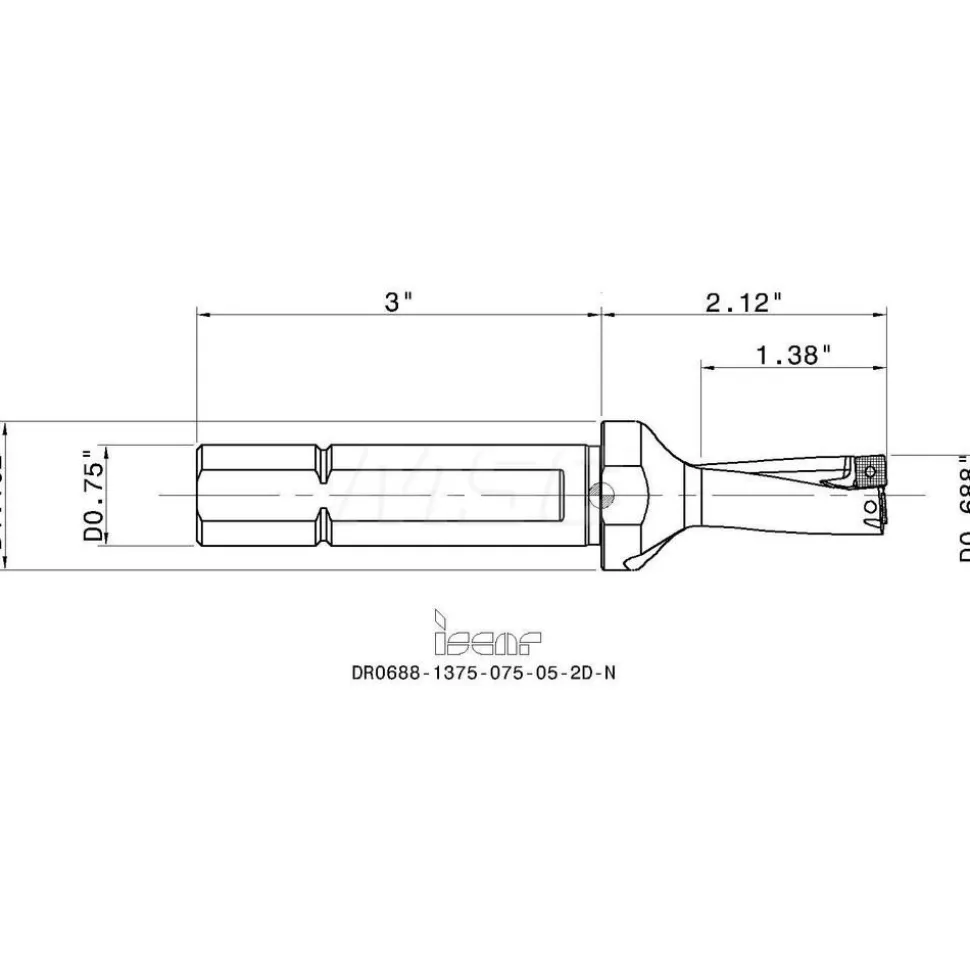

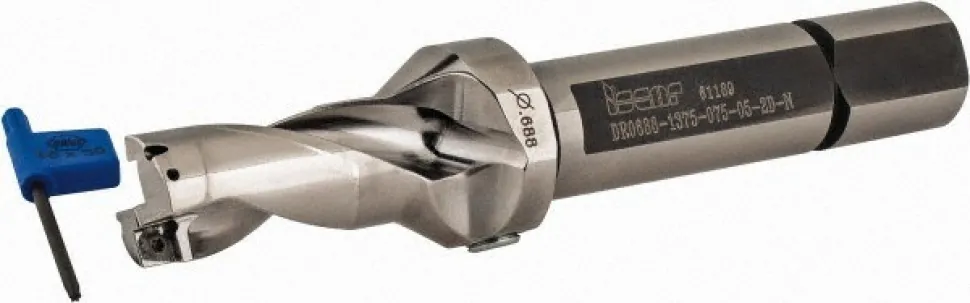

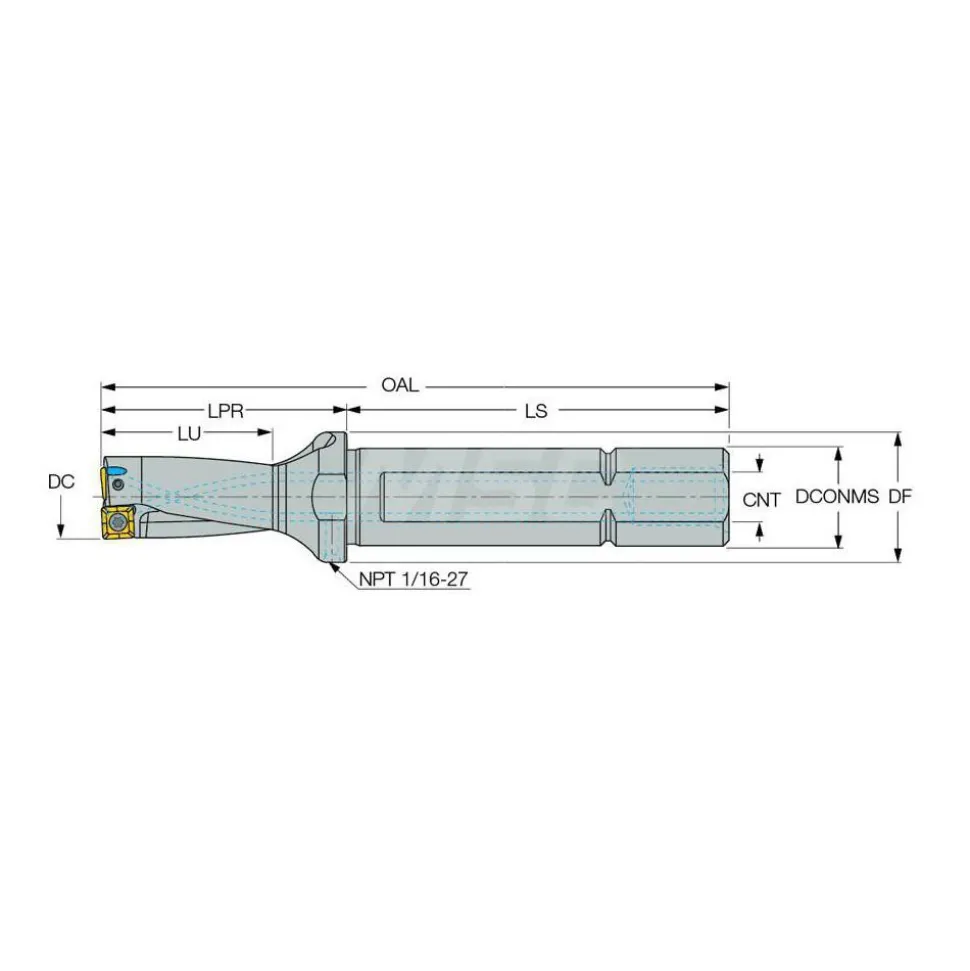

Indexable Insert Drill: DR0688-1375-075, 11/16″ Max Dia, 2xD, 3/4″ Shank Dia
Original price was: 560,00 $.138,99 $Current price is: 138,99 $.
Specifications
| Compatible Drill Style: DR | Maximum Drill Diameter (Inch): 11/16 |
| Maximum Drill Diameter (Decimal Inch): 0.7280 | Maximum Drill Depth (Decimal Inch): 1.3800 |
| Shank Type: Flange; Weldon Flat | Shank Diameter (Inch): 3/4 |
| Shank Diameter (Decimal Inch): 0.7500 | Number of Drill Inserts: 2 |
| Cutting Direction: Right Hand | Maximum Drill Depth Range (Decimal Inch): 1.0000 to 2.0000 |
| Tool Material: Steel | Compatible Insert Style: SOMX |
| Compatible Insert Size Code: 050204 | Drill Depth by Diameter Ratio: 2xD |
| Coolant Entry Style Code: 1-Axial Concentric Entry | Overall Length (Decimal Inch): 5.2000 |
| Series: DR-2D-N | Flute Length (Decimal Inch): 1.3800 |
| Body Length (Decimal Inch): 2.2000 | Shank Length (Decimal Inch): 3.0000 |
| Neck Diameter (Inch): 1.1020 | Modular Connection Size: 3/4 in |
| Coolant Hole Thread Size: “1/4-18 NPT” | Tool Application: Drilling |
| Tool Performance: General Purpose | Insert Size (Decimal Inch): 0.2130 |
| UNSPSC Code: 23291503 | Insert Compatibility: SOMX050204 |
| Collar Diameter (Decimal Inch): 1.1020 | Insert Lock Screw: SR 34-533/L |
| Coolant Through: Yes | Country of Origin: Israel |
| Compatible Drill Style: DR | |
| Maximum Drill Diameter (Inch): 11/16 | |
| Maximum Drill Diameter (Decimal Inch): 0.7280 | |
| Maximum Drill Depth (Decimal Inch): 1.3800 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 3/4 | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 1.0000 to 2.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: SOMX | |
| Compatible Insert Size Code: 050204 | |
| Drill Depth by Diameter Ratio: 2xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 5.2000 | |
| Series: DR-2D-N | |
| Flute Length (Decimal Inch): 1.3800 | |
| Body Length (Decimal Inch): 2.2000 | |
| Shank Length (Decimal Inch): 3.0000 | |
| Neck Diameter (Inch): 1.1020 | |
| Modular Connection Size: 3/4 in | |
| Coolant Hole Thread Size: “1/4-18 NPT” | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.2130 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: SOMX050204 | |
| Collar Diameter (Decimal Inch): 1.1020 | |
| Insert Lock Screw: SR 34-533/L | |
| Coolant Through: Yes | |
| Country of Origin: Israel |
| MSC# | 75957795 |
| Mfr# | 3201356 |
