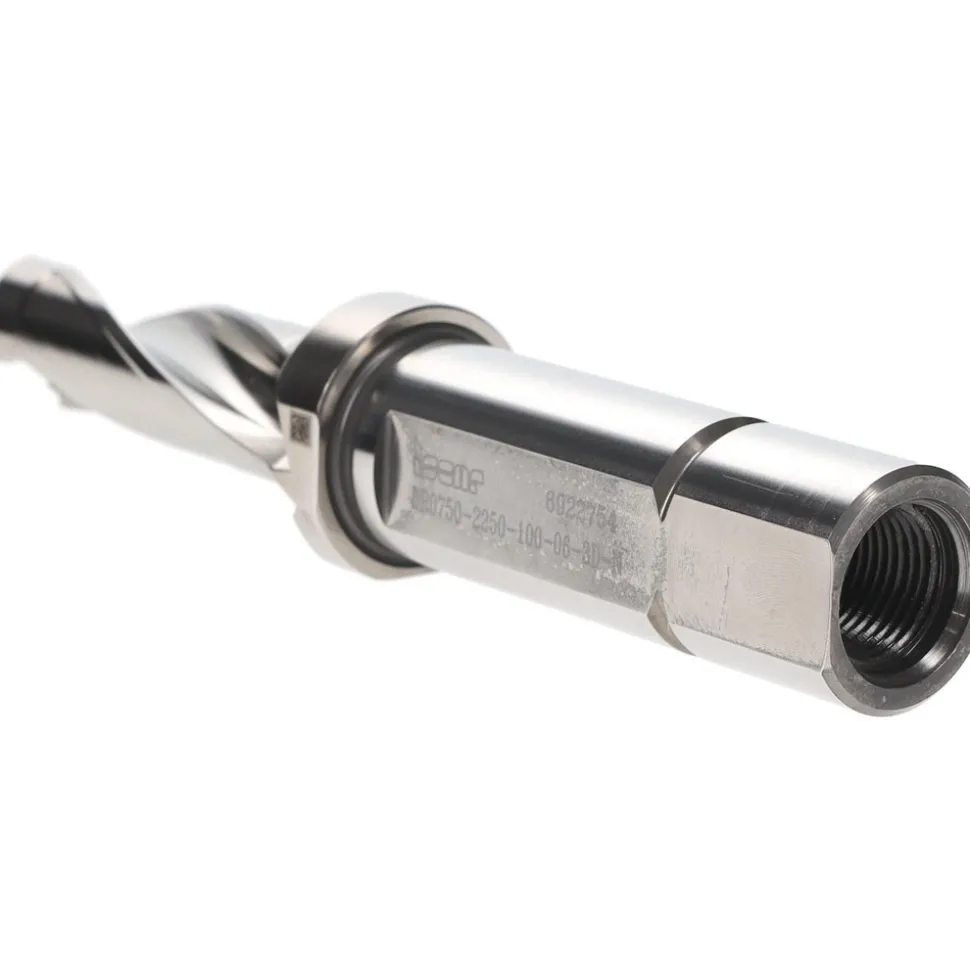

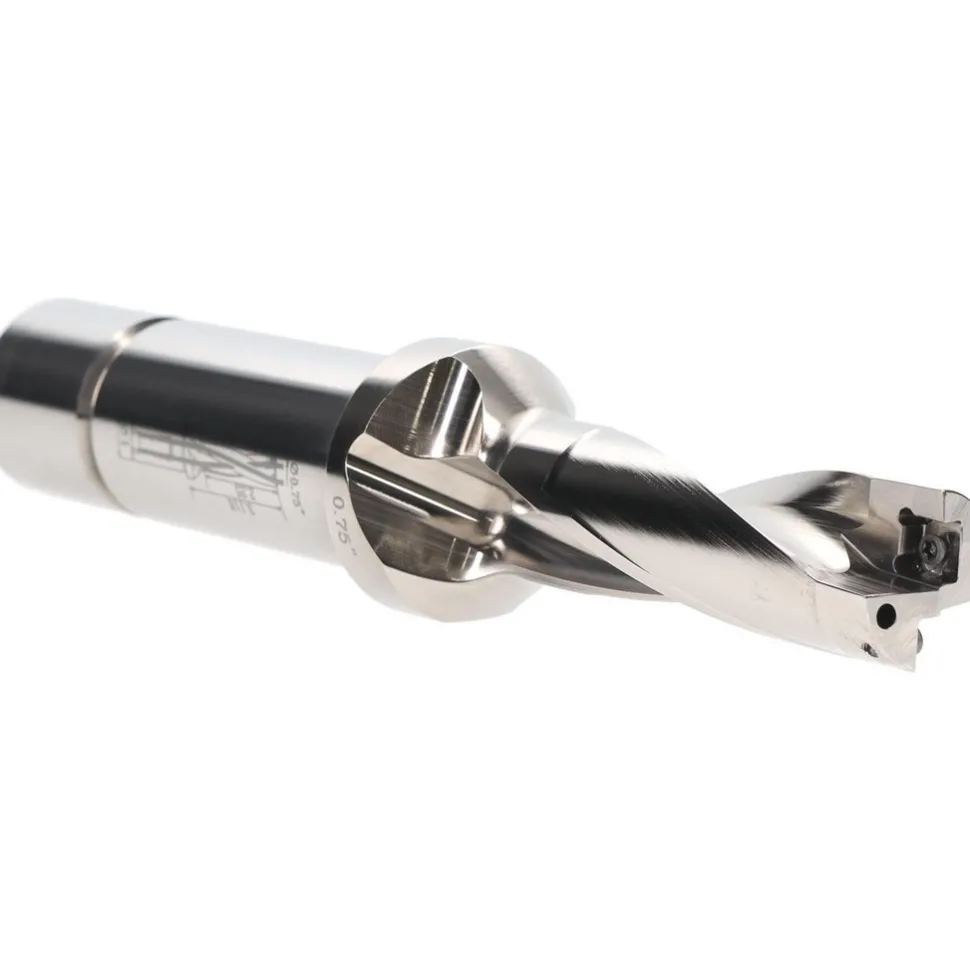

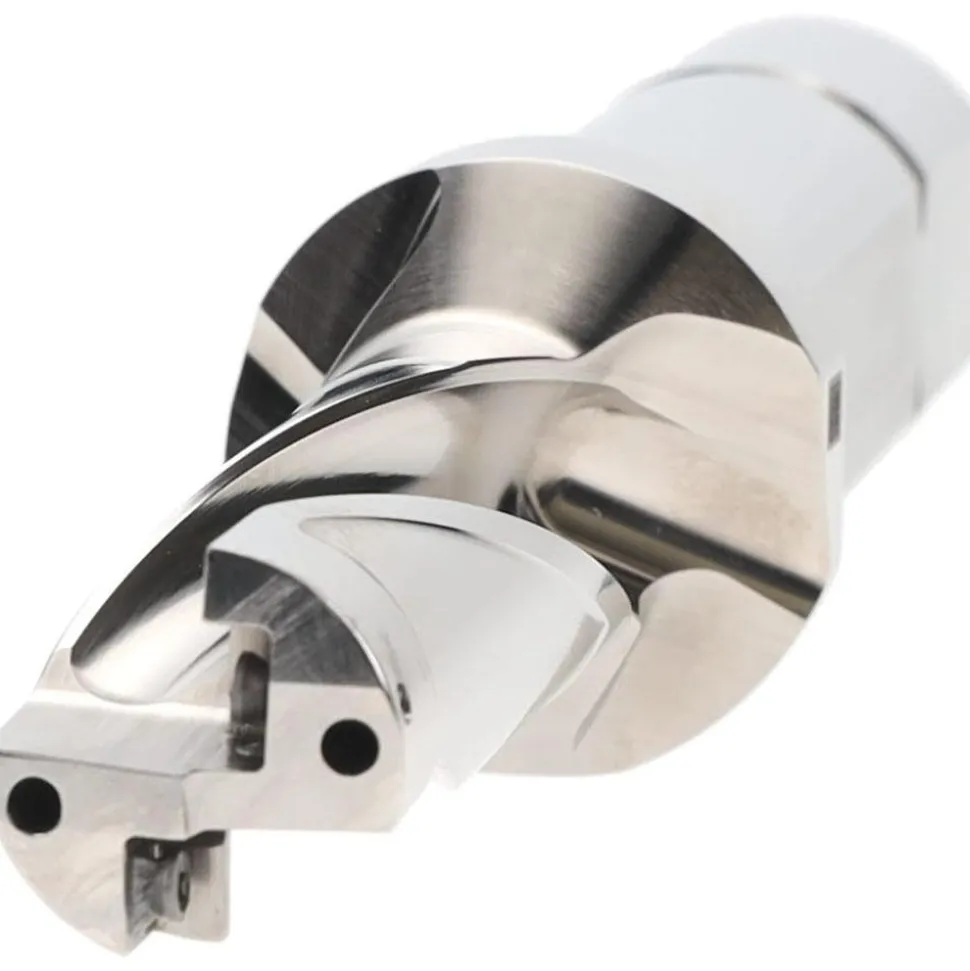

Indexable Insert Drill: DR0750-2250-100-06-3, 3/4″ Max Dia, 2-1/4″ Max Depth, 3xD, 1″ Shank Dia
136,89 $

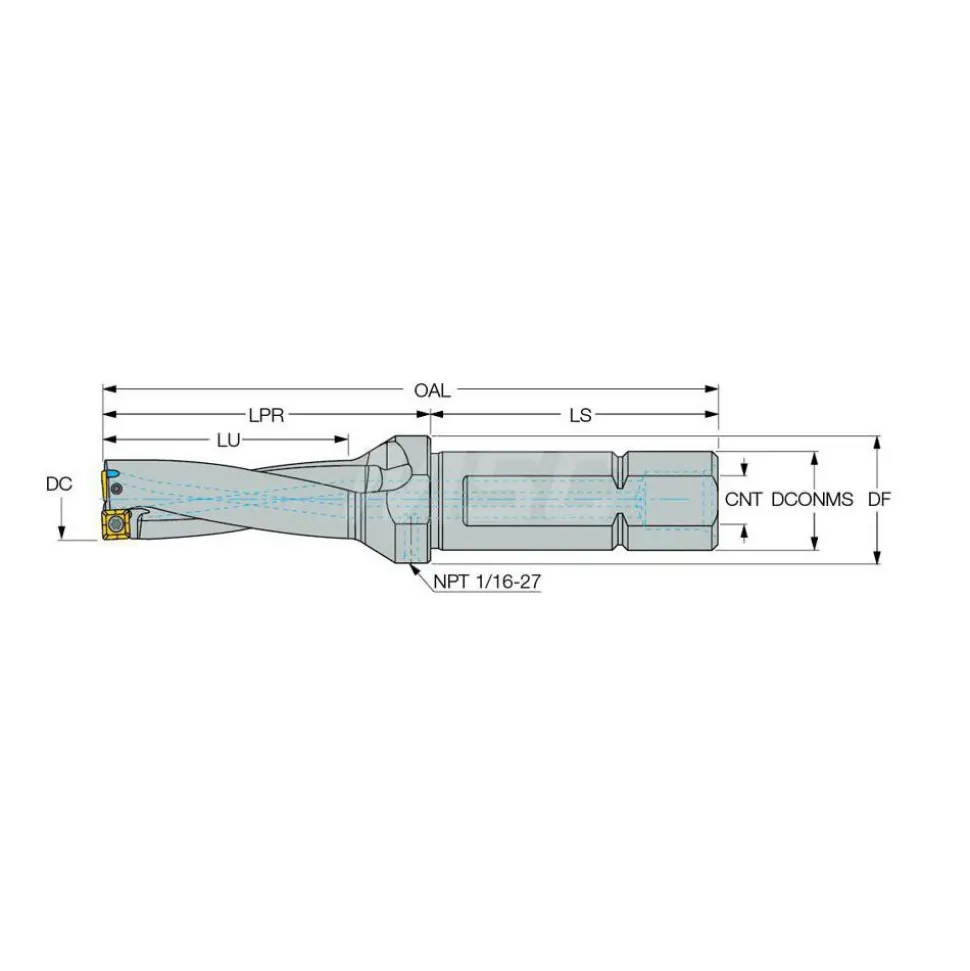

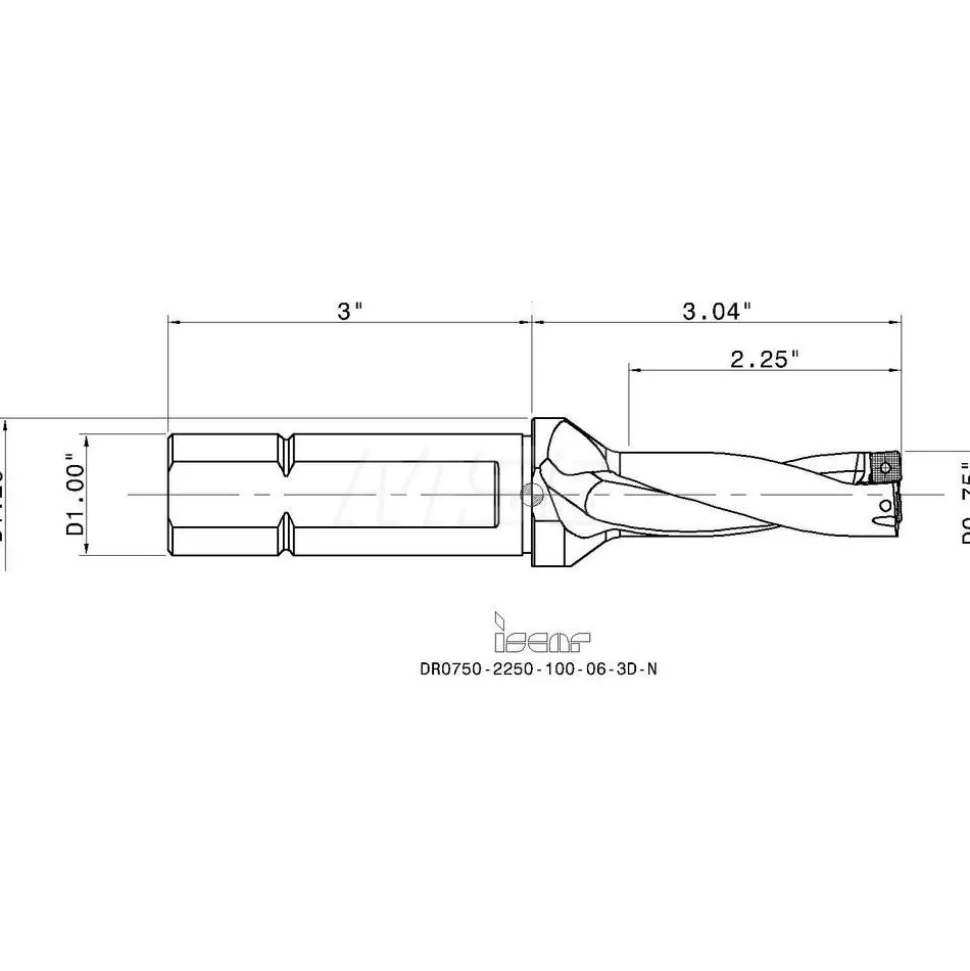

Specifications
| Compatible Drill Style: DR | Maximum Drill Diameter (Inch): 3/4 |
| Maximum Drill Diameter (Decimal Inch): 0.8190 | Maximum Drill Depth (Inch): 2-1/4 |
| Maximum Drill Depth (Decimal Inch): 2.2500 | Shank Type: Flange; Weldon Flat |
| Shank Diameter (Inch): 1 | Shank Diameter (Decimal Inch): 1.0000 |
| Number of Drill Inserts: 2 | Cutting Direction: Right Hand |
| Maximum Drill Depth Range (Decimal Inch): 2.0000 to 3.0000 | Tool Material: Steel |
| Compatible Insert Style: SOMX | Compatible Insert Size Code: 060304 |
| Drill Depth by Diameter Ratio: 3xD | Coolant Entry Style Code: 1-Axial Concentric Entry |
| Overall Length (Decimal Inch): 6.1200 | Series: DR-3D-N |
| Flute Length (Decimal Inch): 2.2500 | Body Length (Decimal Inch): 3.1200 |
| Shank Length (Decimal Inch): 3.0000 | Neck Diameter (Inch): 1.2600 |
| Modular Connection Size: 1 in | Coolant Hole Thread Size: “1/4-18 NPT” |
| Tool Application: Drilling | Tool Performance: General Purpose |
| Insert Size (Decimal Inch): 0.2441 | UNSPSC Code: 23291503 |
| Insert Compatibility: SOMX060304 | Collar Diameter (Decimal Inch): 1.2600 |
| Insert Lock Screw: SR 34-508/L | Coolant Through: Yes |
| Country of Origin: Israel | |
| Compatible Drill Style: DR | |
| Maximum Drill Diameter (Inch): 3/4 | |
| Maximum Drill Diameter (Decimal Inch): 0.8190 | |
| Maximum Drill Depth (Inch): 2-1/4 | |
| Maximum Drill Depth (Decimal Inch): 2.2500 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 1 | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Number of Drill Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 2.0000 to 3.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: SOMX | |
| Compatible Insert Size Code: 060304 | |
| Drill Depth by Diameter Ratio: 3xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 6.1200 | |
| Series: DR-3D-N | |
| Flute Length (Decimal Inch): 2.2500 | |
| Body Length (Decimal Inch): 3.1200 | |
| Shank Length (Decimal Inch): 3.0000 | |
| Neck Diameter (Inch): 1.2600 | |
| Modular Connection Size: 1 in | |
| Coolant Hole Thread Size: “1/4-18 NPT” | |
| Tool Application: Drilling | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.2441 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: SOMX060304 | |
| Collar Diameter (Decimal Inch): 1.2600 | |
| Insert Lock Screw: SR 34-508/L | |
| Coolant Through: Yes | |
| Country of Origin: Israel |
| MSC# | 63111538 |
| Mfr# | 3201364 |
