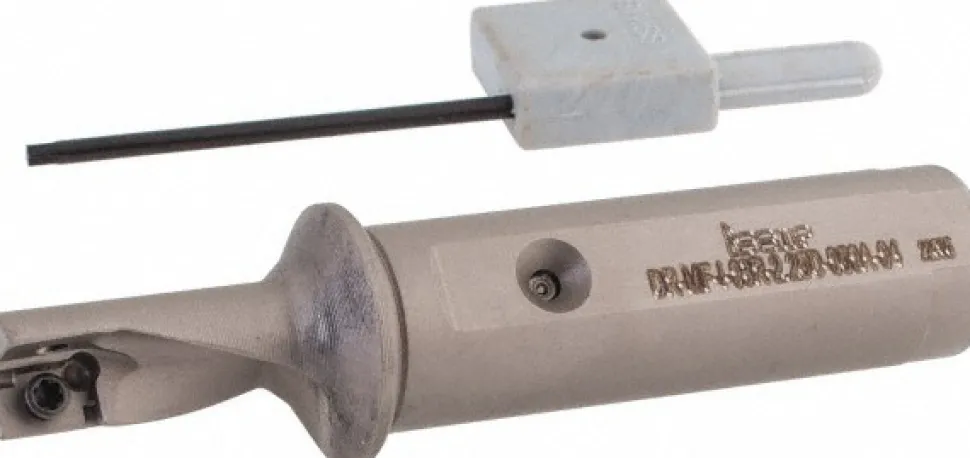

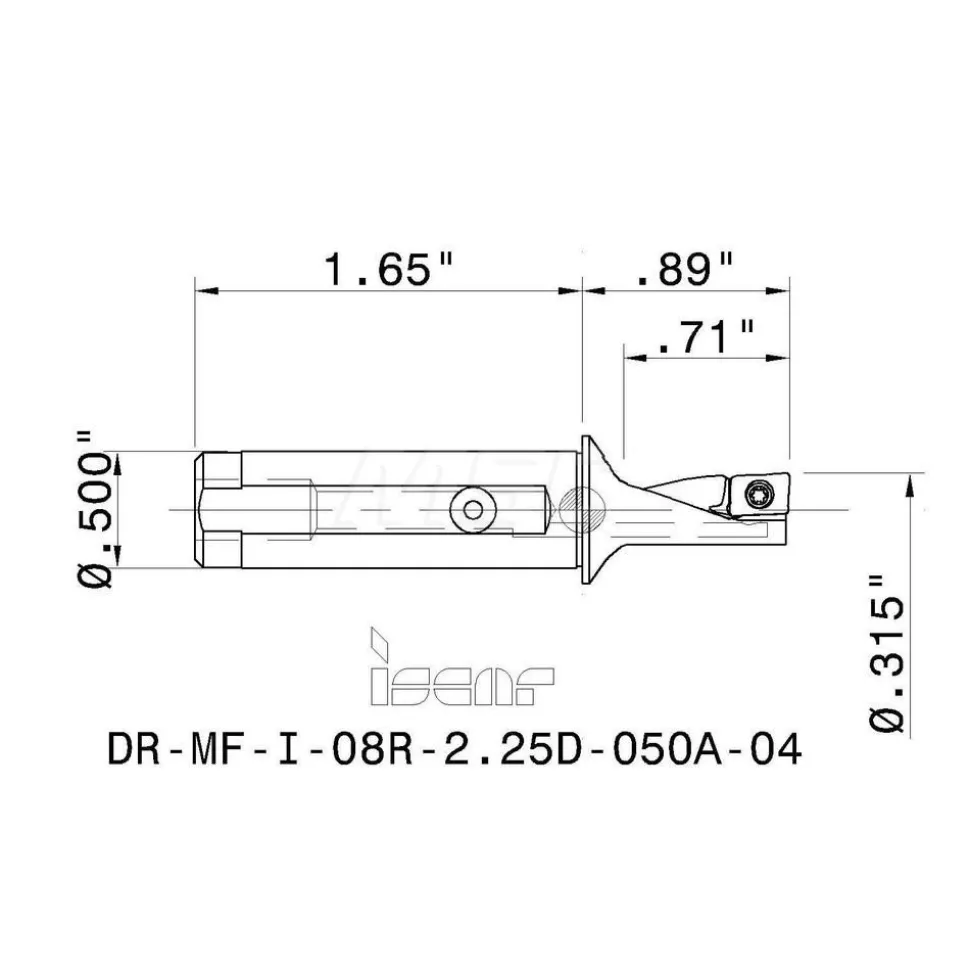

Indexable Insert Drill: DRMFI08R2.25D050A04, 0.3150″ Max Dia, 0.7100″ Max Depth, 2.25xD, 0.5000″ Shank Dia
Original price was: 343,00 $.132,99 $Current price is: 132,99 $.
Specifications
| Compatible Drill Style: DR-MF | Maximum Drill Diameter (Decimal Inch): 0.3150 |
| Maximum Drill Depth (Decimal Inch): 0.7100 | Shank Type: Flange; Weldon Flat |
| Shank Diameter (Inch): 1/2 | Shank Diameter (Decimal Inch): 0.5000 |
| Number of Drill Inserts: 1 | Cutting Direction: Right Hand |
| Maximum Drill Depth Range (Decimal Inch): 0.0000 to 1.0000 | Tool Material: Steel |
| Compatible Insert Style: XCMT | Compatible Insert Size Code: 040104 |
| Drill Depth by Diameter Ratio: 2.25xD | Coolant Entry Style Code: 1-Axial Concentric Entry |
| Overall Length (Decimal Inch): 2.5400 | Series: DRG-MF |
| Flute Length (Decimal Inch): 0.7100 | Body Length (Decimal Inch): 0.8900 |
| Shank Length (Decimal Inch): 1.6500 | Modular Connection Size: 1/2 in |
| Coolant Hole Thread Size: “1/16-28 G(BSP)” | Tool Application: Drilling; Facing; Turning; Internal Grooving; Boring |
| Tool Performance: General Purpose | Insert Size (Decimal Inch): 0.1730 |
| UNSPSC Code: 23291503 | Insert Compatibility: XCMT040104 |
| Insert Lock Screw: SR 18034/HG-P | Coolant Through: Yes |
| Country of Origin: South Korea | |
| Compatible Drill Style: DR-MF | |
| Maximum Drill Diameter (Decimal Inch): 0.3150 | |
| Maximum Drill Depth (Decimal Inch): 0.7100 | |
| Shank Type: Flange; Weldon Flat | |
| Shank Diameter (Inch): 1/2 | |
| Shank Diameter (Decimal Inch): 0.5000 | |
| Number of Drill Inserts: 1 | |
| Cutting Direction: Right Hand | |
| Maximum Drill Depth Range (Decimal Inch): 0.0000 to 1.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: XCMT | |
| Compatible Insert Size Code: 040104 | |
| Drill Depth by Diameter Ratio: 2.25xD | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Overall Length (Decimal Inch): 2.5400 | |
| Series: DRG-MF | |
| Flute Length (Decimal Inch): 0.7100 | |
| Body Length (Decimal Inch): 0.8900 | |
| Shank Length (Decimal Inch): 1.6500 | |
| Modular Connection Size: 1/2 in | |
| Coolant Hole Thread Size: “1/16-28 G(BSP)” | |
| Tool Application: Drilling; Facing; Turning; Internal Grooving; Boring | |
| Tool Performance: General Purpose | |
| Insert Size (Decimal Inch): 0.1730 | |
| UNSPSC Code: 23291503 | |
| Insert Compatibility: XCMT040104 | |
| Insert Lock Screw: SR 18034/HG-P | |
| Coolant Through: Yes | |
| Country of Origin: South Korea |
| MSC# | 93981470 |
| Mfr# | 3202368 |
