Sale!

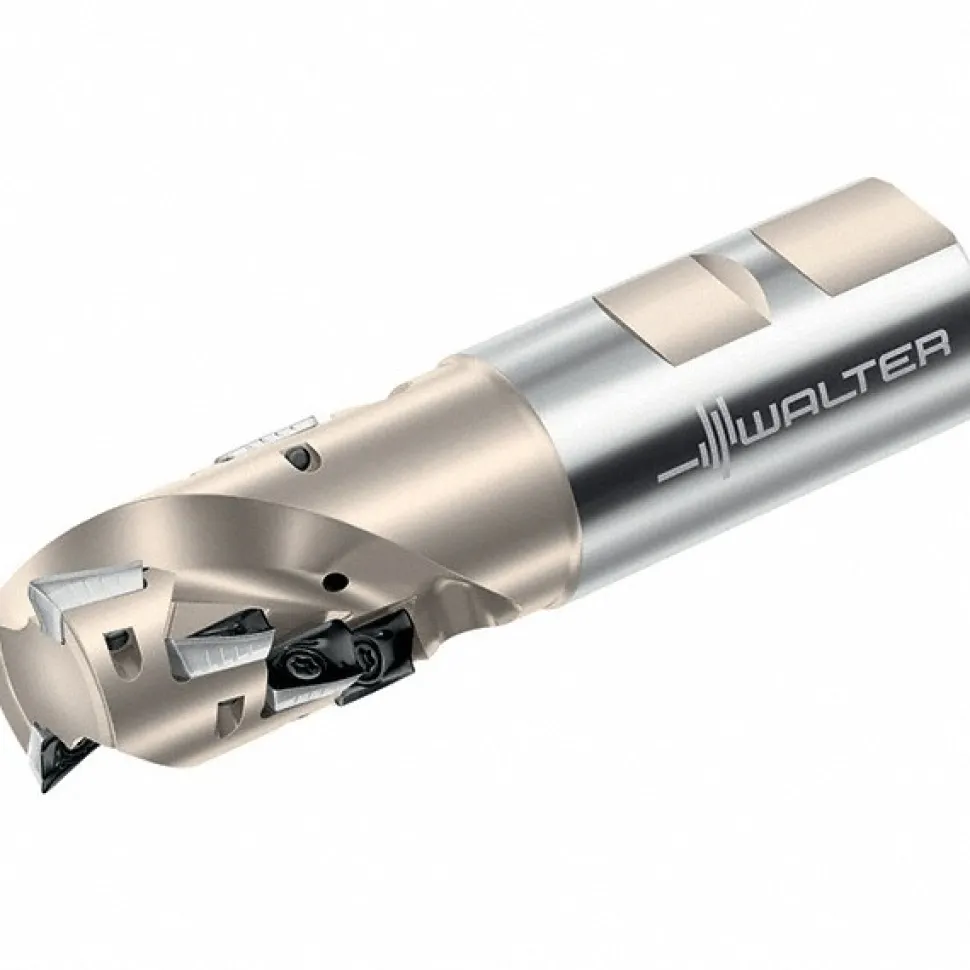

Indexable Square-Shoulder End Mill: F4238.UW31.038.Z03.57, 1-1/2″ Cut Dia, 2.244″ Max Depth of Cut, 1-1/4″ Dia Weldon Flat Shank
Original price was: 1 433,00 $.136,99 $Current price is: 136,99 $.
Specifications
| Cutting Diameter (Decimal Inch): 1.5000 in | Cutting Diameter (mm): 38.10 |
| Cutting Diameter: 1-1/2 | Maximum Depth of Cut (Decimal Inch): 2.2440 |
| Cutter Style: F4238 | Shank Type: Weldon Flat |
| Shank Diameter (Decimal Inch): 1.2500 | Shank Diameter (Inch): 1-1/4 |
| Insert Holding Method: Screw | Lead Angle: 90 |
| Head Length (Decimal Inch): 3.1500 | Tool Application: Helical |
| Primary Workpiece Material: Universal | Primary Workpiece Material Code: P; S; K; M; N |
| Secondary Workpiece Material: Glass; Graphite | Secondary Workpiece Material Code: O |
| Standards: ISO:ANSI | Insert Compatibility: ADMT 160608R-G56; ADMT 160608R-D56; ADMT 160616R-F56; ADMT 160612R-F56; ADHT 160616R-G88; ADMT 160608R-F56; ADMT 160620R-F56; ADKT1606PER-F56; ADHT 160630R-G88; ADGT 1606PER-D56; ADHT 160625R-G88; ADGT 1606PER-F56; ADHT 160640R-G88; ADGT 1606PER-D51; ADHT 1606PER-G88 |
| ISO Number: F4238.UW31.038.Z03.57 | UNSPSC Code: 27112803 |
| Number Of Flutes: 3 | Number Of Cutter Inserts: 12 |
| Coolant Through: Yes | Country of Origin: China |
| Cutting Diameter (Decimal Inch): 1.5000 in | |
| Cutting Diameter (mm): 38.10 | |
| Cutting Diameter: 1-1/2 | |
| Maximum Depth of Cut (Decimal Inch): 2.2440 | |
| Cutter Style: F4238 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 1.2500 | |
| Shank Diameter (Inch): 1-1/4 | |
| Insert Holding Method: Screw | |
| Lead Angle: 90 | |
| Head Length (Decimal Inch): 3.1500 | |
| Tool Application: Helical | |
| Primary Workpiece Material: Universal | |
| Primary Workpiece Material Code: P; S; K; M; N | |
| Secondary Workpiece Material: Glass; Graphite | |
| Secondary Workpiece Material Code: O | |
| Standards: ISO:ANSI | |
| Insert Compatibility: ADMT 160608R-G56; ADMT 160608R-D56; ADMT 160616R-F56; ADMT 160612R-F56; ADHT 160616R-G88; ADMT 160608R-F56; ADMT 160620R-F56; ADKT1606PER-F56; ADHT 160630R-G88; ADGT 1606PER-D56; ADHT 160625R-G88; ADGT 1606PER-F56; ADHT 160640R-G88; ADGT 1606PER-D51; ADHT 1606PER-G88 | |
| ISO Number: F4238.UW31.038.Z03.57 | |
| UNSPSC Code: 27112803 | |
| Number Of Flutes: 3 | |
| Number Of Cutter Inserts: 12 | |
| Coolant Through: Yes | |
| Country of Origin: China |
| MSC# | 53056743 |
| Mfr# | 5197296 |
