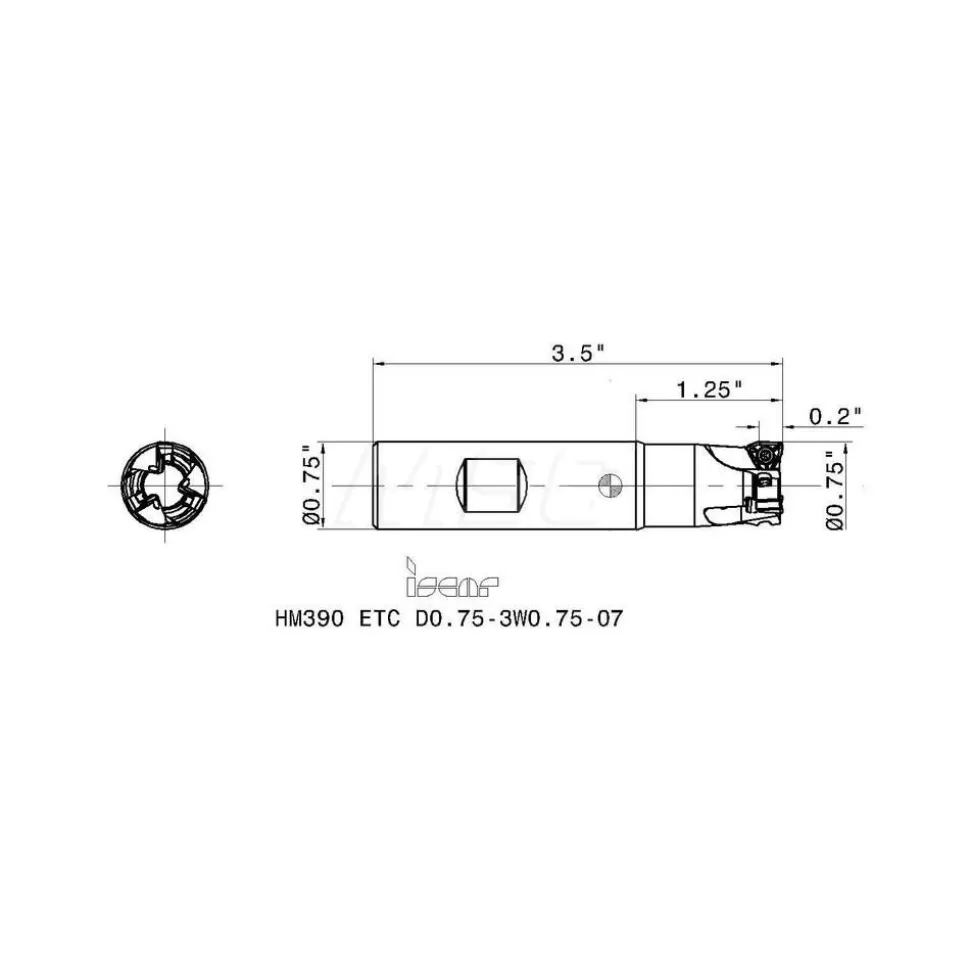

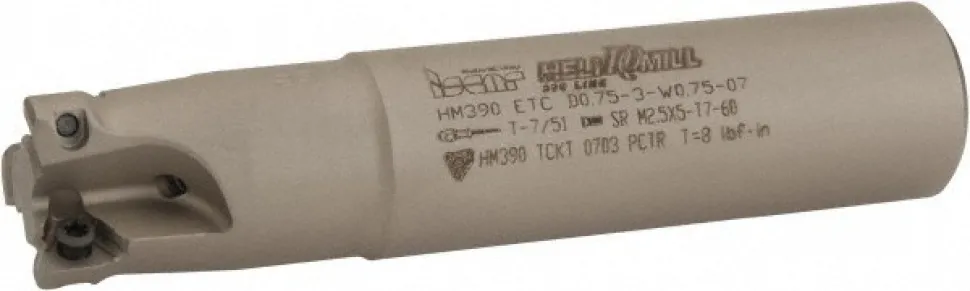

Indexable Square-Shoulder End Mill: HM390ETCD075W3W0.75-07, 3/4″ Cut Dia, 0.2″ Max Depth of Cut, 3/4″ Dia Weldon Flat Shank
Original price was: 409,00 $.124,89 $Current price is: 124,89 $.
Specifications
| Cutting Diameter (Decimal Inch): 0.7500 in | Cutting Diameter: 3/4 |
| Overall Length (Decimal Inch): 3.5000 | Overall Length (Inch): 3-1/2 |
| Maximum Depth of Cut (Decimal Inch): 0.2000 | Cutter Style: HM390 ETC-07 |
| Shank Type: Weldon Flat | Shank Diameter (Decimal Inch): 0.7500 |
| Shank Diameter (Inch): 3/4 | Insert Holding Method: Screw |
| Maximum Ramping Angle: 1.5 | Series: HeliIQMill |
| Flute Type: Helical | Lead Angle: 0 |
| Shank Length (Decimal Inch): 2.2500 | Head Length (Decimal Inch): 1.2500 |
| Tool Application: Milling | Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Insert Compatibility: HM390 TCKT 0703PCTR | UNSPSC Code: 27112803 |
| Manufacturers Catalog Number: HM390 ETC D.0.75-3W0.75-07 | Number Of Cutter Inserts: 3 |
| Coolant Through: Yes | Country of Origin: Israel |
| Cutting Diameter (Decimal Inch): 0.7500 in | |
| Cutting Diameter: 3/4 | |
| Overall Length (Decimal Inch): 3.5000 | |
| Overall Length (Inch): 3-1/2 | |
| Maximum Depth of Cut (Decimal Inch): 0.2000 | |
| Cutter Style: HM390 ETC-07 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Shank Diameter (Inch): 3/4 | |
| Insert Holding Method: Screw | |
| Maximum Ramping Angle: 1.5 | |
| Series: HeliIQMill | |
| Flute Type: Helical | |
| Lead Angle: 0 | |
| Shank Length (Decimal Inch): 2.2500 | |
| Head Length (Decimal Inch): 1.2500 | |
| Tool Application: Milling | |
| Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 | |
| Insert Compatibility: HM390 TCKT 0703PCTR | |
| UNSPSC Code: 27112803 | |
| Manufacturers Catalog Number: HM390 ETC D.0.75-3W0.75-07 | |
| Number Of Cutter Inserts: 3 | |
| Coolant Through: Yes | |
| Country of Origin: Israel |
| MSC# | 69397701 |
| Mfr# | 3106937 |
| Big Book# | 690 |
