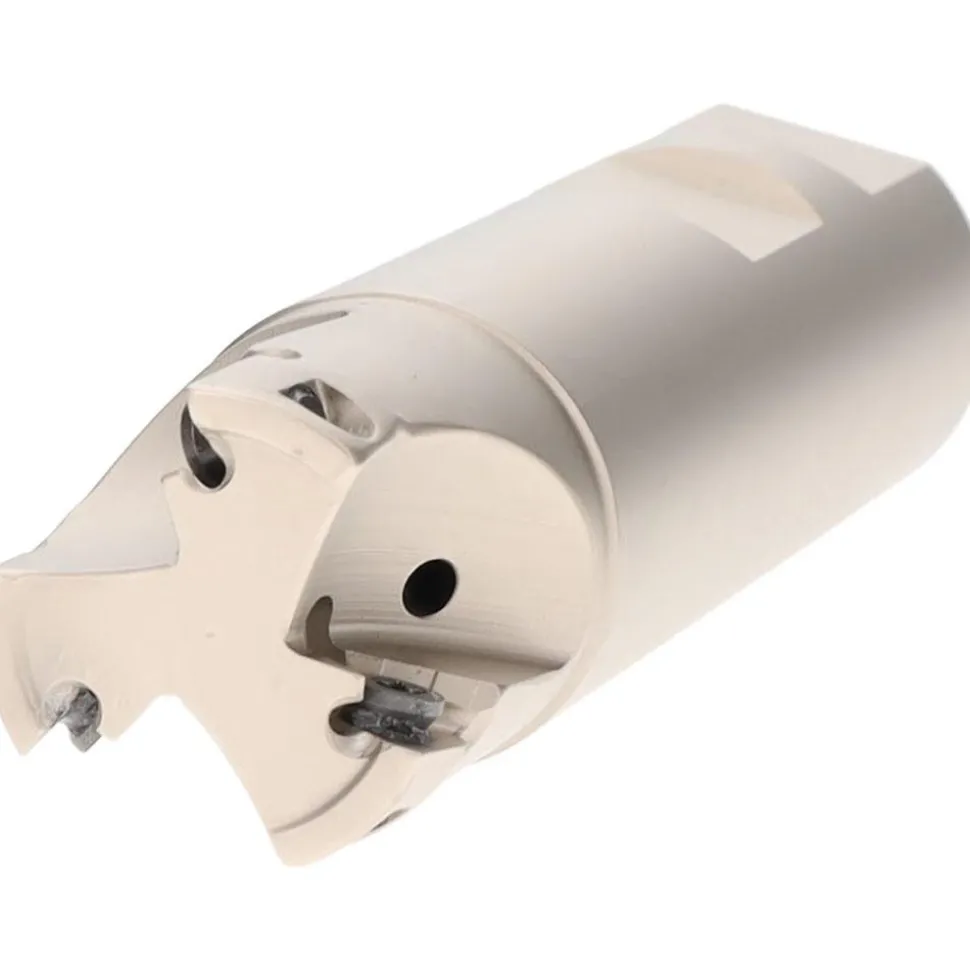

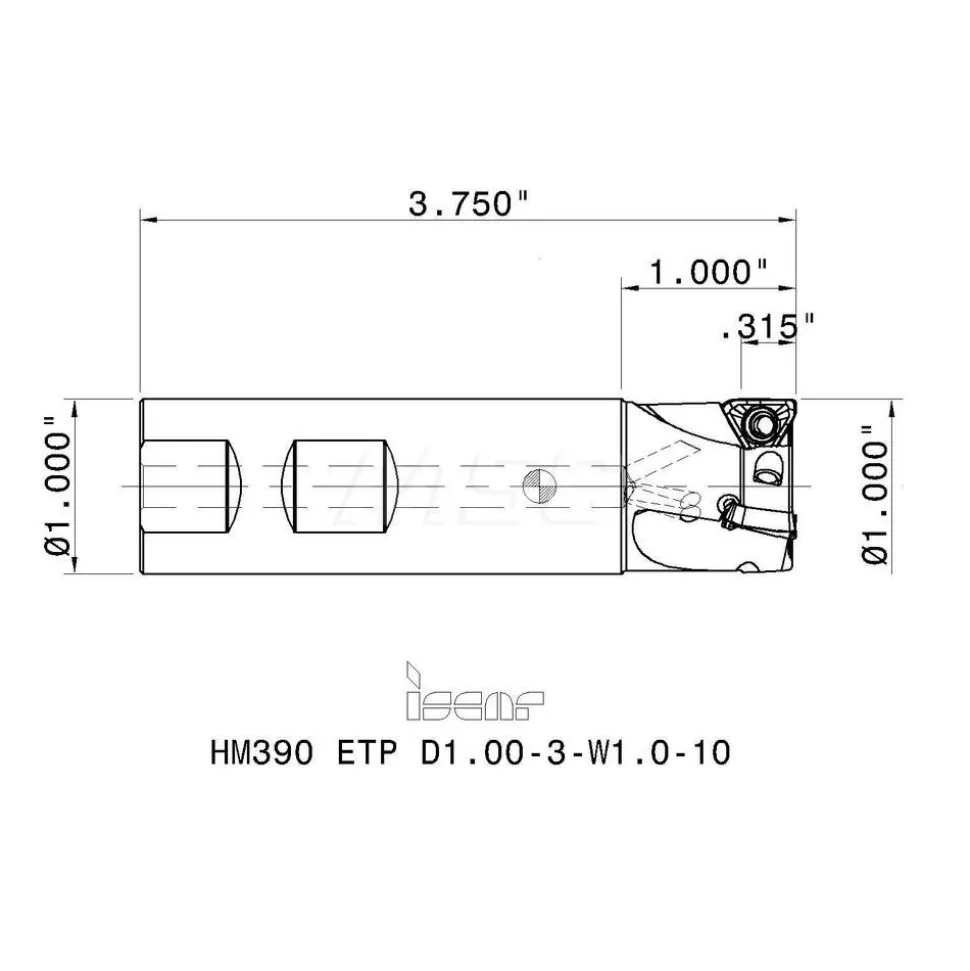

Indexable Square-Shoulder End Mill: HM390ETPD1.003W1.010, 1″ Cut Dia, 0.315″ Max Depth of Cut, 1″ Dia Weldon Flat Shank
Original price was: 462,00 $.140,99 $Current price is: 140,99 $.
Specifications
| Cutting Diameter (Decimal Inch): 1.0000 in | Cutting Diameter: 1 |
| Overall Length (Decimal Inch): 3.7500 | Overall Length (Inch): 3-3/4 |
| Maximum Depth of Cut (Decimal Inch): 0.3150 | Cutter Style: HM390 ETP-10 |
| Shank Type: Weldon Flat | Shank Diameter (Decimal Inch): 1.0000 |
| Shank Diameter (Inch): 1 | Insert Holding Method: Screw |
| Maximum Ramping Angle: 2.9 | Tool Material: Solid Carbide |
| Series: HeliIQMill | Flute Type: Helical |
| Lead Angle: 90 | Shank Length (Decimal Inch): 2.7500 |
| Head Length (Decimal Inch): 1.0000 | Tool Application: Milling |
| Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 | Insert Compatibility: HM390 TPKT 1003 |
| UNSPSC Code: 27112803 | Manufacturers Catalog Number: HM390 ETP D1.00-3-W1.0-10 |
| Number Of Flutes: 3 | Number Of Cutter Inserts: 3 |
| Coolant Through: Yes | Country of Origin: Israel |
| Cutting Diameter (Decimal Inch): 1.0000 in | |
| Cutting Diameter: 1 | |
| Overall Length (Decimal Inch): 3.7500 | |
| Overall Length (Inch): 3-3/4 | |
| Maximum Depth of Cut (Decimal Inch): 0.3150 | |
| Cutter Style: HM390 ETP-10 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Shank Diameter (Inch): 1 | |
| Insert Holding Method: Screw | |
| Maximum Ramping Angle: 2.9 | |
| Tool Material: Solid Carbide | |
| Series: HeliIQMill | |
| Flute Type: Helical | |
| Lead Angle: 90 | |
| Shank Length (Decimal Inch): 2.7500 | |
| Head Length (Decimal Inch): 1.0000 | |
| Tool Application: Milling | |
| Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 | |
| Insert Compatibility: HM390 TPKT 1003 | |
| UNSPSC Code: 27112803 | |
| Manufacturers Catalog Number: HM390 ETP D1.00-3-W1.0-10 | |
| Number Of Flutes: 3 | |
| Number Of Cutter Inserts: 3 | |
| Coolant Through: Yes | |
| Country of Origin: Israel |
| MSC# | 70255849 |
| Mfr# | 3106627 |
| Big Book# | 690 |
