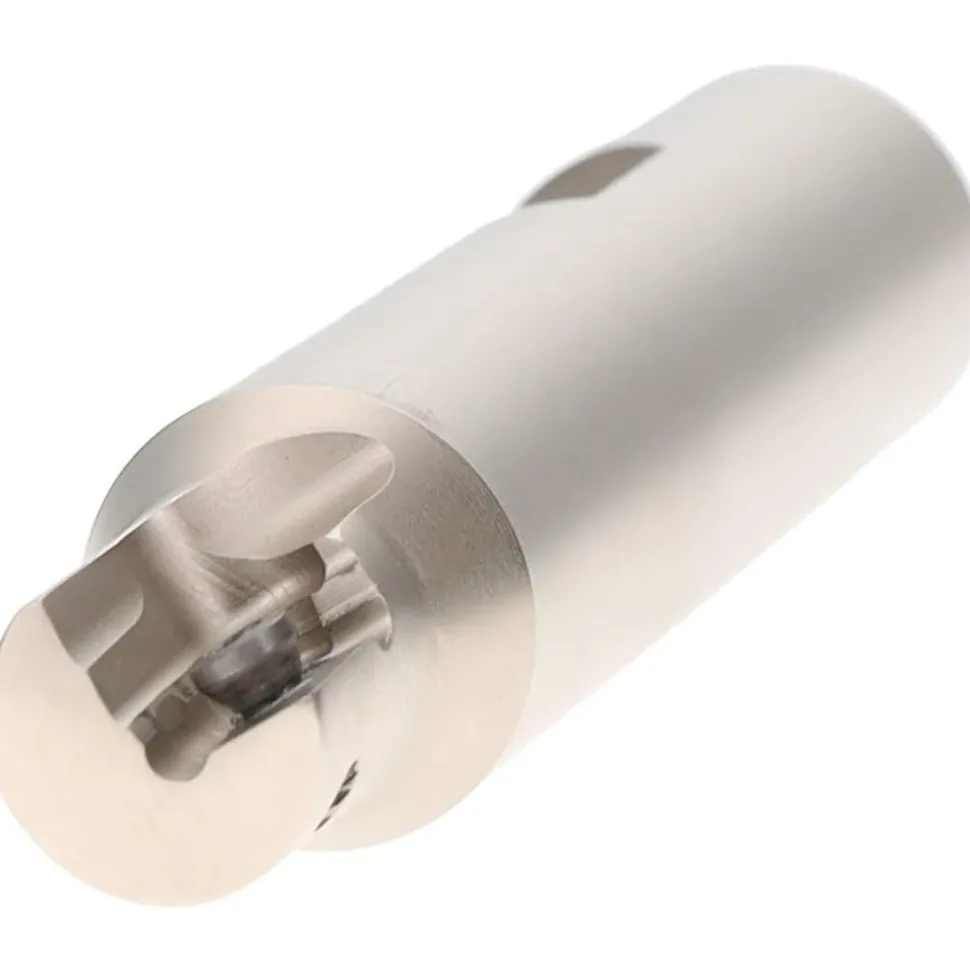

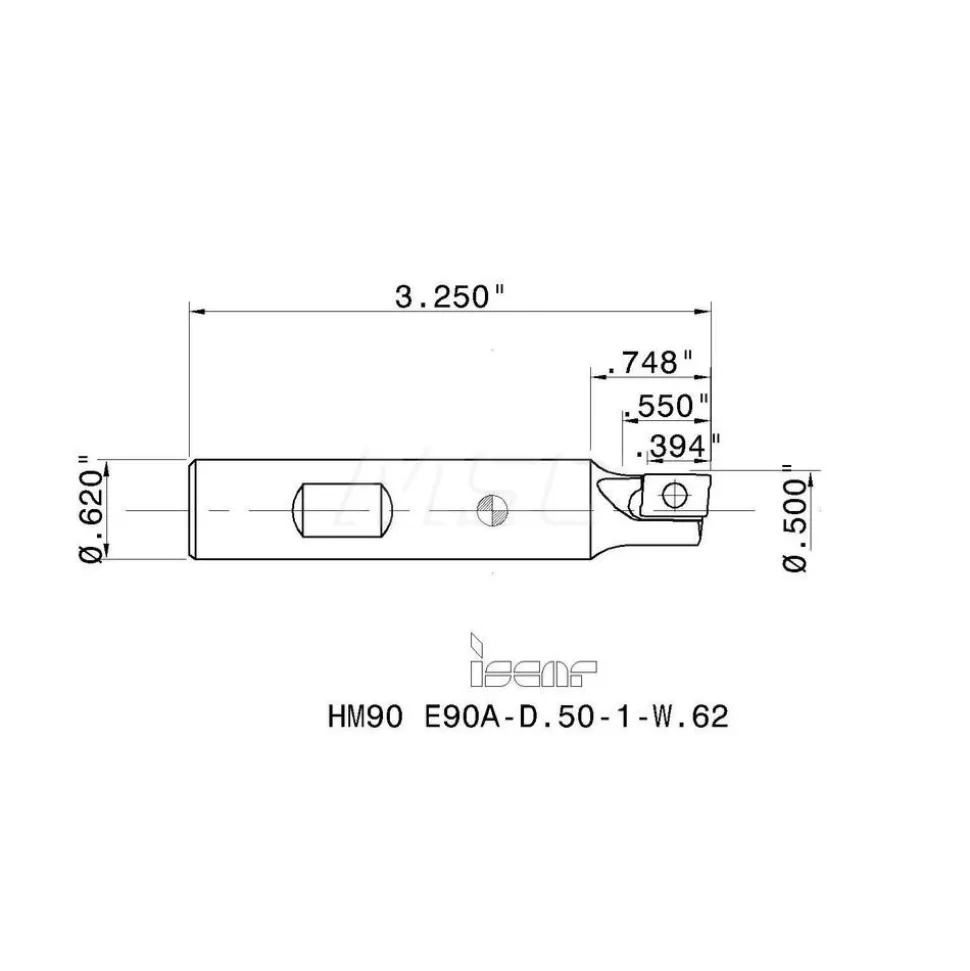

Indexable Square-Shoulder End Mill: HM90 E90A-D.50-1-W.62, 1/2″ Cut Dia, 0.394″ Max Depth of Cut, 5/8″ Dia Weldon Flat Shank
Original price was: 309,00 $.122,99 $Current price is: 122,99 $.
Specifications
| Cutting Diameter (Decimal Inch): 0.5000 in | Cutting Diameter: 1/2 |
| Overall Length (Decimal Inch): 3.2500 | Overall Length (Inch): 3-1/4 |
| Maximum Depth of Cut (Decimal Inch): 0.3940 | Cutter Style: HM90 E90A-10 |
| Shank Type: Weldon Flat | Shank Diameter (Decimal Inch): 0.6250 |
| Shank Diameter (Inch): 5/8 | Insert Holding Method: Screw |
| Maximum Ramping Angle: 32 | Tool Material: Solid Carbide |
| Series: Heli2000 | Lead Angle: 90 |
| Shank Length (Decimal Inch): 2.2200 | Head Length (Decimal Inch): 0.7500 |
| Tool Application: Milling | Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Insert Compatibility: AP..1003..; HM90 AP..1003.. | UNSPSC Code: 27112803 |
| Manufacturers Catalog Number: HM90 E90A-D.50-1-W.62 | Number Of Flutes: 1 |
| Usable Length (Decimal Inch): 0.5500 | Number Of Cutter Inserts: 1 |
| Coolant Through: No | Country of Origin: Israel |
| Cutting Diameter (Decimal Inch): 0.5000 in | |
| Cutting Diameter: 1/2 | |
| Overall Length (Decimal Inch): 3.2500 | |
| Overall Length (Inch): 3-1/4 | |
| Maximum Depth of Cut (Decimal Inch): 0.3940 | |
| Cutter Style: HM90 E90A-10 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 0.6250 | |
| Shank Diameter (Inch): 5/8 | |
| Insert Holding Method: Screw | |
| Maximum Ramping Angle: 32 | |
| Tool Material: Solid Carbide | |
| Series: Heli2000 | |
| Lead Angle: 90 | |
| Shank Length (Decimal Inch): 2.2200 | |
| Head Length (Decimal Inch): 0.7500 | |
| Tool Application: Milling | |
| Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 | |
| Insert Compatibility: AP..1003..; HM90 AP..1003.. | |
| UNSPSC Code: 27112803 | |
| Manufacturers Catalog Number: HM90 E90A-D.50-1-W.62 | |
| Number Of Flutes: 1 | |
| Usable Length (Decimal Inch): 0.5500 | |
| Number Of Cutter Inserts: 1 | |
| Coolant Through: No | |
| Country of Origin: Israel |
| MSC# | 60840881 |
| Mfr# | 3101944 |
| Big Book# | 690 |
