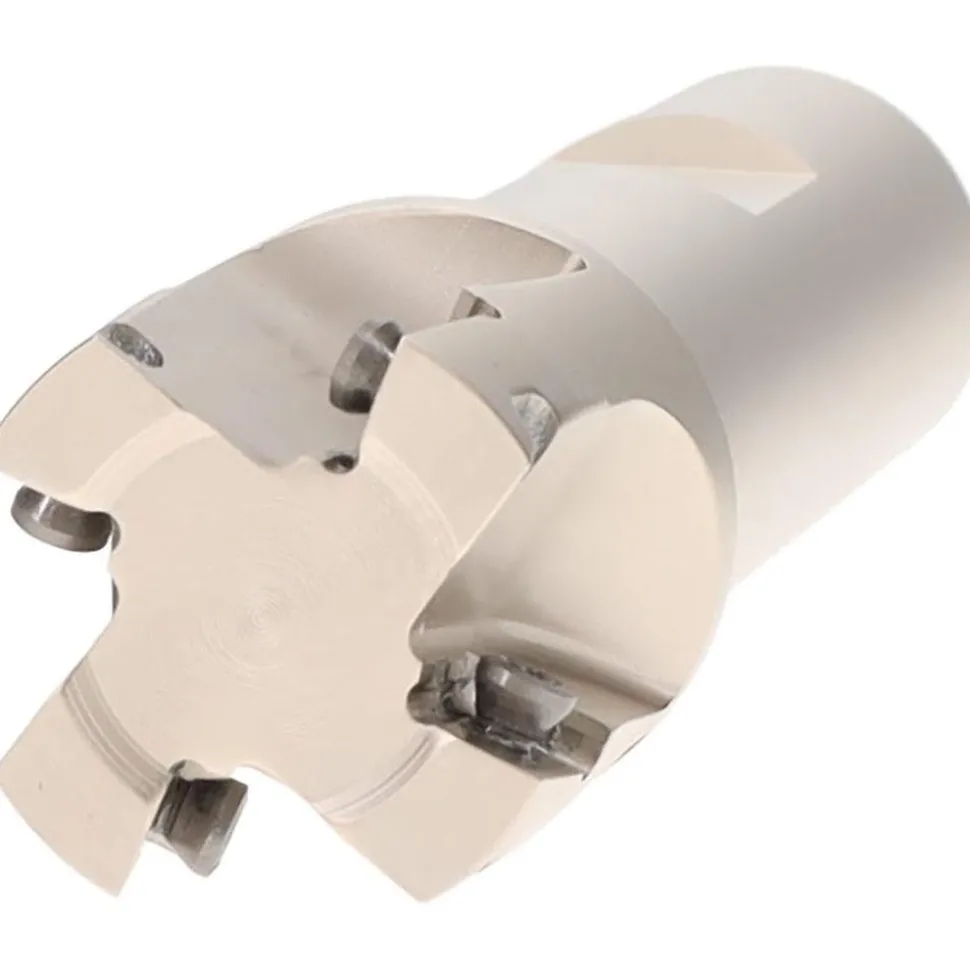

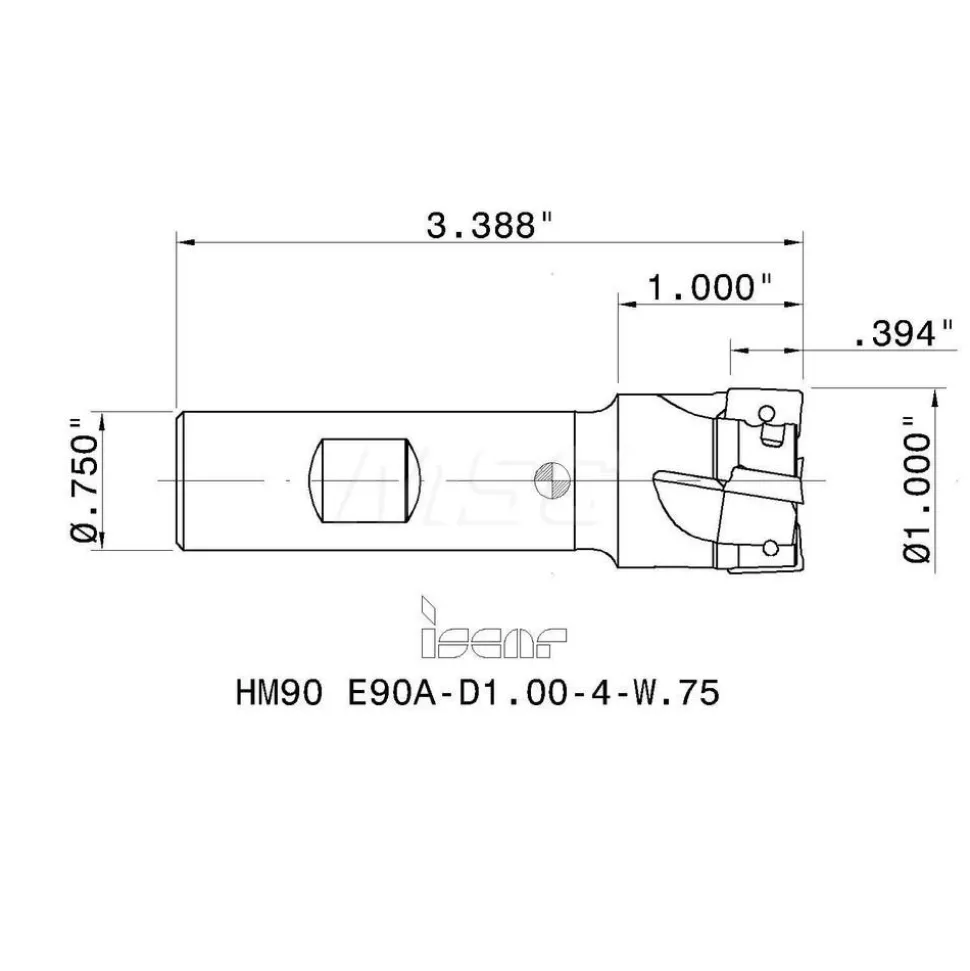

Indexable Square-Shoulder End Mill: HM90 E90A-D1.00-4-W.75, 1″ Cut Dia, 0.394″ Max Depth of Cut, 3/4″ Dia Weldon Flat Shank
138,89 $
Specifications
| Cutting Diameter (Decimal Inch): 1.0000 in | Cutting Diameter: 1 |
| Overall Length (Decimal Inch): 3.3800 | Maximum Depth of Cut (Decimal Inch): 0.3940 |
| Cutter Style: HM90 E90A-10 | Shank Type: Weldon Flat |
| Shank Diameter (Decimal Inch): 0.7500 | Shank Diameter (Inch): 3/4 |
| Insert Holding Method: Screw | Maximum Ramping Angle: 2.5 |
| Tool Material: Solid Carbide | Series: Heli2000 |
| Lead Angle: 90 | Shank Length (Decimal Inch): 2.2500 |
| Head Length (Decimal Inch): 1.0000 | Tool Application: Milling |
| Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 | Insert Compatibility: AP..1003..; HM90 AP..1003.. |
| UNSPSC Code: 27112803 | Manufacturers Catalog Number: HM90 E90A-D1.00-4-W.75 |
| Number Of Flutes: 4 | Number Of Cutter Inserts: 4 |
| Coolant Through: No | Country of Origin: Israel |
| Cutting Diameter (Decimal Inch): 1.0000 in | |
| Cutting Diameter: 1 | |
| Overall Length (Decimal Inch): 3.3800 | |
| Maximum Depth of Cut (Decimal Inch): 0.3940 | |
| Cutter Style: HM90 E90A-10 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Shank Diameter (Inch): 3/4 | |
| Insert Holding Method: Screw | |
| Maximum Ramping Angle: 2.5 | |
| Tool Material: Solid Carbide | |
| Series: Heli2000 | |
| Lead Angle: 90 | |
| Shank Length (Decimal Inch): 2.2500 | |
| Head Length (Decimal Inch): 1.0000 | |
| Tool Application: Milling | |
| Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 | |
| Insert Compatibility: AP..1003..; HM90 AP..1003.. | |
| UNSPSC Code: 27112803 | |
| Manufacturers Catalog Number: HM90 E90A-D1.00-4-W.75 | |
| Number Of Flutes: 4 | |
| Number Of Cutter Inserts: 4 | |
| Coolant Through: No | |
| Country of Origin: Israel |
| MSC# | 60841103 |
| Mfr# | 3101933 |
| Big Book# | 691 |
