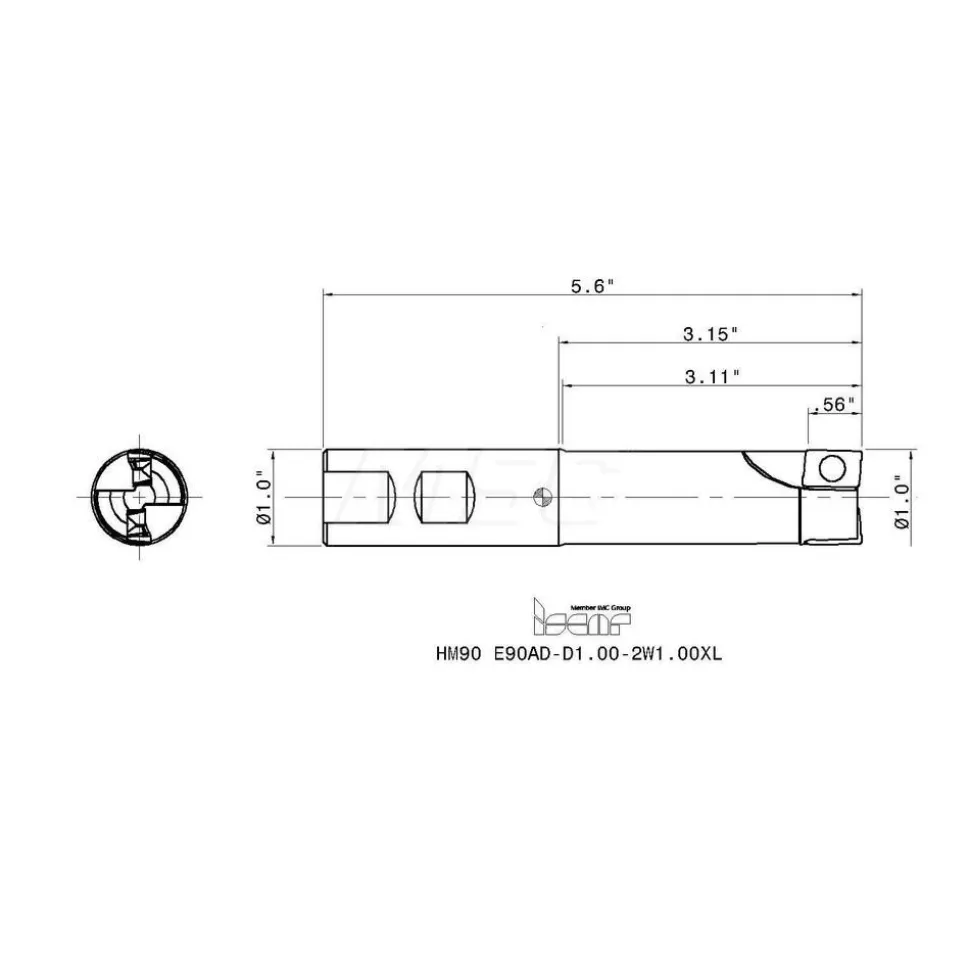

Indexable Square-Shoulder End Mill: HM90E90ADD1.002W1.00XL, 1″ Cut Dia, 0.56″ Max Depth of Cut, 1″ Dia Weldon Flat Shank
124,89 $
Specifications
| Cutting Diameter (Decimal Inch): 1.0000 in | Cutting Diameter: 1 |
| Overall Length (Decimal Inch): 5.6000 | Maximum Depth of Cut (Decimal Inch): 0.5600 |
| Cutter Style: HM90 E90AD-15 | Shank Type: Weldon Flat |
| Shank Diameter (Decimal Inch): 1.0000 | Shank Diameter (Inch): 1 |
| Insert Holding Method: Screw | Maximum Ramping Angle: 11.5 |
| Series: Heli2000 | Lead Angle: 90 |
| Shank Length (Decimal Inch): 2.4500 | Head Length (Decimal Inch): 3.1500 |
| Tool Application: Milling | Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Complete Insert Compatibility: ADKT; HM90ADKW 1505; HM90ADKT; ADKR; ADMT; ADCT; HM90ADCT; ADCR | Insert Compatibility: HM90 AD..1505; AD..1505.. |
| UNSPSC Code: 27112803 | Manufacturers Catalog Number: HM90 E90AD-D1.00-2W1.00XL |
| Number Of Flutes: 2 | Usable Length (Decimal Inch): 3.1100 |
| Number Of Cutter Inserts: 2 | Coolant Through: No |
| Country of Origin: Israel | |
| Cutting Diameter (Decimal Inch): 1.0000 in | |
| Cutting Diameter: 1 | |
| Overall Length (Decimal Inch): 5.6000 | |
| Maximum Depth of Cut (Decimal Inch): 0.5600 | |
| Cutter Style: HM90 E90AD-15 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Shank Diameter (Inch): 1 | |
| Insert Holding Method: Screw | |
| Maximum Ramping Angle: 11.5 | |
| Series: Heli2000 | |
| Lead Angle: 90 | |
| Shank Length (Decimal Inch): 2.4500 | |
| Head Length (Decimal Inch): 3.1500 | |
| Tool Application: Milling | |
| Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 | |
| Complete Insert Compatibility: ADKT; HM90ADKW 1505; HM90ADKT; ADKR; ADMT; ADCT; HM90ADCT; ADCR | |
| Insert Compatibility: HM90 AD..1505; AD..1505.. | |
| UNSPSC Code: 27112803 | |
| Manufacturers Catalog Number: HM90 E90AD-D1.00-2W1.00XL | |
| Number Of Flutes: 2 | |
| Usable Length (Decimal Inch): 3.1100 | |
| Number Of Cutter Inserts: 2 | |
| Coolant Through: No | |
| Country of Origin: Israel |
| MSC# | 60841723 |
| Mfr# | 3102152 |
| Big Book# | 691 |
