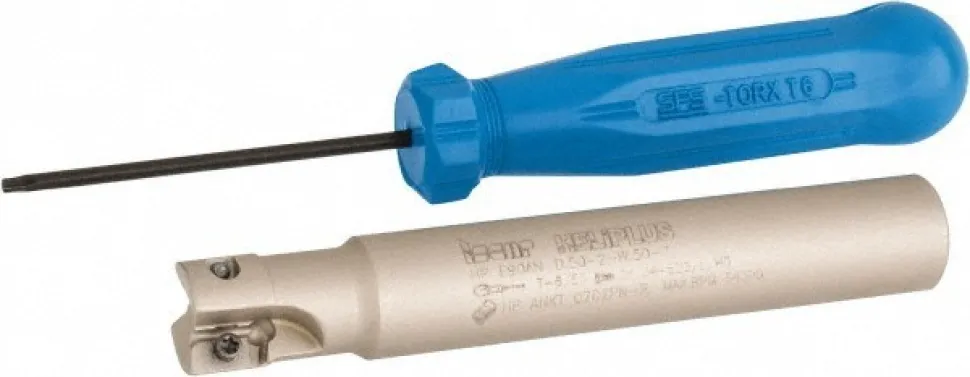

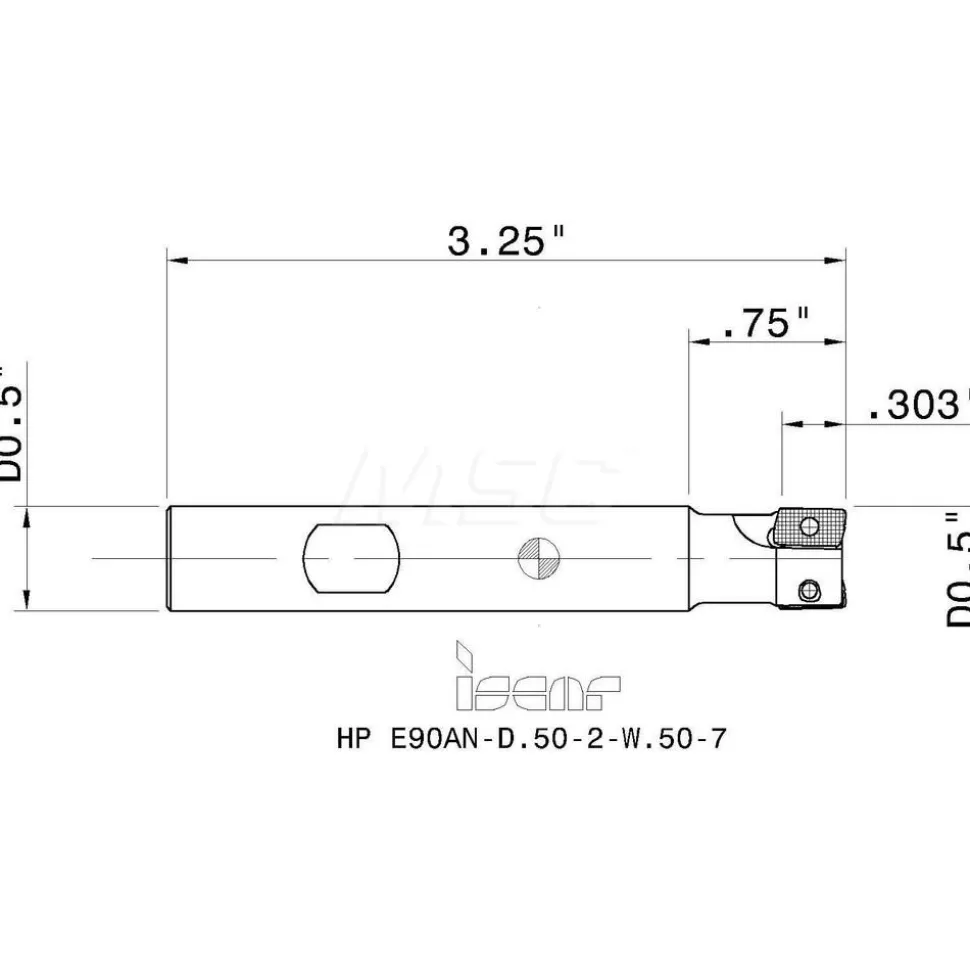

Indexable Square-Shoulder End Mill: HP E90AN-D.50-2-W.5-7, 1/2″ Cut Dia, 0.303″ Max Depth of Cut, 1/2″ Dia Weldon Flat Shank
130,99 $
Specifications
| Cutting Diameter (Decimal Inch): 0.5000 in | Cutting Diameter: 1/2 |
| Overall Length (Decimal Inch): 3.2500 | Overall Length (Inch): 3-1/4 |
| Maximum Depth of Cut (Decimal Inch): 0.3030 | Cutter Style: HP E90AN-07 |
| Shank Type: Weldon Flat | Shank Diameter (Decimal Inch): 0.5000 |
| Shank Diameter (Inch): 1/2 | Insert Holding Method: Screw |
| Series: Heliplus | Lead Angle: 90 |
| Shank Length (Inch): 2-1/2 | Shank Length (Decimal Inch): 2.5000 |
| Head Length (Decimal Inch): 0.7500 | Tool Application: Milling |
| Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 | Insert Compatibility: HP AN.. 0702.. |
| UNSPSC Code: 27112803 | Manufacturers Catalog Number: HP E90AN-D.50-2-W.50-7 |
| Number Of Flutes: 2 | Number Of Cutter Inserts: 2 |
| Coolant Through: No | Country of Origin: Israel |
| Cutting Diameter (Decimal Inch): 0.5000 in | |
| Cutting Diameter: 1/2 | |
| Overall Length (Decimal Inch): 3.2500 | |
| Overall Length (Inch): 3-1/4 | |
| Maximum Depth of Cut (Decimal Inch): 0.3030 | |
| Cutter Style: HP E90AN-07 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Decimal Inch): 0.5000 | |
| Shank Diameter (Inch): 1/2 | |
| Insert Holding Method: Screw | |
| Series: Heliplus | |
| Lead Angle: 90 | |
| Shank Length (Inch): 2-1/2 | |
| Shank Length (Decimal Inch): 2.5000 | |
| Head Length (Decimal Inch): 0.7500 | |
| Tool Application: Milling | |
| Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 | |
| Insert Compatibility: HP AN.. 0702.. | |
| UNSPSC Code: 27112803 | |
| Manufacturers Catalog Number: HP E90AN-D.50-2-W.50-7 | |
| Number Of Flutes: 2 | |
| Number Of Cutter Inserts: 2 | |
| Coolant Through: No | |
| Country of Origin: Israel |
| MSC# | 88542089 |
| Mfr# | 3103894 |
| Big Book# | 693 |
