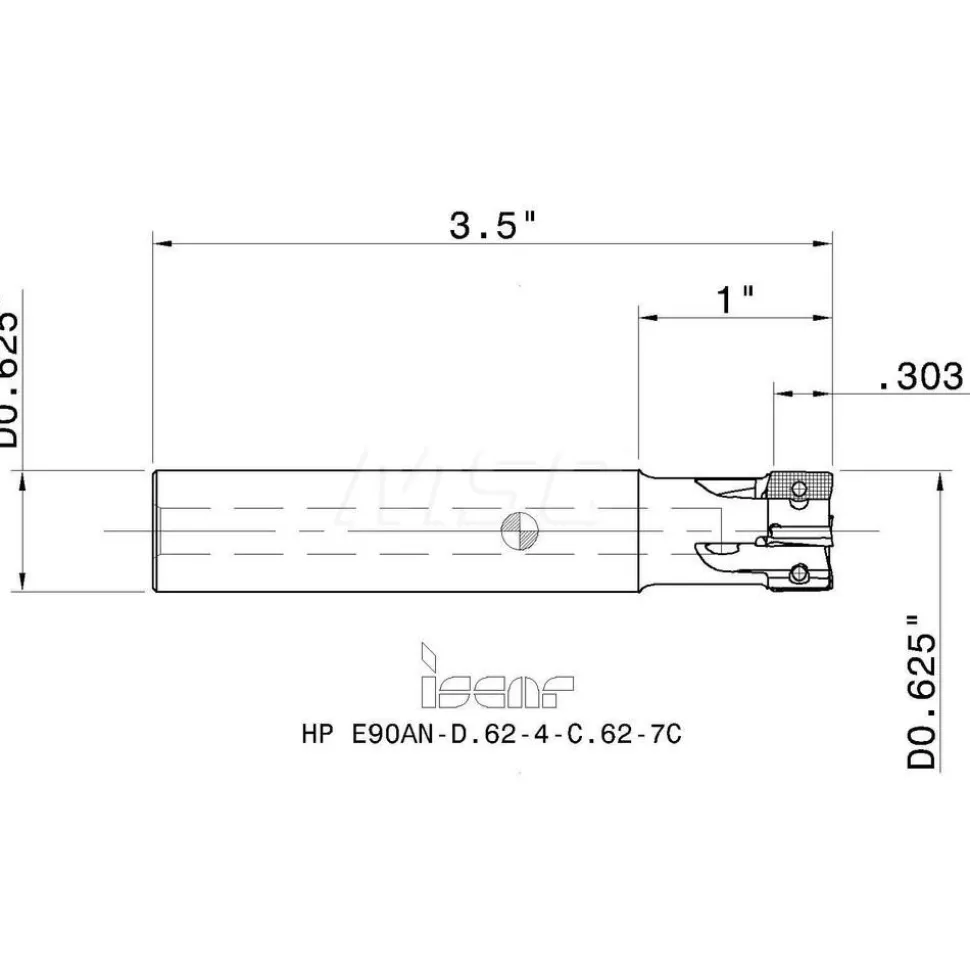

Indexable Square-Shoulder End Mill: HP E90AN-D.62-4-C.62-7, 5/8″ Cut Dia, 0.303″ Max Depth of Cut, 5/8″ Dia Cylindrical Shank
Original price was: 404,00 $.132,99 $Current price is: 132,99 $.
Specifications
| Cutting Diameter (Decimal Inch): 0.6250 in | Cutting Diameter: 5/8 |
| Overall Length (Decimal Inch): 3.5000 | Overall Length (Inch): 3-1/2 |
| Maximum Depth of Cut (Decimal Inch): 0.3030 | Cutter Style: HP E90AN-07 |
| Shank Type: Cylindrical | Shank Diameter (Decimal Inch): 0.6250 |
| Shank Diameter (Inch): 5/8 | Insert Holding Method: Screw |
| Series: Heliplus | Lead Angle: 90 |
| Shank Length (Inch): 2-1/2 | Shank Length (Decimal Inch): 2.5000 |
| Head Length (Decimal Inch): 1.0000 | Tool Application: Milling |
| Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 | Insert Compatibility: HP AN.. 0702.. |
| UNSPSC Code: 27112803 | Manufacturers Catalog Number: HP E90AN-D.62-4-C.62-7C |
| Number Of Flutes: 4 | Number Of Cutter Inserts: 4 |
| Coolant Through: Yes | Country of Origin: Israel |
| Cutting Diameter (Decimal Inch): 0.6250 in | |
| Cutting Diameter: 5/8 | |
| Overall Length (Decimal Inch): 3.5000 | |
| Overall Length (Inch): 3-1/2 | |
| Maximum Depth of Cut (Decimal Inch): 0.3030 | |
| Cutter Style: HP E90AN-07 | |
| Shank Type: Cylindrical | |
| Shank Diameter (Decimal Inch): 0.6250 | |
| Shank Diameter (Inch): 5/8 | |
| Insert Holding Method: Screw | |
| Series: Heliplus | |
| Lead Angle: 90 | |
| Shank Length (Inch): 2-1/2 | |
| Shank Length (Decimal Inch): 2.5000 | |
| Head Length (Decimal Inch): 1.0000 | |
| Tool Application: Milling | |
| Standards: ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 | |
| Insert Compatibility: HP AN.. 0702.. | |
| UNSPSC Code: 27112803 | |
| Manufacturers Catalog Number: HP E90AN-D.62-4-C.62-7C | |
| Number Of Flutes: 4 | |
| Number Of Cutter Inserts: 4 | |
| Coolant Through: Yes | |
| Country of Origin: Israel |
| MSC# | 84270339 |
| Mfr# | 3103624 |
| Big Book# | 693 |
